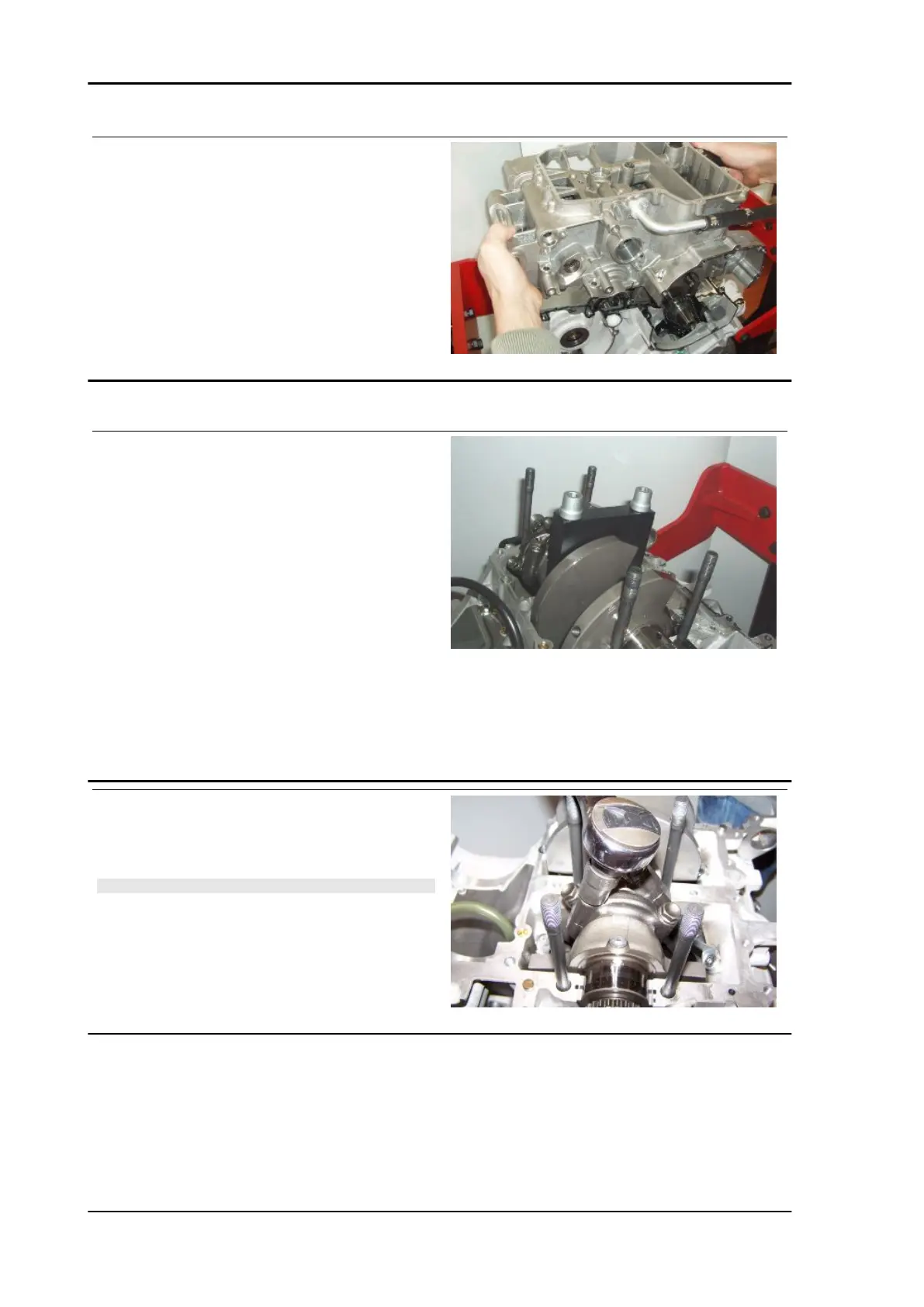

Separate the crankcases, removing
the lower part
•
Collect the three dowel pins.
•
The crankshaft, the pistons and the
connecting rods remain in the upper
crankcase.
Removing connecting rods - pistons
•
Remove both heads.
•
Open the crankcases.
•
Install the tool that keeps the crank-
shaft in position.
Specific tooling
020857Y Crankshaft support U-bolt
See also
Front head removal
Rear head removal
•
Unscrew and remove the two connect-
ing rod screws.
•
Remove the connecting rod cap.
NOTE
MARK THE COMPONENTS TO PREVENT INCORRECT RE-
FITTING.
Engine TUONO V4 R a-PRC ABS
ENG - 346
