ABS CONTROL UNIT
Pos. Description Type Quantity Torque Notes
1 Oil tube screws M10x1 4 23-26 Nm (16.96-19.18
lb ft)
-
2 Control unit support screws M6 2 6.8+/-1 Nm (5.01
+/-0.74 lb ft)
-
Back side
EXHAUST

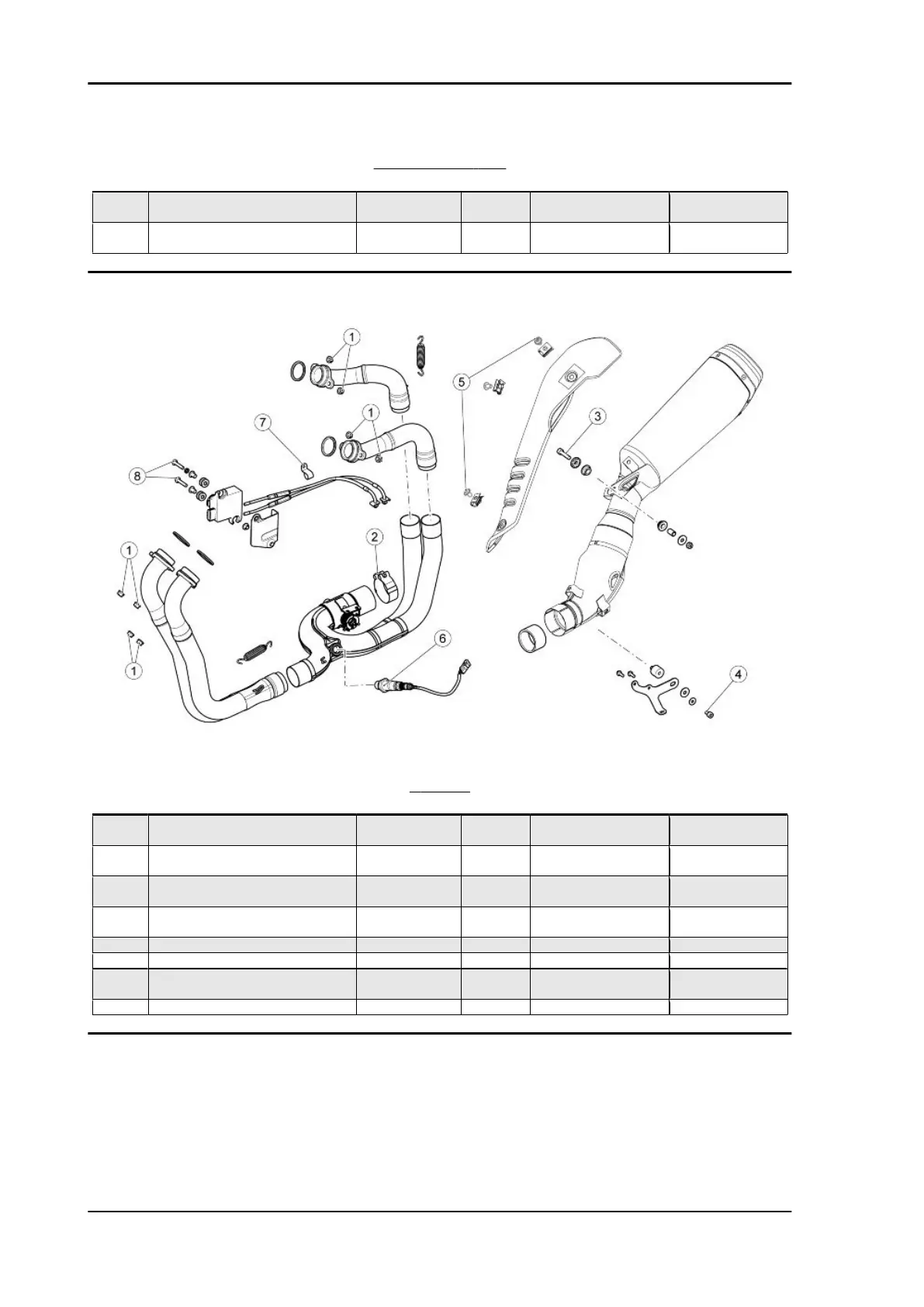

pos. Description Type Quantity Torque Notes
1 Exhaust manifold flange fastening
nuts
M7 8 13 Nm (9.59 lb ft) -
2 Silencer clamp fixing screw - central
manifold
M6 1 10 Nm (7.38 lb ft) -
3 Screw used to secure the silencer to
the RH footrest support
M8 1 25 Nm (18.44 lb ft) -
4 Screw fastening silencer to central
lower fairing bracket
M8 1 20 Nm (14.75 lbf ft) -
5 Cosmetic silencer shield fixing screw M5 2 5 Nm (3.69 lb ft) -
6 Lambda probe fastener M18x1.5 1 38 Nm (28.03 lb ft) -
7 Fastener screw for cable grommet
for exhaust valve cables
M6 1 10 Nm (7.38 lb ft) -
8 Exhaust valve actuator fixing screws M6 2 10 Nm (7.38 lb ft) -
Characteristics TUONO V4 R a-PRC ABS
CHAR - 32
