APRILIA TUONO V4 R a-PRC ABS User Manual

Removing the
oil sump
Balancing
countershaft removal
Crankcase opening
•

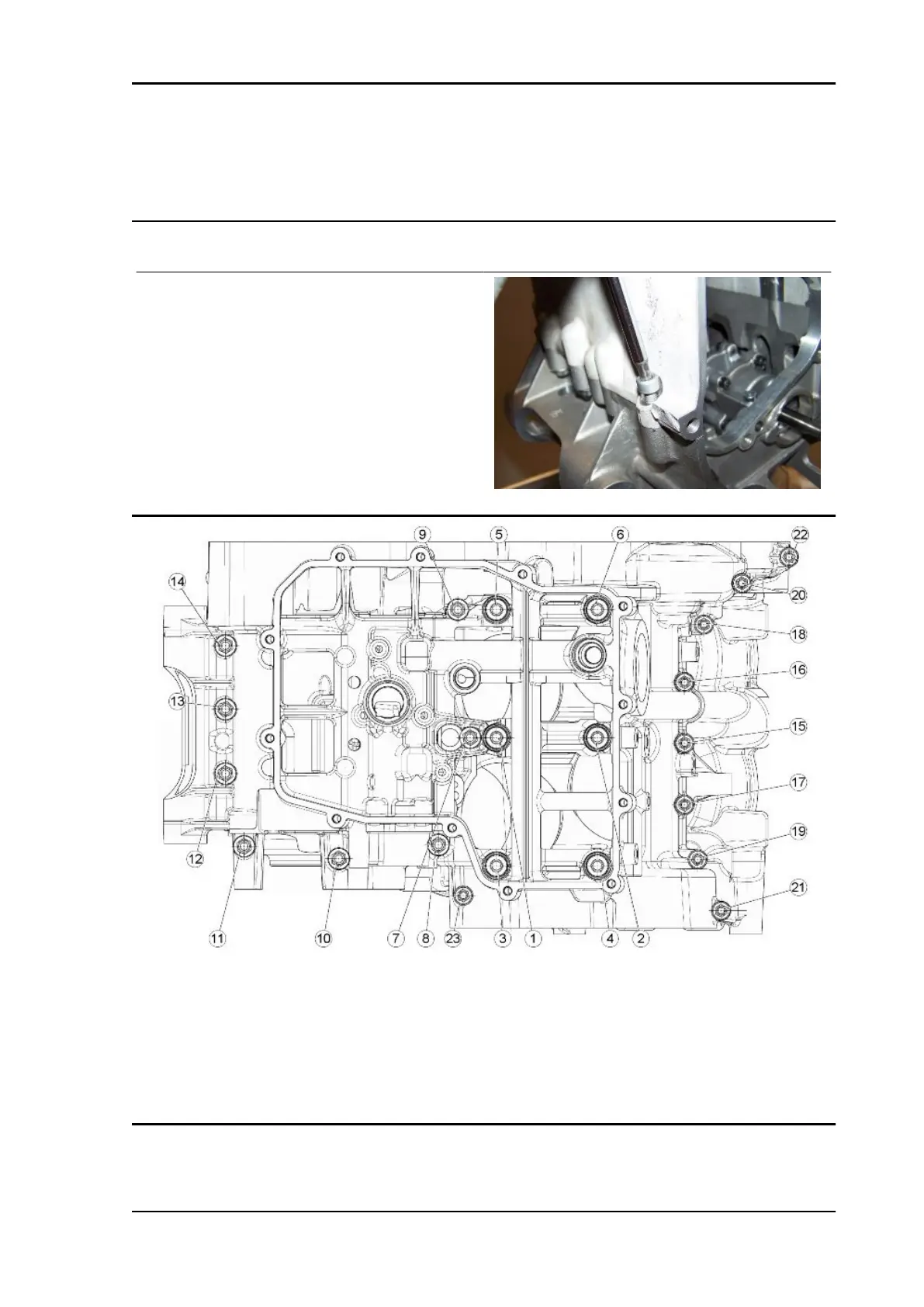

Position the engine with the heads fac-
ing upward, unscrew and remove the
screw (24).
•
Turn the engine with the heads facing downward and loosen the screws in the following
order: 23 - 22 - 21 - 20 - 19 - 18 - 17 - 16 - 15 - 14 - 13 - 12 - 11 - 10 - 9 - 8 - 7.
•
After loosening all screws, remove them in order indicated above.
•
Loosen the six nuts on the stud bolts, proceeding in the following order 6 - 5 - 4 - 3 - 2 - 1.
•
After loosening all nuts, remove them in order indicated above.
TUONO V4 R a-PRC ABS Engine
ENG - 345
