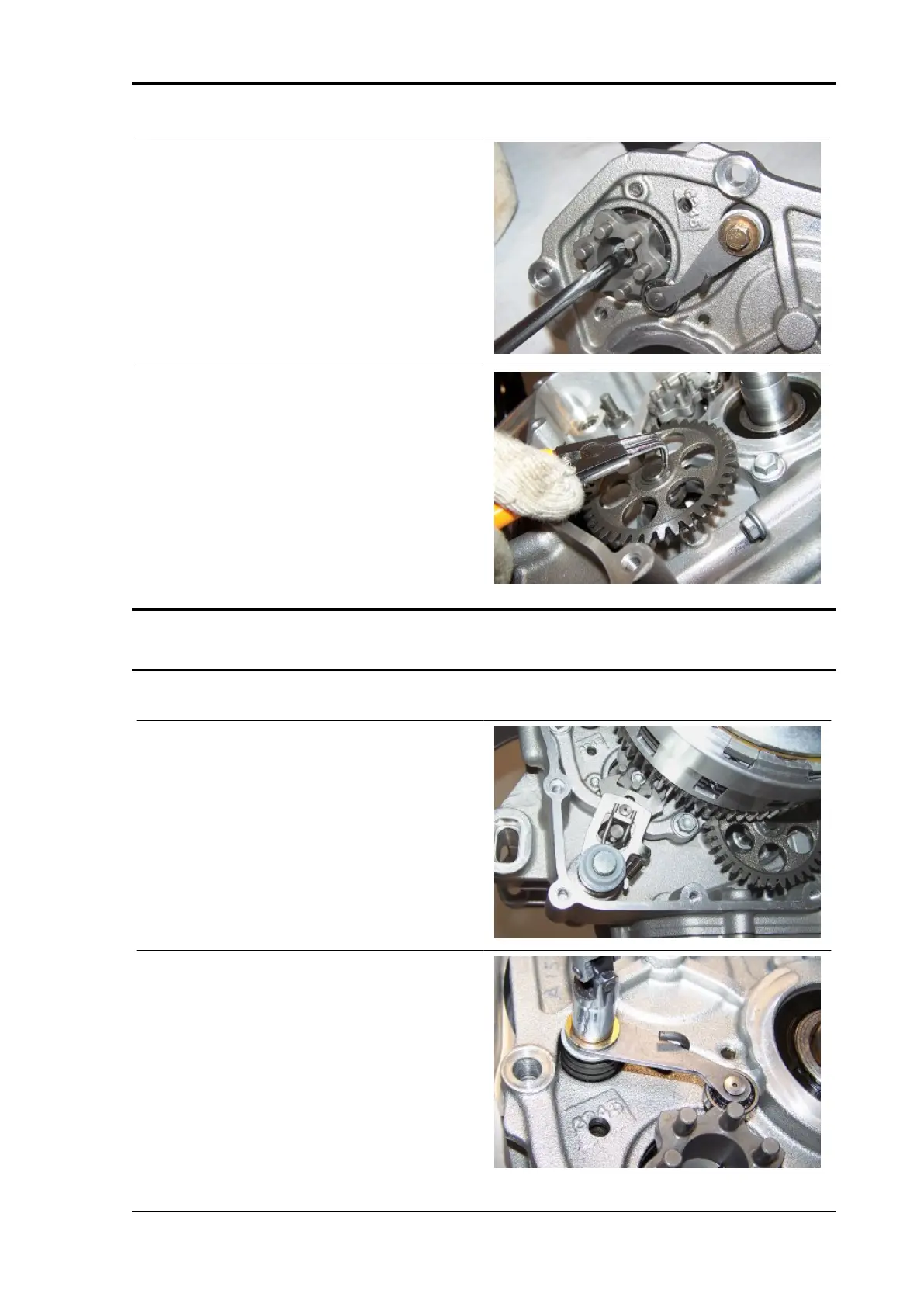

Tighten the selector drum screw.
•
Insert the driving pin on the oil pump
shaft.
•
Install the water/oil pump control gear.
•
Insert the Seeger ring.
•
Install the gear sensor, making the pin
coincide with the slot on the desmo-
dromic control rod.
Gear selector
Removing the gear selector
•
Drain the engine oil.
•
Remove the clutch cover.
•
Working from the clutch side, remove
the selector control shaft.
•
Remove the gear locking pawl and re-
trieve the washer and the spring.
TUONO V4 R a-PRC ABS Engine
ENG - 269
