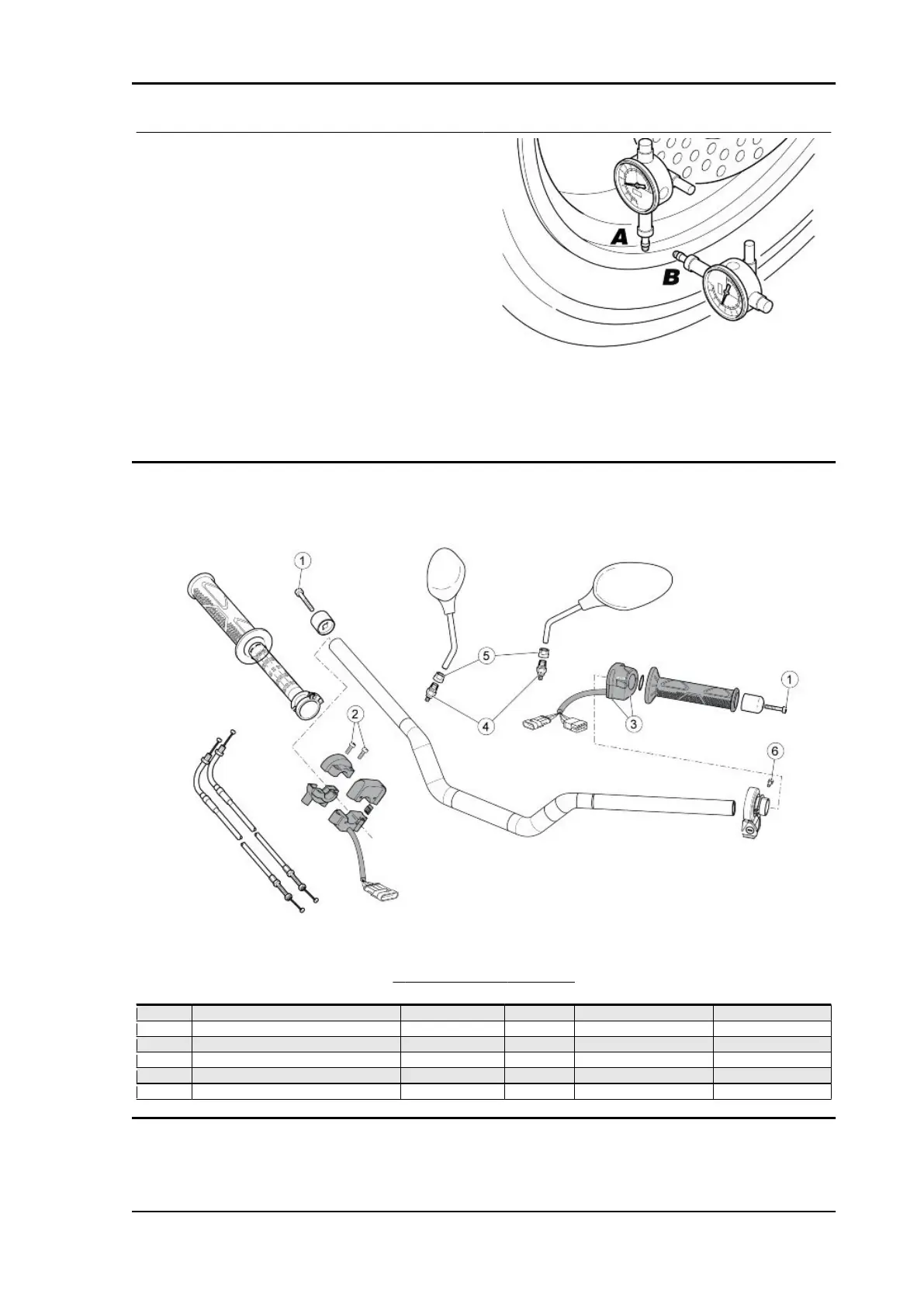

Using a dial gauge, check that the ra-
dial (A) and the axial (B) eccentricities
of the rim do not exceed the limit value.
An excessive eccentricity is usually
caused by worn or damaged bearings.
Replace the rim if, after replacing the
bearings, the value is not within the
specified limit.
Characteristic
Maximum radial and axial eccentricity:
0.8 mm (0.031 in)
Handlebar
HANDLEBAR AND CONTROLS
pos. Description Type Quantity Torque Notes
1 Anti-vibration counterweight fastener M6 1 10 Nm (7.37 lb ft) -
2 Throttle control fixing screw M5 2 6 Nm (4.42 lbf ft) -
3 Left light switch M5 2 2 Nm (1.47 lbf ft) -
4 Mirror supporting pin M10 2 40 Nm (29.50 lb ft) -
5 Mirror supporting nut M16x1 2 40 Nm (29.50 lb ft) -
6 T.C. control fastening screw M4 1 2 Nm (1.47 lbf ft) -
TUONO V4 R a-PRC ABS Suspensions
SUSP - 395
