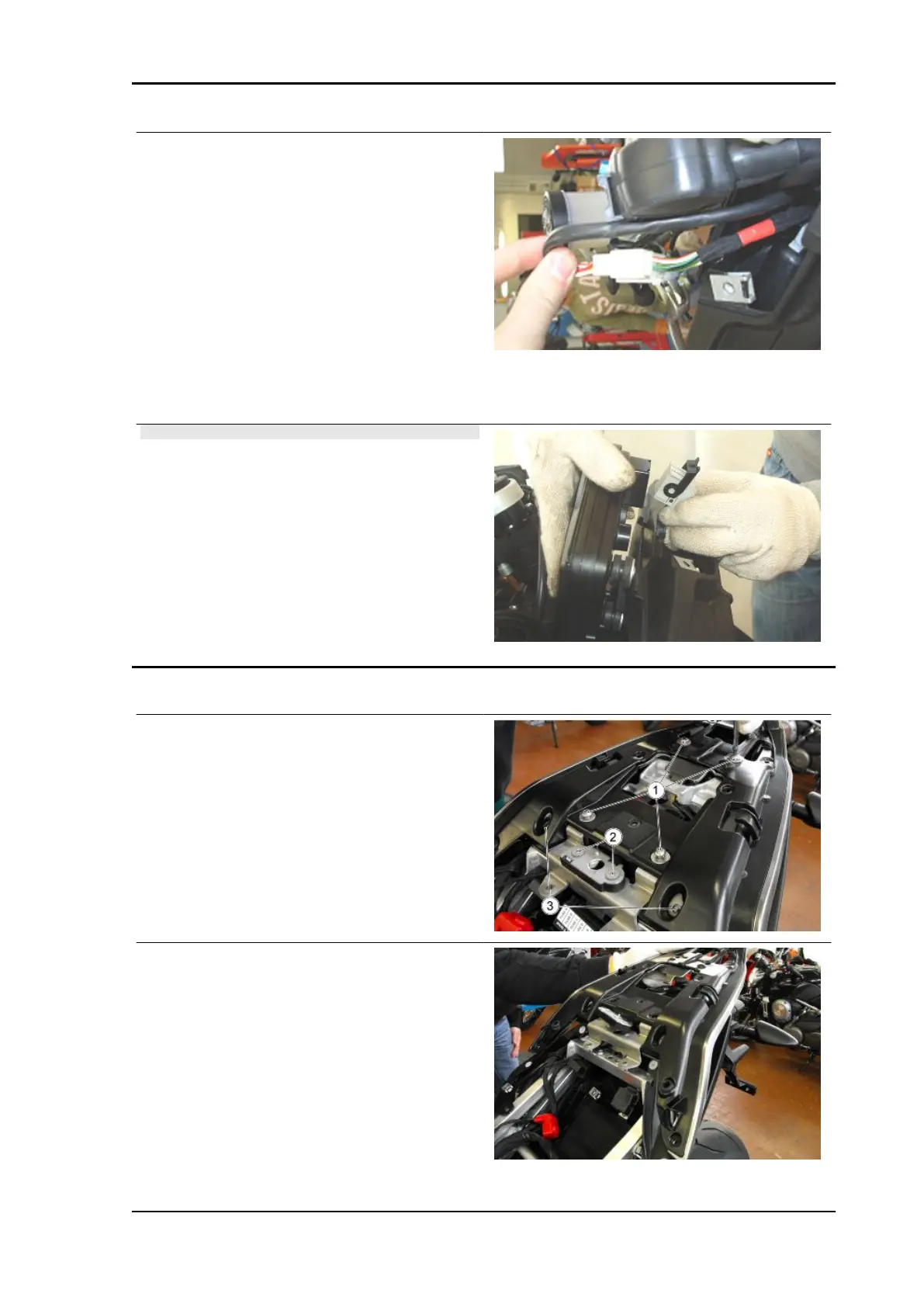

Join the remaining connectors and ar-
range the cable carefully in the space
available within the arch brace. Note
that there are two pairs of connectors
which may be connected incorrectly.
The male connector on the cable with the red strip
must be connected to the female connector on the
longer cable.
•
Reconnect the instrument panel con-
nector
NOTE
WHEN REASSEMBLING THE CONNECTORS, THE SLIDES
MUST SLIDE FREELY UP TO THE LIMIT STOP, THUS FA-
CILITATING THE CONNECTOR'S INSERTION. THE CATCH
SHOULD SNAP INTO PLACE ONCE THE LIMIT STOP IS
REACHED.
Tail guard
•
Remove the saddle and the passenger
saddle.
•
Undo and remove the four screws (1).
•
Undo the two screws of the saddle
block (2) and the two screws (3).
•
Remove the upper part of the tail fair-
ing.
See also
TUONO V4 R a-PRC ABS Bodywork
BODYW - 515
