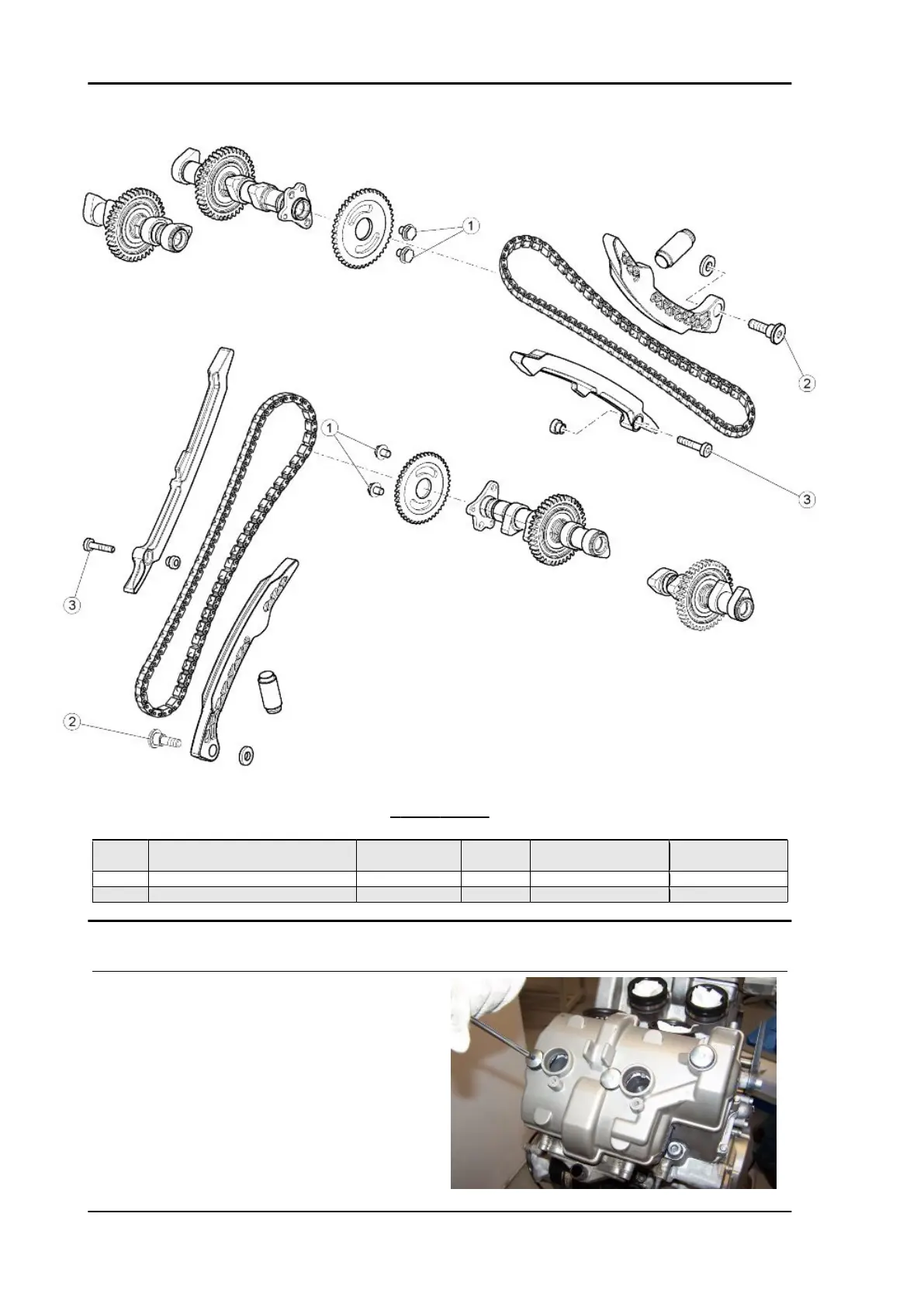

TIMING SYSTEM
pos. Description Type Quantity Torque Notes
1 Screw fastening the timing system
gear on the intake shaft
M8 4 30 Nm (22.13 lb ft) Loct. 243
2 Shoe fastening screws M8 2 20 Nm (14.75 lb ft) Loct. 243
3 Skid fastener screws M6x18 2 10 Nm (7.38 lb ft) Loct. 243
Head cover removal
•
Unscrew and remove the three screws
with rubber washers.
•
Remove the head cover together with
the sealing gasket.
Engine TUONO V4 R a-PRC ABS
ENG - 294
