Instrument panel
•

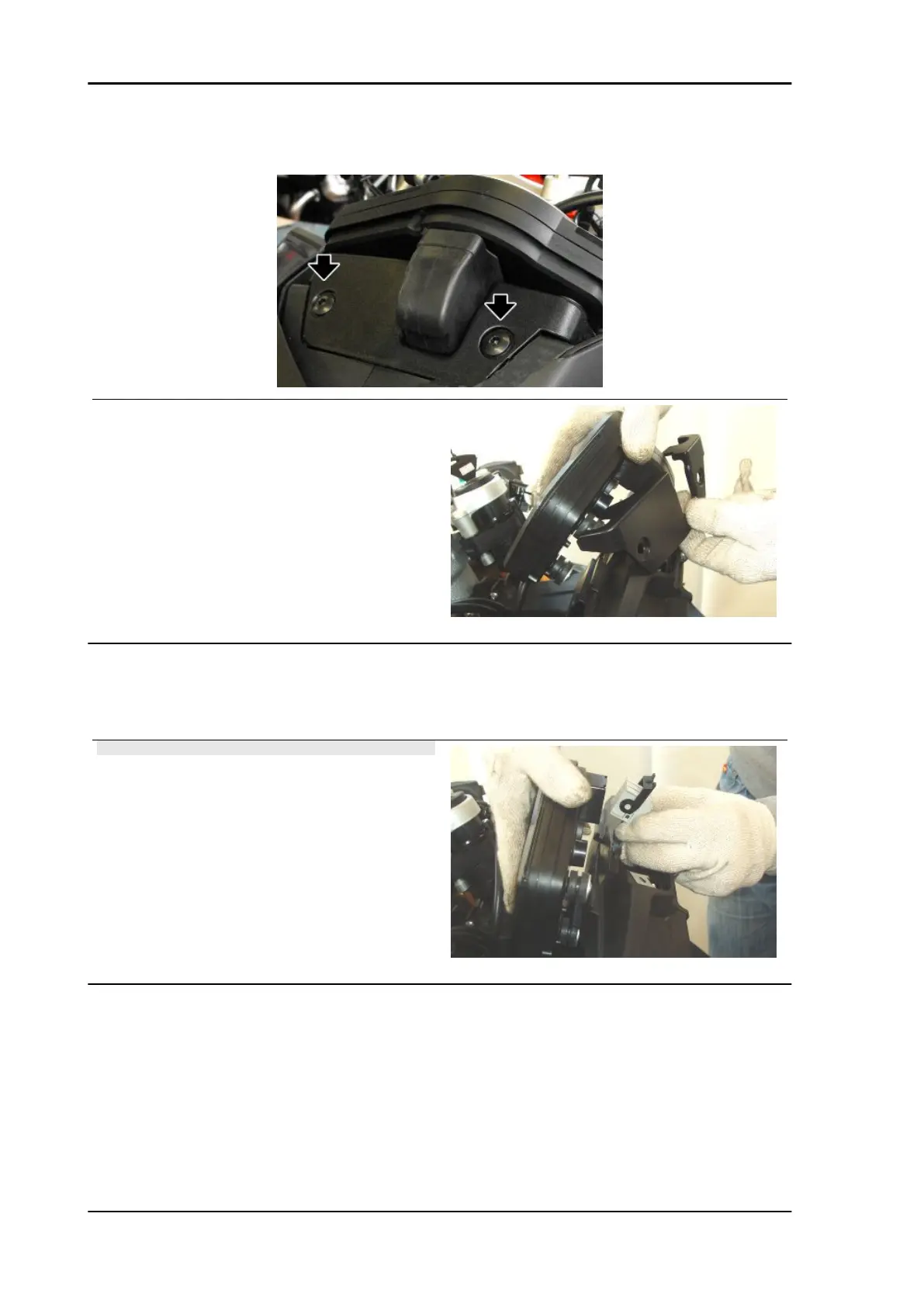

Remove the instrument panel mount-
ing cover.
•
Move the instrument panel, removing
the rubber rings from the seats on the
support.
•
Rotate the instrument panel connector retainer lever.
•
Remove the connector.
•
Remove the instrument panel.
NOTE
WHEN REASSEMBLING THE CONNECTORS, THE SLIDES
MUST SLIDE FREELY UP TO THE LIMIT STOP, THUS FA-
CILITATING THE CONNECTOR'S INSERTION. THE CATCH
SHOULD SNAP INTO PLACE ONCE THE LIMIT STOP IS
REACHED.
