Fit the washer on the screw
•
Tighten the screw.
•
Install the rear shock absorber and the
linkages.
•
Fit the rear brake calliper plate.
•
Fasten the two pipe grommets on the
swingarm
•
Install the rear wheel and the exhaust system.
•
Fit the pinion casing.
•
Adjust the chain tension
Drive chain
inspection

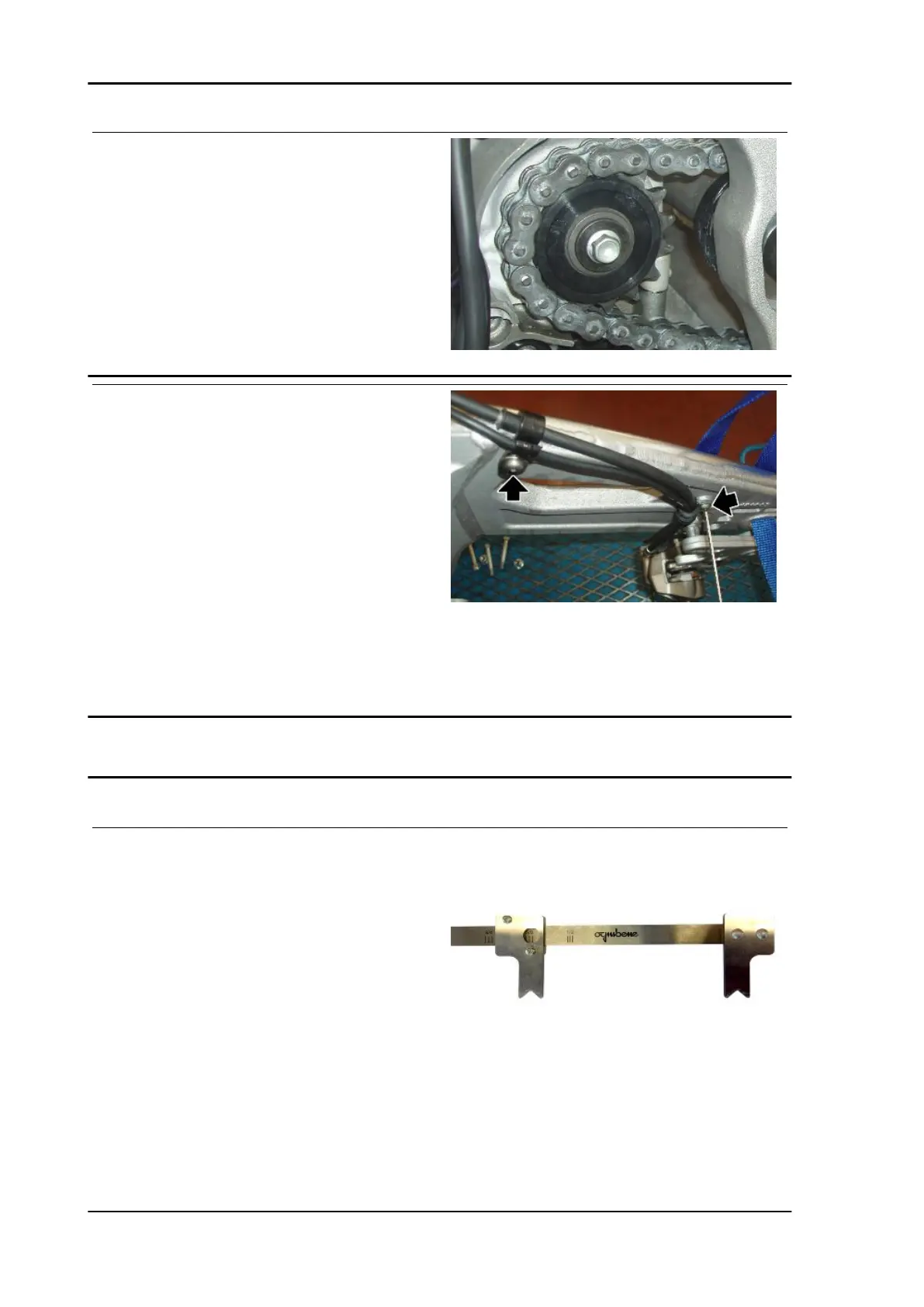

To check the wear of the drive chain, use the chain
checking instrument, P/N: Ognibene -
529510001.
The different chain pitches which may be checked
with the instrument are indicated on the instrument
itself. There are three reference markings for each
chain pitch indicated on the instrument. These in-
dicate (from right to left) the correct measurements
for:
1. New chain with length near nominal value;
2. Chain with chain stretch of 1.5%;
Chassis TUONO V4 R a-PRC ABS
CHAS - 436
