O-Ring on the cap.

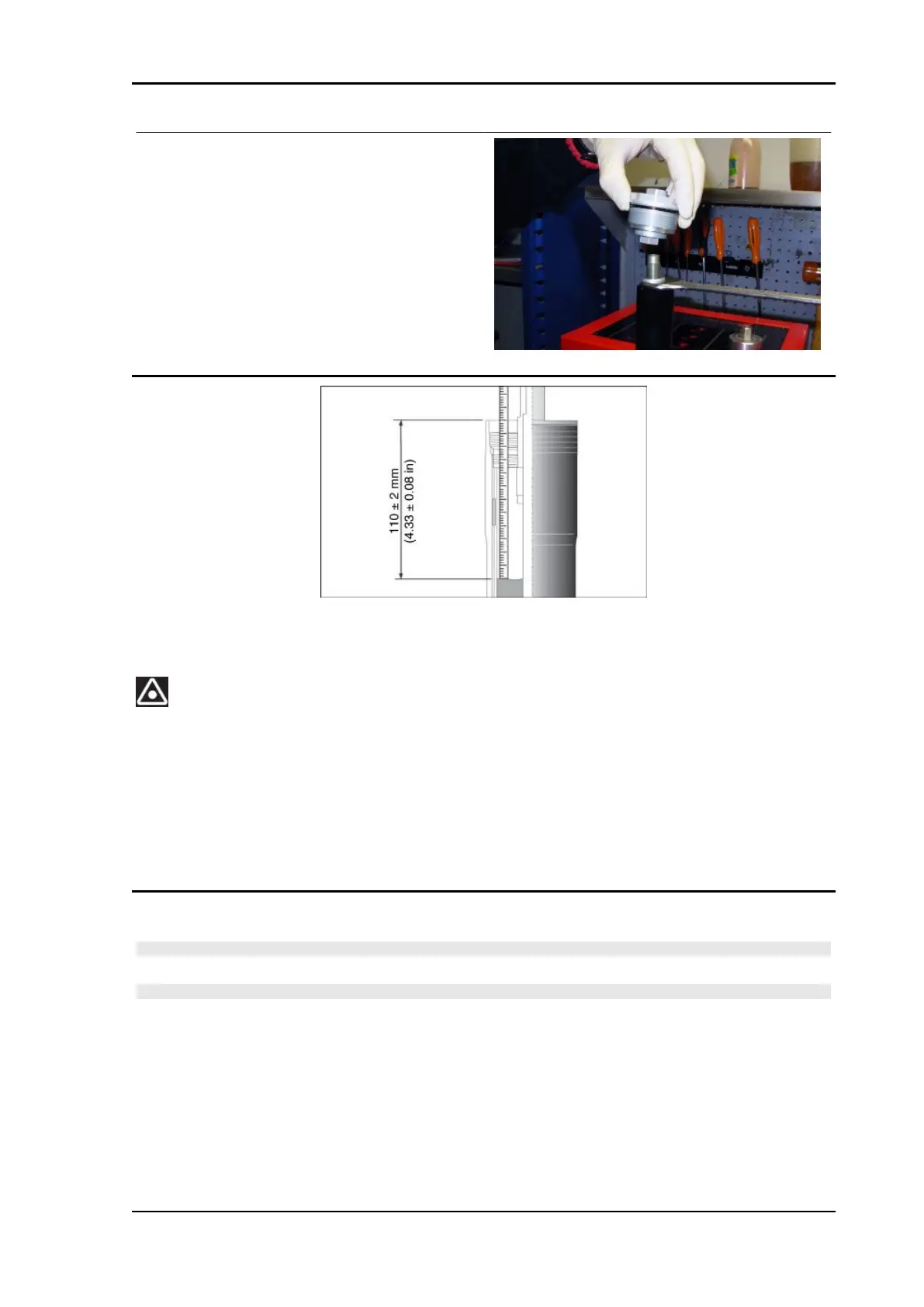

Oil level: 110 +/- 2 mm (4.33 - 0.08 in) (from the sleeve edge, without a spring and with preload
pipe).
THE SLEEVE MUST BE PERFECTLY UPRIGHT IN ORDER TO MEASURE THE CORRECT OIL
LEVEL. THE OIL LEVEL MUST BE THE SAME IN BOTH STANCHIONS.
Characteristic
Fork oil
427 +/- 5 cm³ (26.06 +/- 0.30 cu.in) (right stem)
430 +/- 5 cm³ (26.24 +/- 0.30 cu.in) (left stem)
Reassembling the fork
NOTE
THE FOLLOWING OPERATIONS REFER TO THE SACHS FORKS.
NOTE
THE OPERATIONS DESCRIBED BELOW ARE VALID FOR BOTH STEMS.
TUONO V4 R a-PRC ABS Suspensions
SUSP - 405
