APRILIA TUONO V4 R a-PRC ABS User Manual

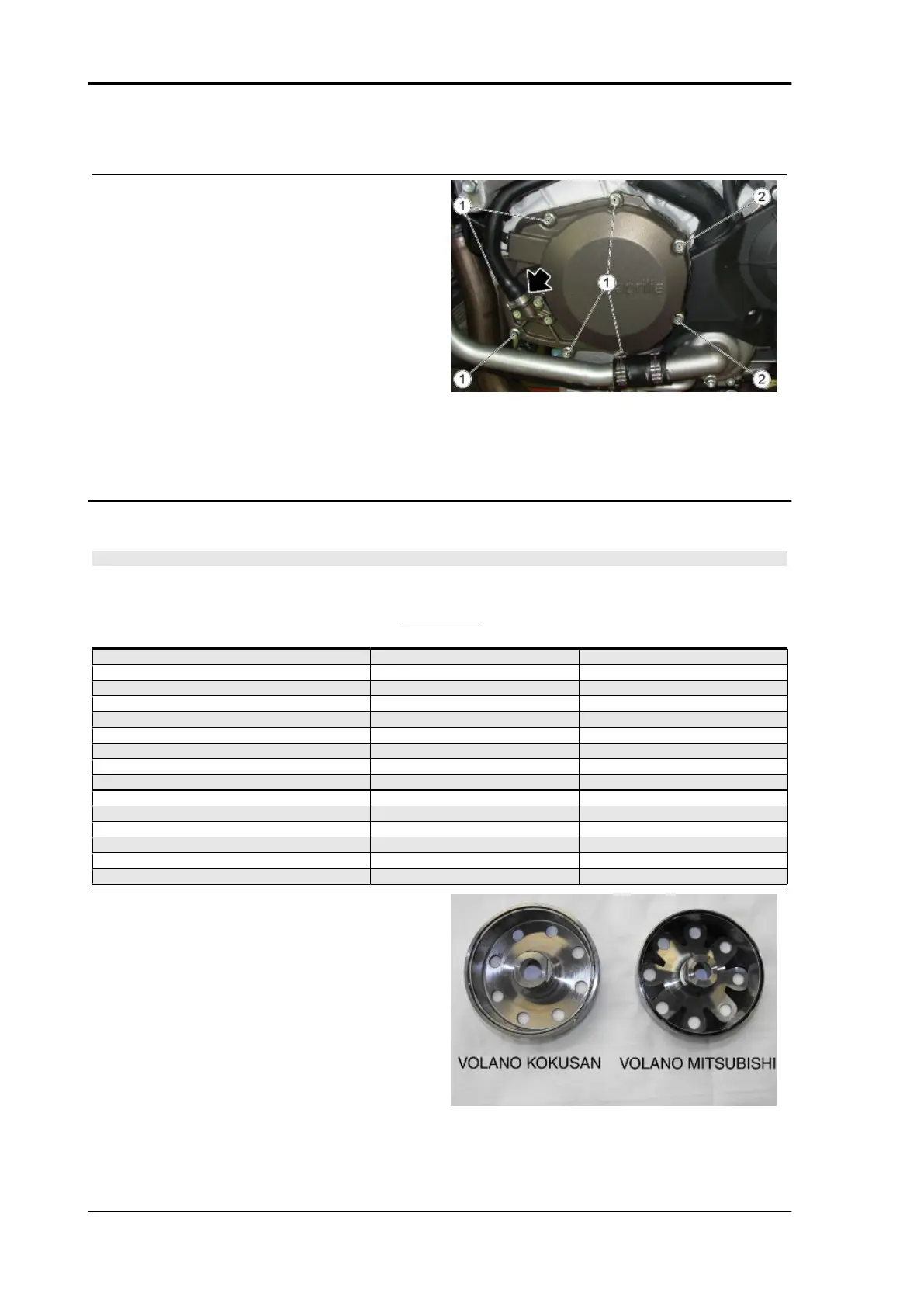

Removing the flywheel cover
•
Release the clamp and detach the
Blow-by pipe.
•
Unscrew and remove the five screws
(1).
•
Unscrew and remove the two screws
(2).
•
Mark the screws (1 - 2) that have dif-
ferent lengths.
•
Remove the cover together with the
stator and retrieve the two centring
dowels.
Magneto flywheel removal
NOTE
IN THE EVENT OF REPLACEMENT REFER TO THE FOLLOWING TABLE
FLYWHEELS
Type From engine No. To engine No.
Kokusan 8923 8973
Mitsubishi 8977 9007
Kokusan 9008 9032
Mitsubishi 9035 10111
Kokusan 10112 10136
Mitsubishi 10137 10319
Mitsubishi 10321 10479
Kokusan 10480 10494
Mitsubishi 10495 10506
Kokusan 10507 10513
Mitsubishi 10514 10671
Kokusan 10672 10758
Mitsubishi 10759 10808
Mitsubishi 10812 10823
Kokusan 10852 Onwards
THERE ARE TWO DIFFERENT TYPES OF FLY-
WHEEL, MITSUBISHI OR KOKUSAN, IN THIS
ENGINE. THE TWO FLYWHEELS CANNOT BE
INTERCHANGED AS WELL AS THE TOOLS
USED FOR THEIR LOCKING AND REMOVAL.
TOOLS FOR KOKUSAN FLYWHEEL:
•
Flywheel extractor cod. 020913Y
•
Flywheel lock cod. 020914Y
TOOLS FOR MITSUBISHI FLYWHEEL
•
Flywheel extractor cod. 020847Y
Engine TUONO V4 R a-PRC ABS
ENG - 274
