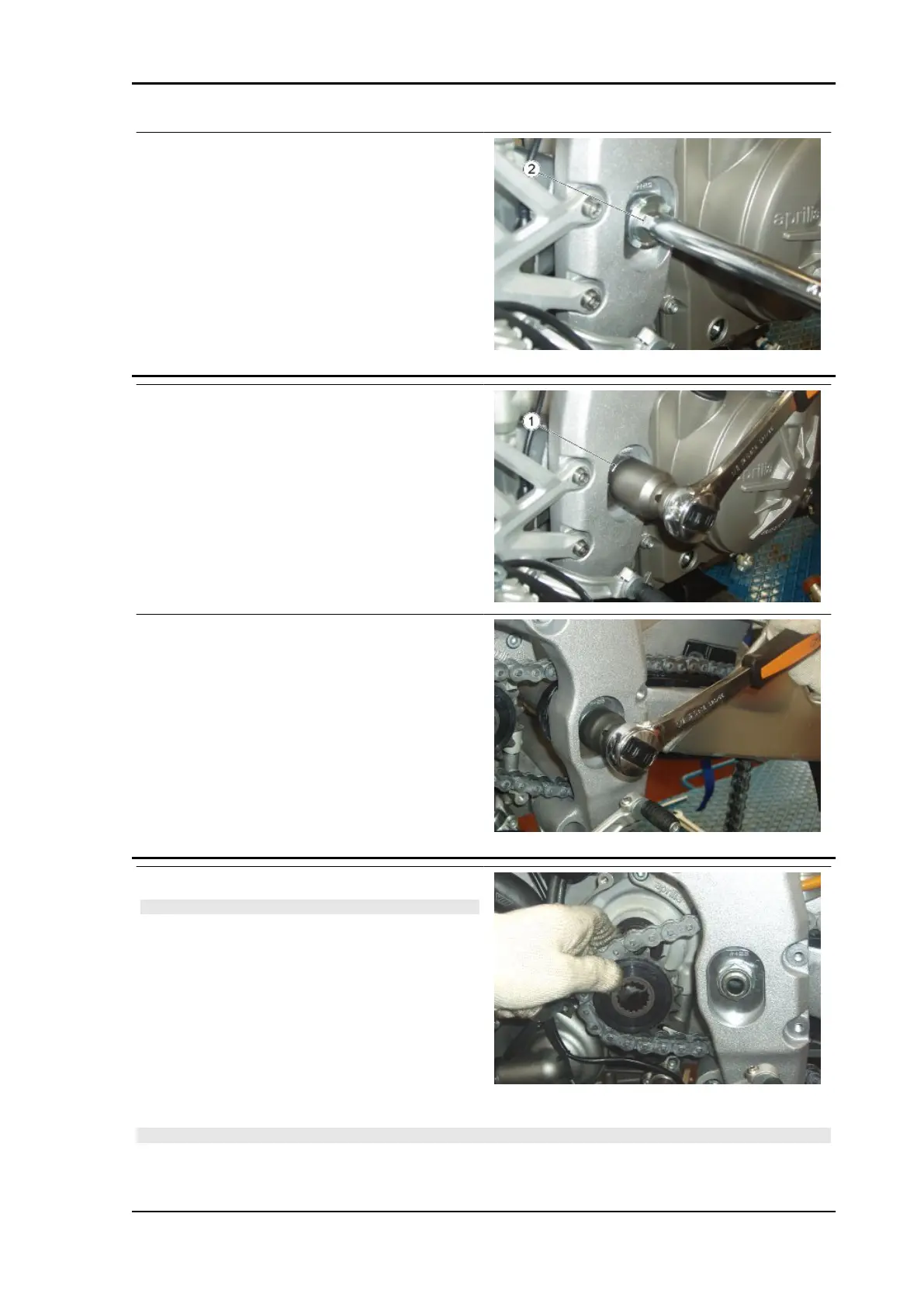

Working from the right hand side of the
vehicle, turn the swingarm pin (2)
clockwise. This turns the adjustment
bushing (3), driving the swingarm in
until fully seated.
•
Tighten the locking ring nut (1).
•
Screw the nut.
•
Refit the chain on the drive pinion
CAUTION
APPLY LOCTITE ANTI-SEIZE ON THE INTERNAL TOOTH-
ING OF THE TRANSMISSION PINION.
•
Fit the pinion and the chain on the shaft.
CAUTION
APPLY LOCTITE 243 ON THE SCREW THREAD.
TUONO V4 R a-PRC ABS Chassis
CHAS - 435
