SADDLE

pos. Description Type Quantity Torque Notes

1 Rider saddle fixing screw M5 2 6 Nm (4.43 lb ft) -

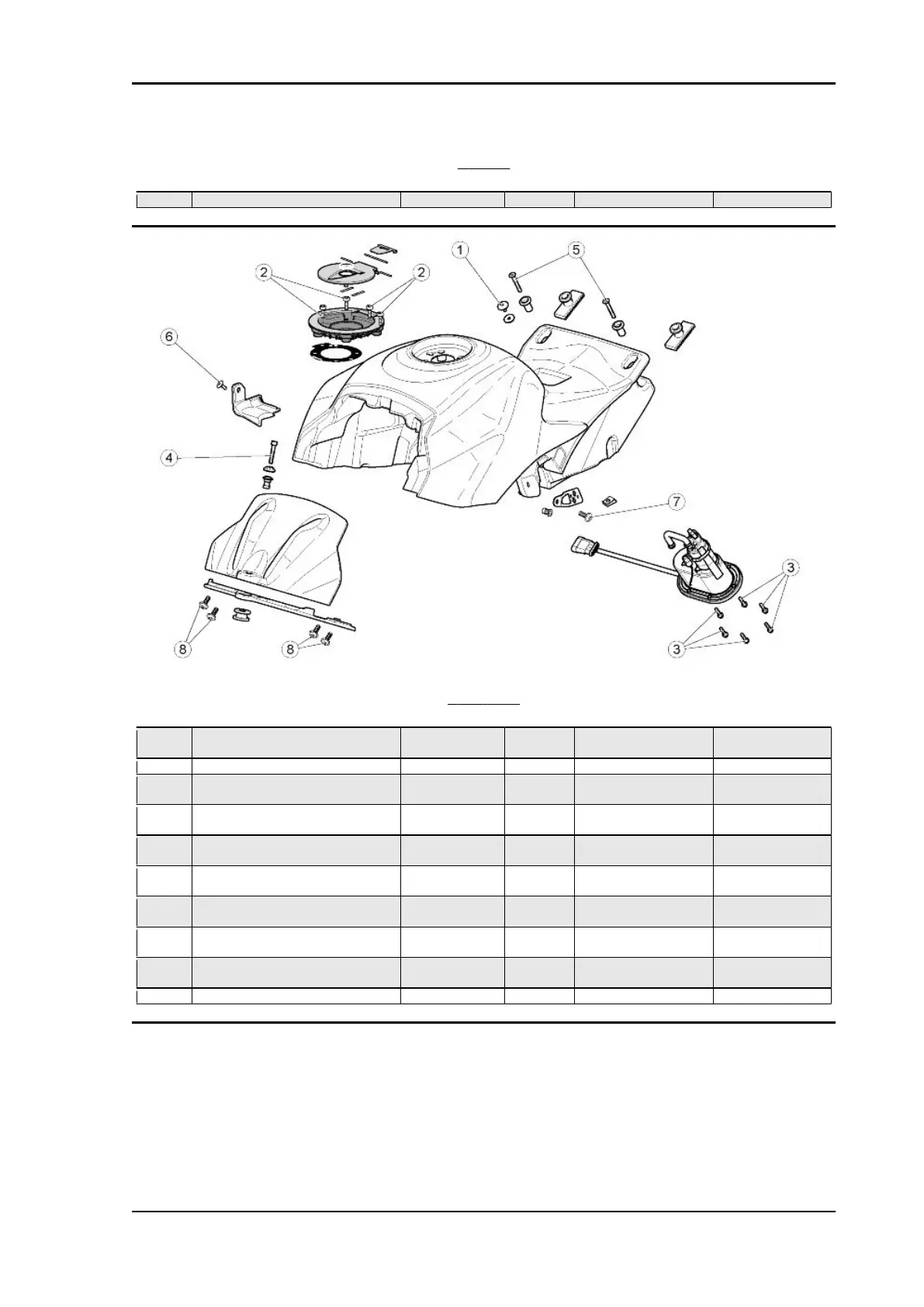

FUEL TANK

pos. Description Type Quantity Torque Notes

1 Special screw for fastening the rid-

er's saddle to the fuel tank

M6 1 4 Nm (2.95 lb ft) -

2 Filler to tank retaining screws M5 4 4 Nm (2.95 lb ft) -

3 Screws fixing the fuel pump flange to

the tank

M5 8 3 Nm (2.21 lb ft) -

4 Front screws fastening the tank to

the chassis

M6 1 8 Nm (5.9 lb ft) -

5 Rear screws fastening the tank to the

rear chassis

M6 2 7 Nm (5.16 lb ft) -

6 Screws fastening plastic fuel pipe

mounting

M5 1 2.5 Nm (1.84 lb ft) -

7 Left fairing mounting bracket fixing

screws

M5 1 3 Nm (2.21 lb ft) -

8 Screws fastening structural tank

mounting to tank

M6 4 3 Nm (2.21 lbf ft) -

- Central fuel tank cover retaining

screw

M4 1 0,5 Nm (0.37 lb ft) -

- Fuel tank breather couplings M7 2 3 Nm (2.21 lb ft) -

TUONO V4 R a-PRC ABS Characteristics

CHAR - 25
