Installing the clutch cover

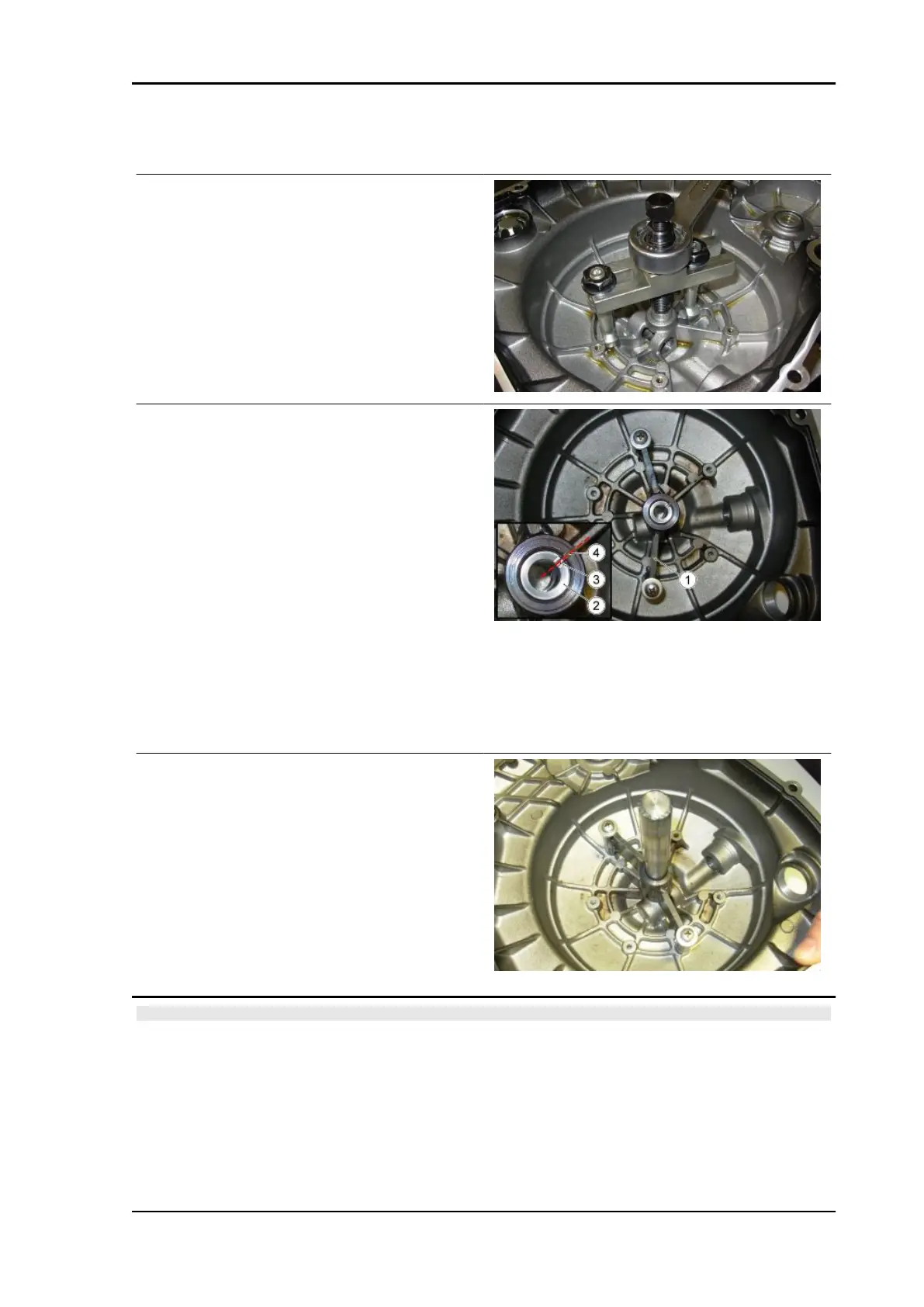

REMOVING THE CLUTCH CONTROL PIN
BUSHING
•
Before carrying out the removal of the
bushing, it is necessary to thread the
inside to allow the extractor to tighten
sufficiently.
INSTALLING THE CLUTCH CONTROL PIN
BUSHING
•
Before carrying out the installation of
the bushing, it is necessary to warm up
the cover.
•
Position the guide (1) to insert the
bushing (2) as indicated in the figure.
•
Insert the bushing so that the process-
ing notch (3) is aligned with the notch
on the guide (4).
Specific tooling
020926Y Tool for fitting clutch bushing
•
Then insert the tool to push the bushing
into the seat until it stops.
NOTE
IN THE EVENT OF SHAFT OR OIL SEAL SUBSTITUTION, CHECK THE COUPLING DIAMETER
FIRST.
TUONO V4 R a-PRC ABS Engine
ENG - 291
