Install the intake and exhaust camshafts on the front head, bearing in mind that:
the exhaust camshaft gear tooth (indicated with a dot) is meshed with the trough of the intake camshaft
gear (indicated with two dots).
CLEAN THOROUGHLY THE SEATS OF THE GEAR RETAINER SCREWS, ON THE INTAKE CAM-
SHAFT.
•

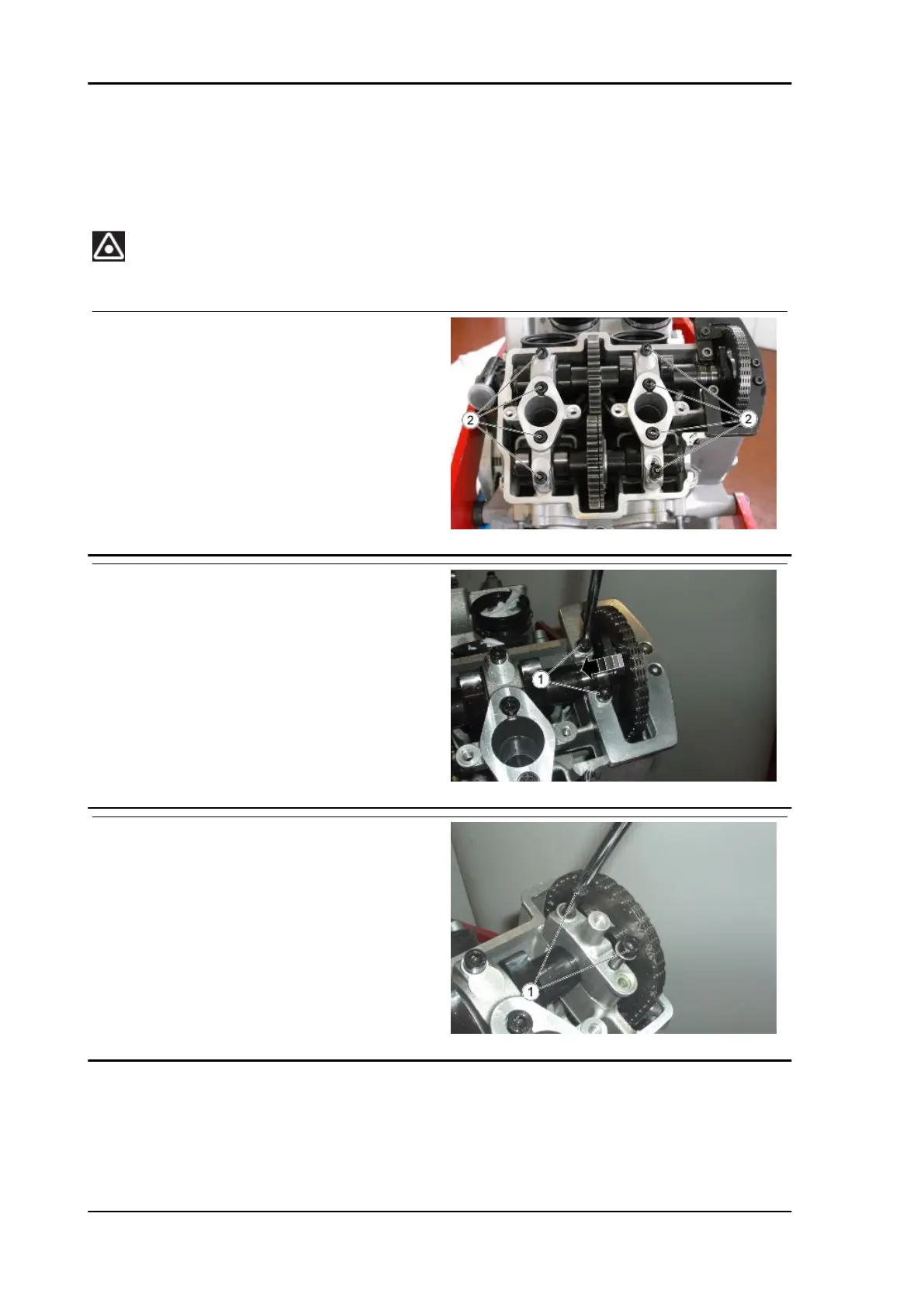

Fit the U bolts with the nine O rings and
locator pins.
•
Fit the new washers under the screws
(2) near the spark plug holes only.
•
Tighten the seven screws (2) operating
in stages and diagonally.
•
Do not fit the eighth screw (2 - fastening
the oil pipe) yet.
•
Move the gear from the mounting tool
to the camshaft.
•
Unscrew and remove the two screws
(1).
•
Remove the tool.
Specific tooling
020956Y Support for camshaft gear on head
•
Fit the U bolt and the oil pipe.
•
Tighten the two U bolt screws (1) and
the screw (2) that was not fitted previ-
ously.
Engine TUONO V4 R a-PRC ABS
ENG - 300
