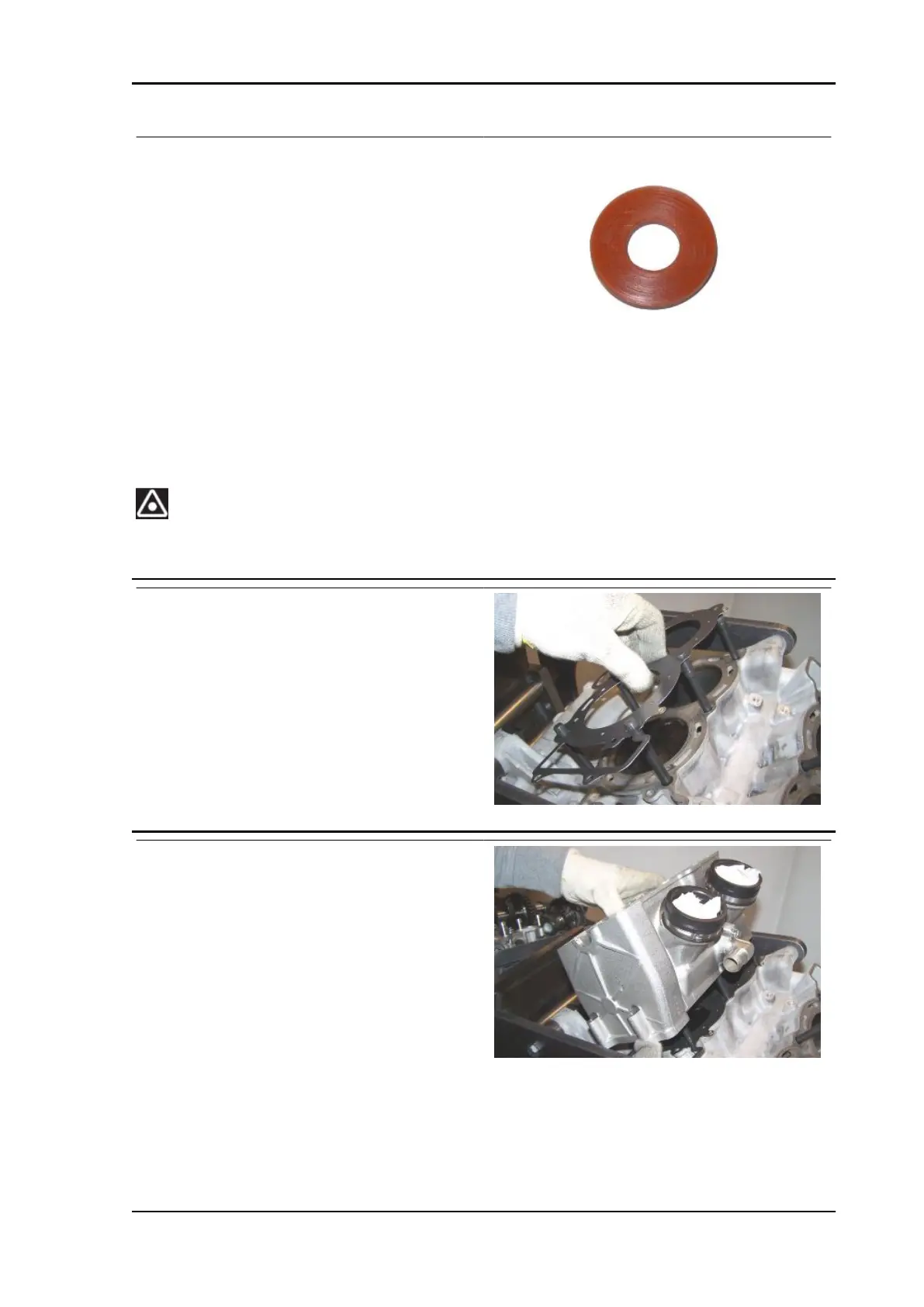

WASHER
We recommend installing a washer between the
crankcase and the chain tensioner to optimise the
functionality of the timing system.
This washer is available as a spare part.
•
Fit the washer onto the chain tensioner then install the chain tensioner in the relative seat
in the crankcase. Take particular care to ensure that the washer seats correctly, as the
functionality of the timing system may be compromised if the washer is bent or incorrectly
positioned.
THIS WASHER CANNOT BE INSTALLED ON THE CHAIN TENSIONER OF ONE CYLINDER BANK
ALONE - ALWAYS INSTALL WASHERS ON BOTH CHAIN TENSIONERS.
•
Place a new gasket between the crank-
case and the head.
•
Place the two dowel pins.
•
Install the head.
TUONO V4 R a-PRC ABS Engine
ENG - 325
