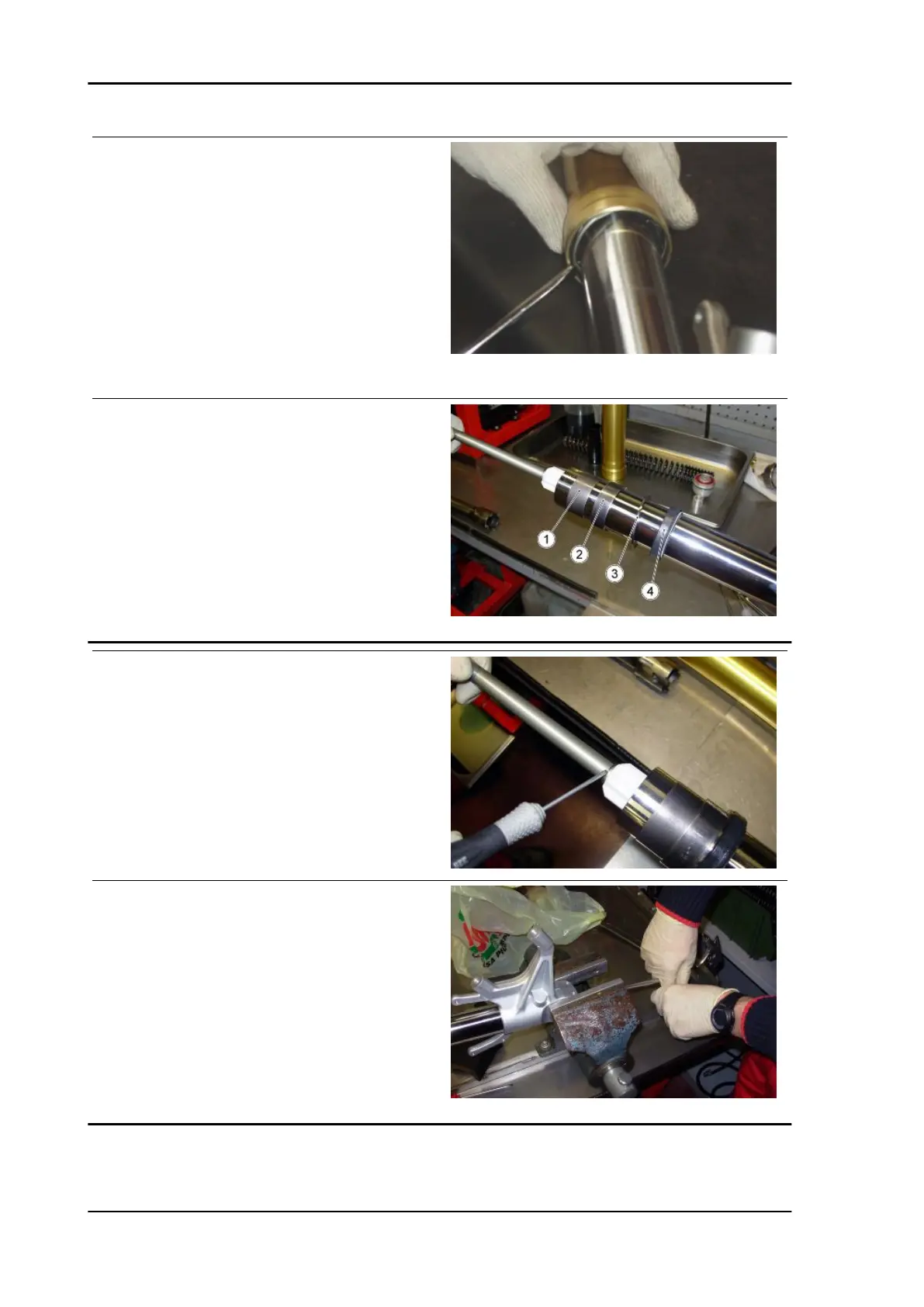

Remove the retainer ring.
•
Take out the sleeve from the stem using the stem as a hammer puller.
•
Remove the fixed bushing (1), the
movable bushing (2), the ring (3) and
the oil seal (4) from the stem.
•
Remove the lock seeger ring of the
spring guide.
•
Remove the spring guide.
•
Using a hook spanner lock the pump-
ing member pin.
•
Remove the stem bottom screw.
Specific tooling
020889Y Wrench for locking pumping unit ring
nut
Suspensions TUONO V4 R a-PRC ABS
SUSP - 402
