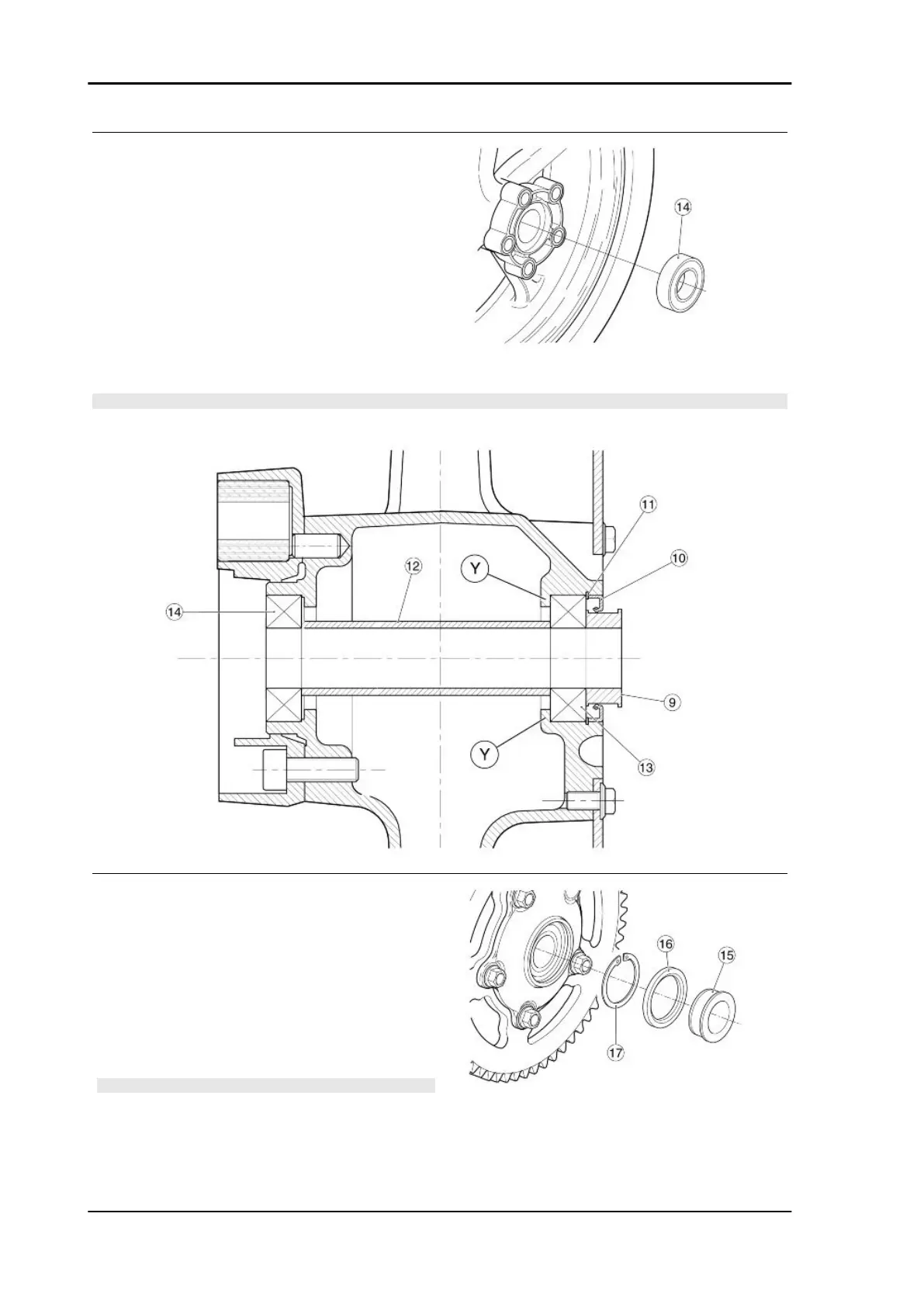

Retrieve the inner spacer (12).
On the left hand side of the wheel:
•
Use the extractor tool to remove the left
hand bearing (16).
Specific tooling
AP8140180 Bearing extractor
•
Clean the interior of the hub thoroughly.
CAUTION
WASH ALL COMPONENTS WITH CLEAN DETERGENT SOLUTION.
FINAL DRIVE UNIT - BEARING REMOVAL
•
Remove the final drive unit.
•
Clean the two sides of the hub with a
cloth.
•
Remove the left spacer (15).
•
Remove the sealing gasket (16).
•
Remove the circlip (17).
CAUTION
THE CIRCLIP (17) IS FITTED ONLY ON THE FINAL DRIVE
UNIT, LEFT SIDE.
Suspensions TUONO V4 R a-PRC ABS
SUSP - 420
