Adjusting
SPORT SETTINGS MAY BE USED ONLY FOR OFFICIAL
COMPETITIONS TO BE CARRIED OUT ON TRACKS,
AWAY FROM NORMAL ROAD TRAFFIC AND WITH THE
AUTHORISATION OF THE RELEVANT AUTHORITIES.

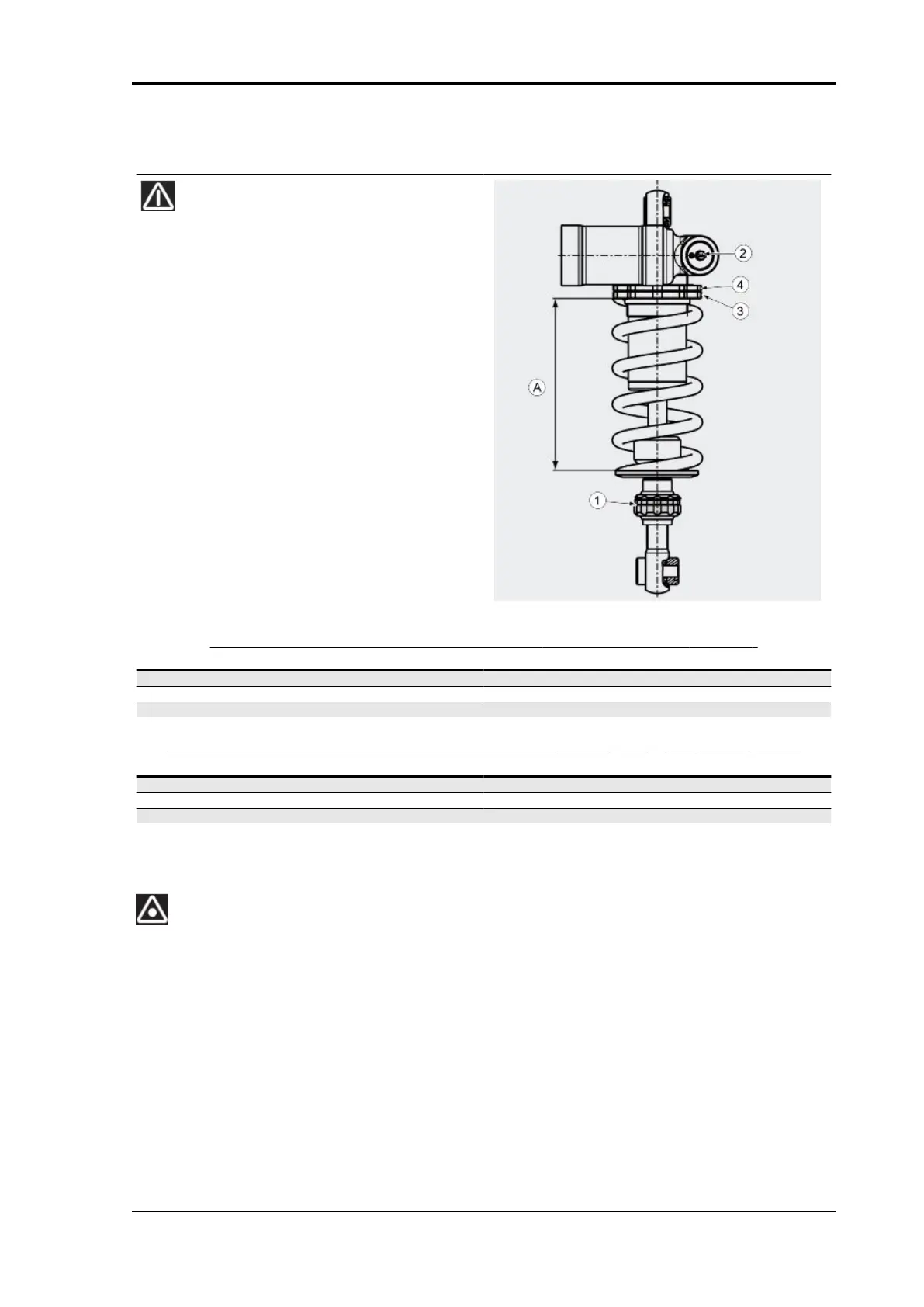

REAR SHOCK ABSORBER - STANDARD ADJUSTMENT (FOR USE ON ROAD)
Specification Desc./Quantity
Length of (preloaded) spring (A) 145 mm (5.71 in)
Rebound adjustment, ring nut (1) open (**) 20 clicks from fully closed (*)
Compression adjustment, knob (2) open (**) 2 clicks from fully closed (*)
REAR SHOCK ABSORBER - RACING ADJUSTMENT RANGE (ONLY ON THE RACING TRACK )
Specification Desc./Quantity
Length of (preloaded) spring (A) 143.5 mm (5.65 in)
Rebound adjustment, ring nut (1) open (**) 9 -12 clicks from fully closed (*)
Compression adjustment, knob (2) open (**) 0.5-1 turn from fully closed (*)
(*) = clockwise
(**) = anticlockwise
DO NOT LOOSEN THE LOCK NUT (5) AND THE ADJUSTER SCREW (6) BEYOND THE GROOVE
ON THE SHOCK ABSORBER NEAR THE LOWER CONNECTION.
TUONO V4 R a-PRC ABS Suspensions
SUSP - 423
