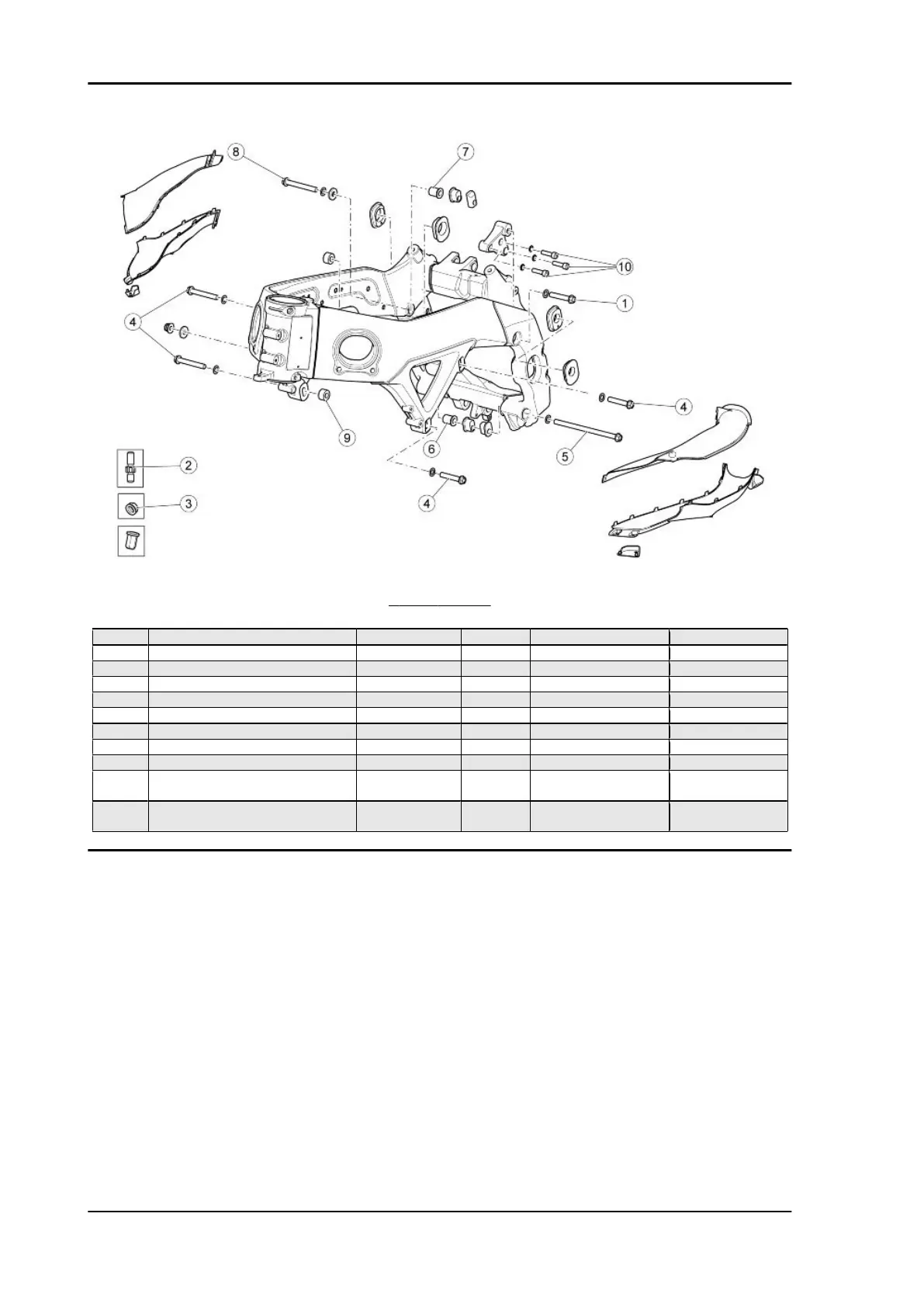

FRONT CHASSIS
pos. Description Type Quantity Torque Notes
1 Upper rear mount M10 1 50 Nm (36.88 lb ft) -
2 Threaded intake duct fastener pins M6 2 + 2 4 Nm (2.95 lb ft) Loct. 243
3 Intake duct fixing nuts M6 2 + 2 Manual -
4 Front couplings M10 2 + 2 50 Nm (36.88 lb ft) -
5 Lower rear coupling M10 1 50 Nm (36.88 lb ft) -
6 RH lower rear regulator bushing M18x1.5 1 12 Nm (8.85 lb ft) -
7 RH upper rear regulator bushing M18x1.5 1 12 Nm (8.85 lb ft) -
8 RH upper rear coupling M10 1 50 Nm (36.88 lb ft) -
9 Right fairing spacer M6 1 10 Nm (7.37 lb ft) Loct. 243
10 Upper rear left hand engine mount
fastener screws
M8 3 25 Nm (18.44 lb ft) -
- Screw fastening the ground cable to
the left side chassis
M6 1 6 Nm (4.42 lb ft) -
Chassis TUONO V4 R a-PRC ABS
CHAS - 428
