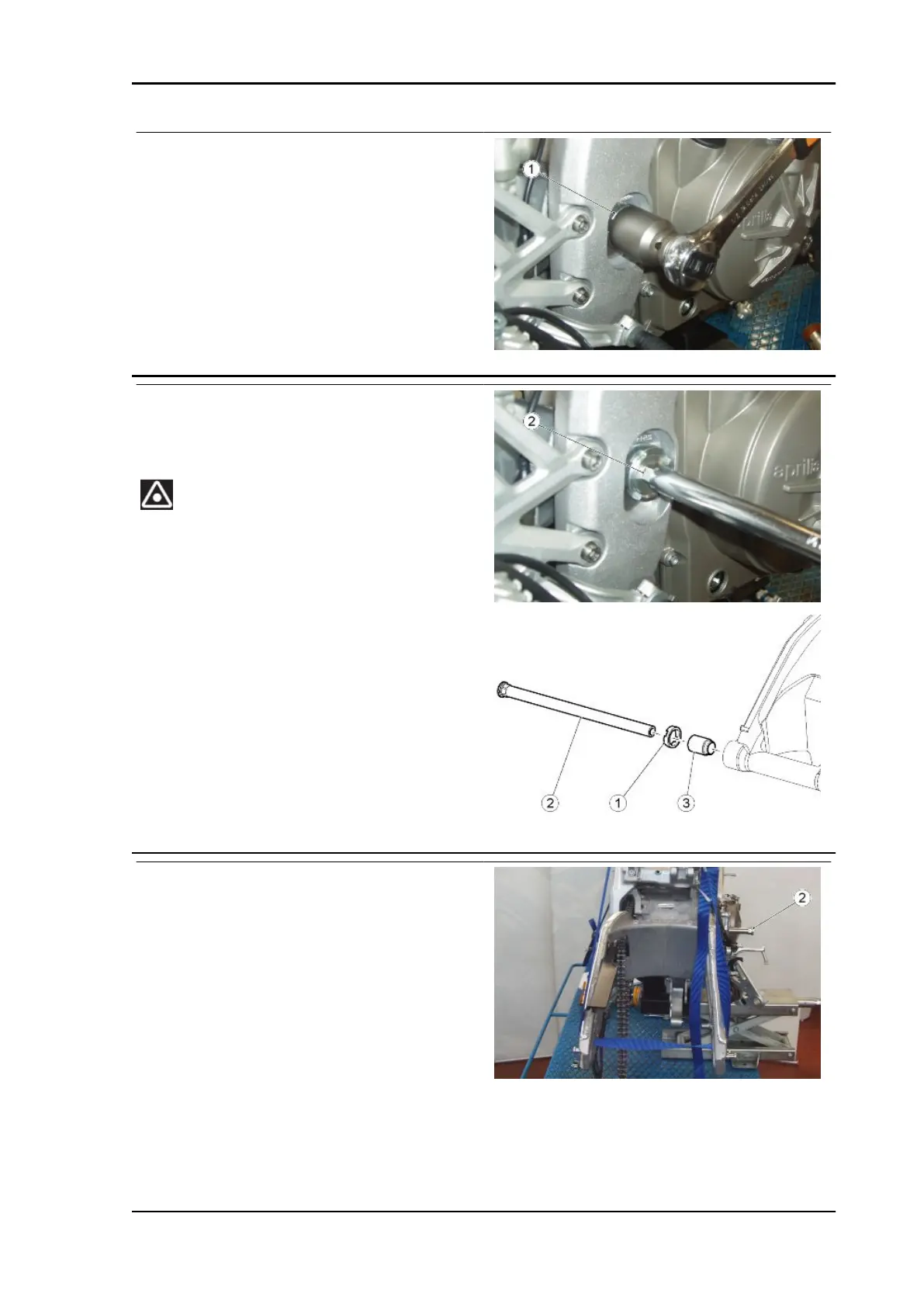

Working from the right side, loosen and
remove the locking ring nut.
•
Turn the swingarm pin (2) anticlock-
wise, which turns and loosens the ad-
justment bushing (3) completely.
REMOVAL SHOULD BE CARRIED OUT WITH UTMOST
CAUTION.
SUPPORT THE SWINGARM FROM THE FRONT TO AVOID
ACCIDENTAL FALLS.
PLACE A WOODEN SUPPORT UNDER THE FRONT PART
OF THE REAR SWINGARM TO PREVENT IT FROM LOW-
ERING AND TO KEEP IT UPRIGHT.
•
Place a mounting under the front part
of the swingarm.
•
Support the swingarm from the front.
•
Remove the swingarm pin (2) from the
right hand side.
•
Support the front part of the swingarm
and be ready to accompany it.
•
Using the rear mounting stand, remove
the swingarm completely from the ve-
hicle from the rear.
TUONO V4 R a-PRC ABS Chassis
CHAS - 431
