APRILIA TUONO V4 R a-PRC ABS User Manual

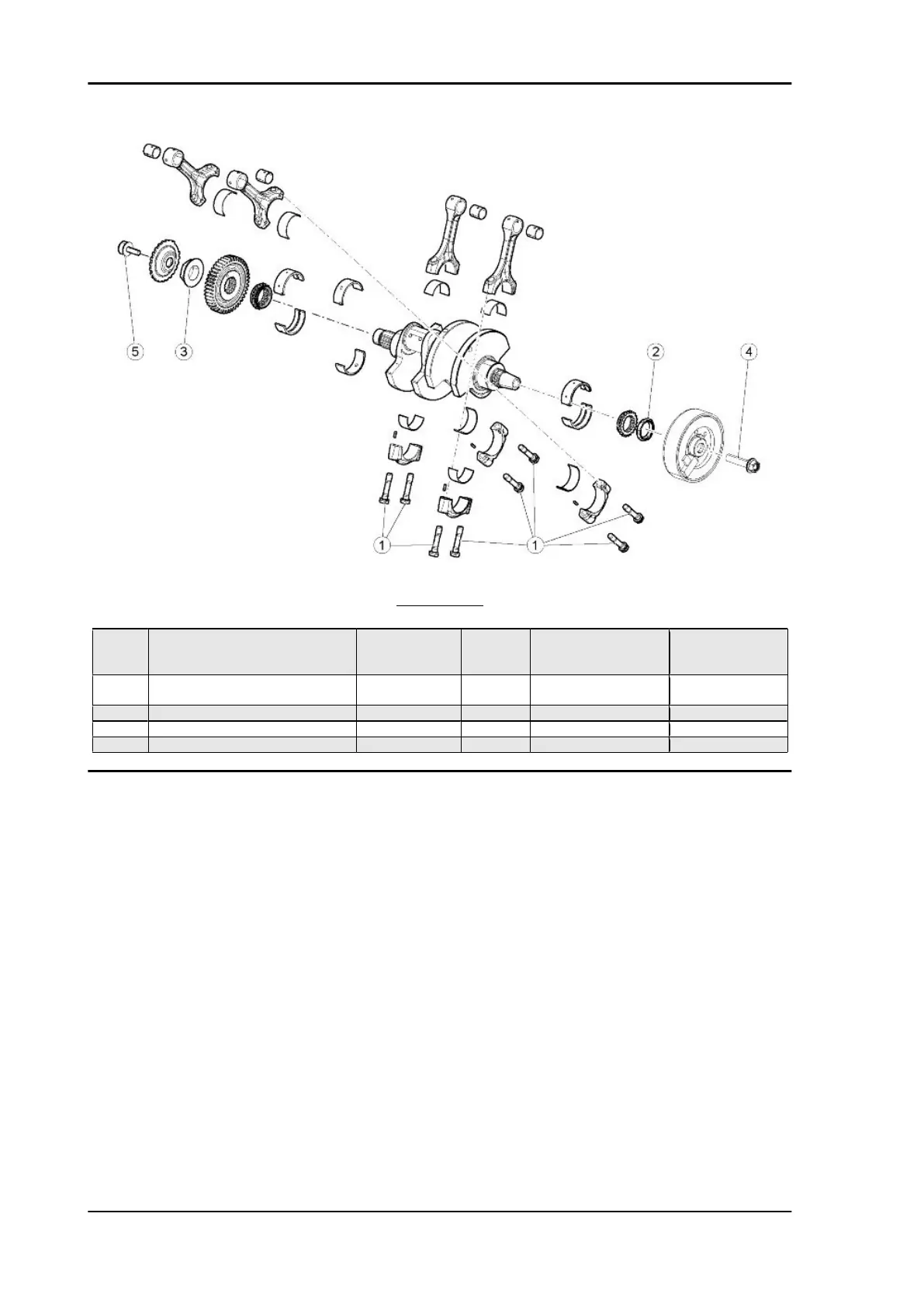

CRANKSHAFT
pos. Description Type Quantity Torque Notes
1 Connecting rod screws - 8 15 Nm (11.06 lbf ft) +
40° + 60°
Lubricate the thread
and under the head
with Molykote
2 Fastener ring nut for alternator side
timing sprocket
- 1 100 Nm (73.76 lb ft) Loct. 243
3 Primary fixing ring nut - 1 200 Nm (147.51 lb ft) Loct. 243
4 Generator fixing screw M12x1.25 1 120 Nm (88.51 lb ft) -
5 Tone wheel fixing screw M8x1.25 1 50 Nm (36.88 lb ft) Loct. 3M or 270
Characteristics TUONO V4 R a-PRC ABS
CHAR - 44
