FUEL TANK

pos. Description Type Quantity Torque Notes

1 Special screw for fastening the rid-

er's saddle to the fuel tank

M6 1 4 Nm (2.95 lb ft) -

2 Filler to tank retaining screws M5 4 4 Nm (2.95 lb ft) -

3 Screws fixing the fuel pump flange to

the tank

M5 8 3 Nm (2.21 lb ft) -

4 Front screws fastening the tank to

the chassis

M6 1 8 Nm (5.9 lb ft) -

5 Rear screws fastening the tank to the

rear chassis

M6 2 7 Nm (5.16 lb ft) -

6 Screws fastening plastic fuel pipe

mounting

M5 1 2.5 Nm (1.84 lb ft) -

7 Left fairing mounting bracket fixing

screws

M5 1 3 Nm (2.21 lb ft) -

8 Screws fastening structural tank

mounting to tank

M6 4 3 Nm (2.21 lbf ft) -

- Central fuel tank cover retaining

screw

M4 1 0,5 Nm (0.37 lb ft) -

- Fuel tank breather couplings M7 2 3 Nm (2.21 lb ft) -

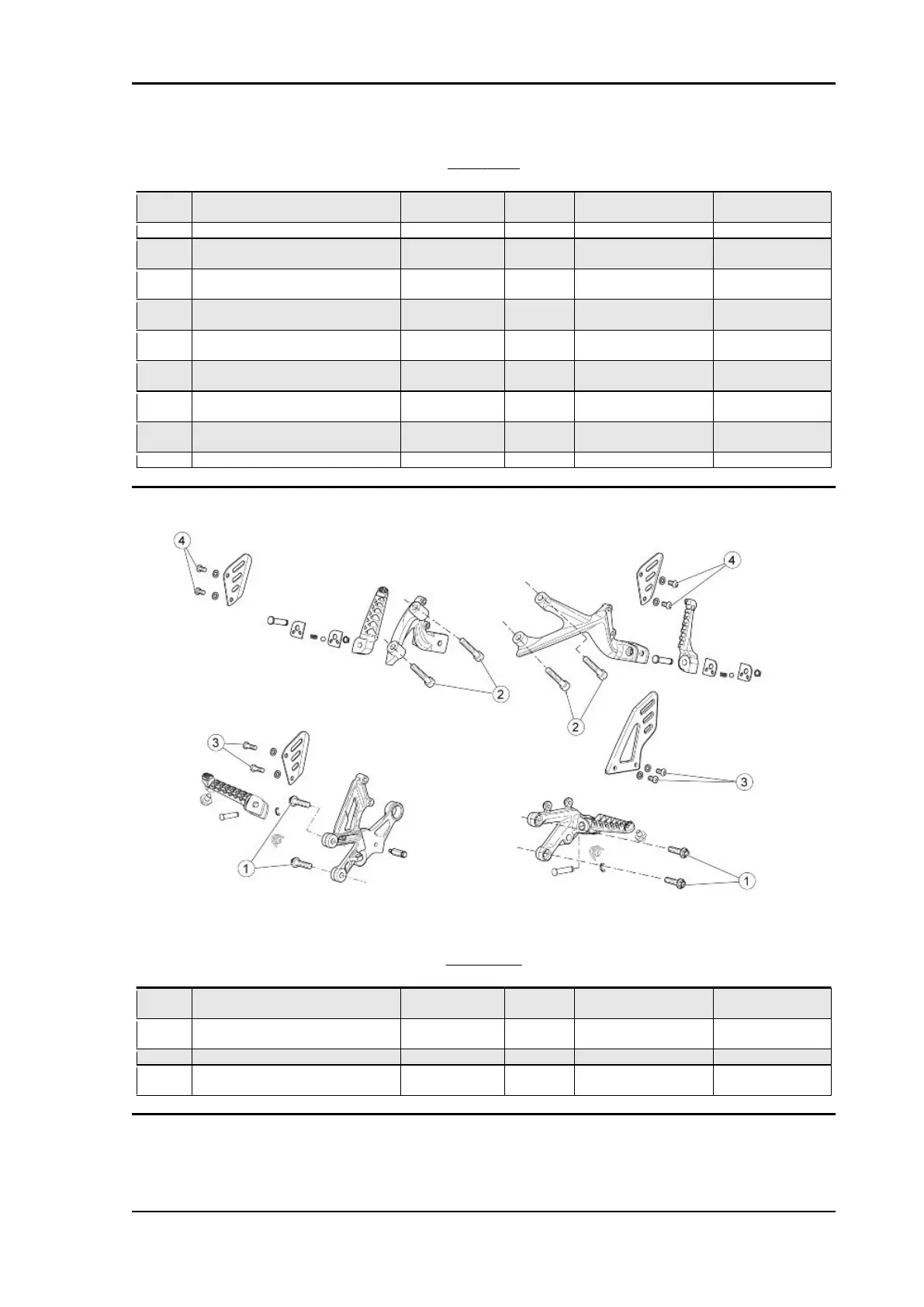

FOOTRESTS

pos. Description Type Quantity Torques Notes

1 Screws used to fasten the rider's

footrest to the chassis

M8 2+2 25 Nm (18.44 lb ft) Secure using Loc-

tite 243

2 Screws used to fasten the passeng-

er's footrest to the saddle support

M8 2+2 18 Nm (13.28 lb ft) Secure using Loc-

tite 243

3 Rider's heel guard fastening screws M6 2+2 8 Nm (5.90 lb ft) -

4 Passenger's heel guard fastening

screws

M6 2+2 8 Nm (5.90 lb ft) -

TUONO V4 R a-PRC ABS Bodywork

BODYW - 501
