Chapter 3: Configuration and commissioning
1X-X3 Installation Manual 29

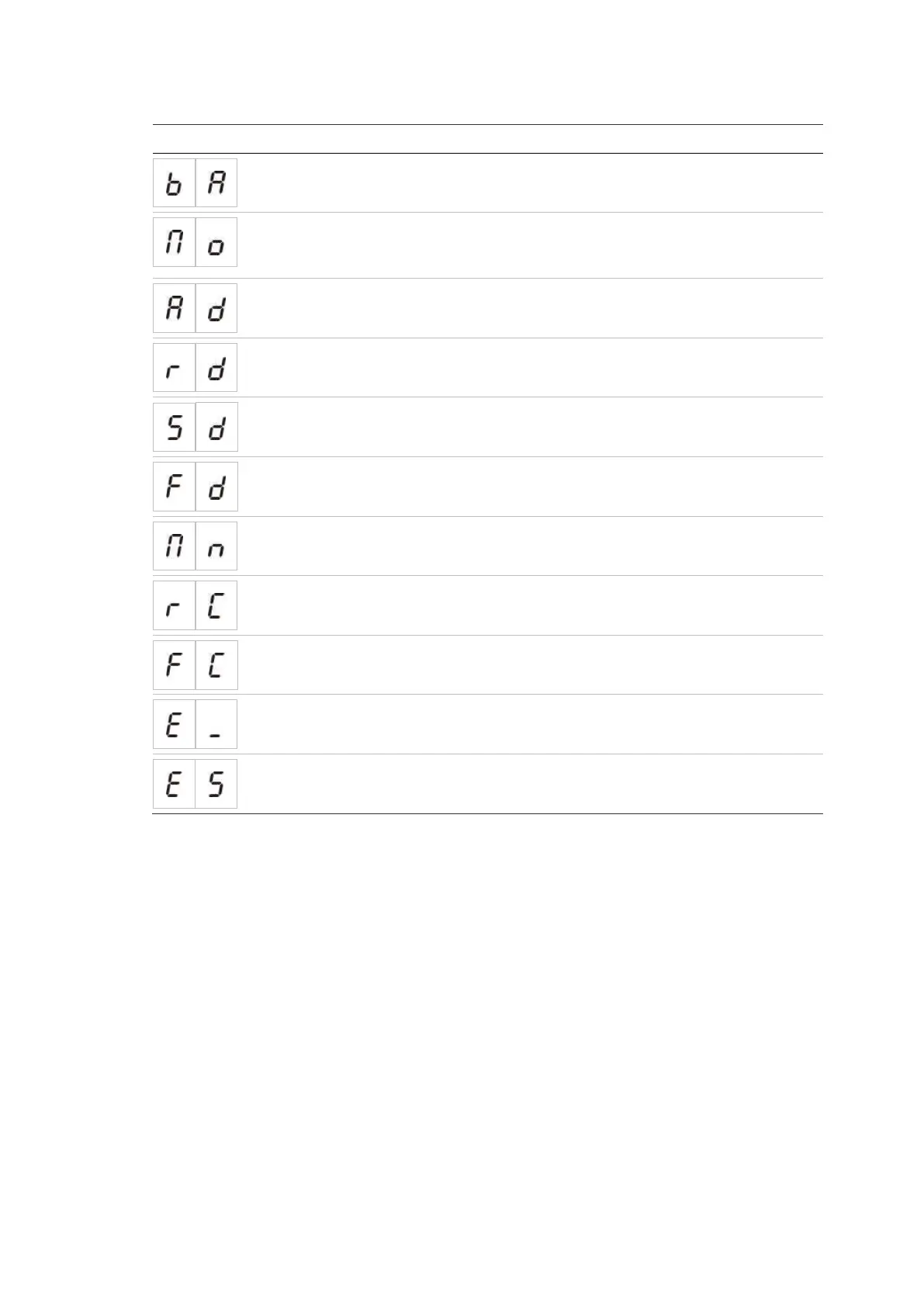

Table 10: The basic configuration menu
Display Menu Values
Basic default configuration 01, 02, 05, 06
Panel mode Basic standard
Basic evacuation
Custom
Actuator delay 00 to 60 seconds
Reset disabled delay 00 to 30 minutes
Fire sounders delay 00 to 10 minutes
Fire routing delay 00 to 10 minutes
Add an expansion board 00 to 04 modules
Restore previous configuration N/A
Restore factory configuration N/A
Exit without saving N/A
Exit and save N/A
Note: Additional menu options are available if one or more expansion boards are
installed. See “Expansion board configuration” on page 49.
Basic default configuration
Use this menu to select operating mode configuration presets.
In both basic standard and basic evacuation modes, zone detection is the same.
The extinguishing area uses Z1 and Z2 (automatic). Fire detection uses Z3
(mixed).
Available presets are shown in the table below. The default setting is 01 (Basic
standard mode, passive end-of-line).
