Note: In basic evacuation operating mode, the configured actuator delay is
bypassed when MCP Start is activated. The actuator output is activated
immediately.
Custom panel operating mode
A custom panel operating mode will be indicated if any of the following zone
configuration settings are changed from the operating mode preset values:
• Zone delay
• Zone configuration
• Zone type
Actuator delay
When the control panel enters the extinguishing activation state, the actuator
delay starts counting down. The extinguishing actuator output is activated when
the delay time expires. (Activation of the MCP Hold or MCP Abort point prevents
the panel from entering the extinguishing activation state.)
Use this menu to configure an actuator delay of up to 60 seconds (in steps of 5
seconds). The default setting is for a 10-second delay.
To configure an actuator delay:

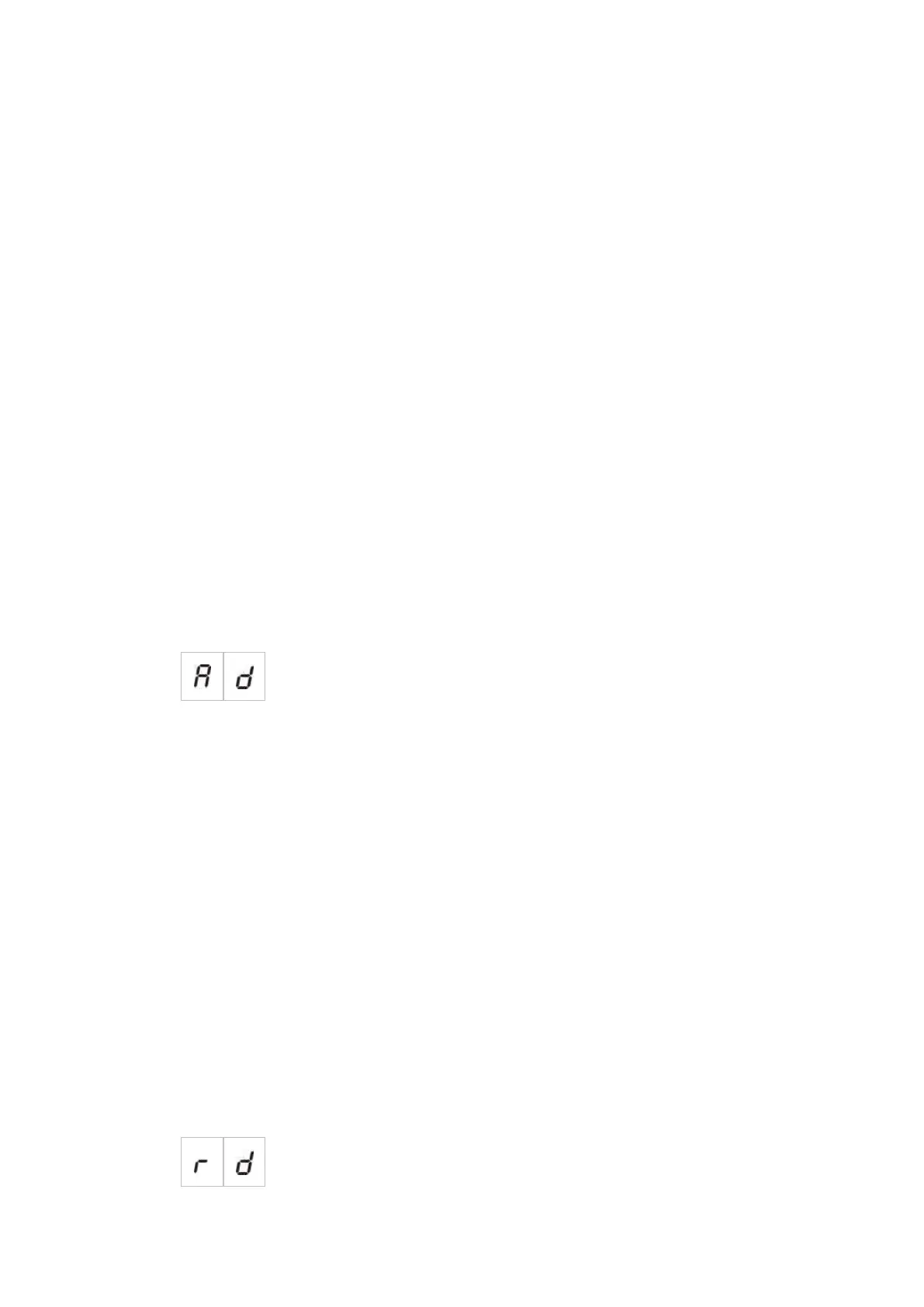

1. Set the display as shown below, and then press Enter.
The red Release LED flashes fast to indicate that the delay configuration
menu is active.
2. Select a delay value from 00 to 60 seconds using the value selection buttons
(2 and 4).
3. Press Enter.
4. Save your changes.
Reset disabled delay
When the control panel enters extinguishing activation, the reset disabled delay
starts counting down, and the reset is disabled until the delay expires.
Use this menu to configure a reset disabled delay of up to 30 minutes (in steps of
1 minute). The default setting is for a 2-minute delay.
To configure a reset disabled delay:
1. Set the display as shown below, and then press Enter.
