Chapter 3: Configuration and commissioning
30 1X-X3 Installation Manual
Table 11: Operating mode configuration presets
Display Mode Zone configuration Manual fire
sounder start
Actuator delay
for MCP Start
01 (default) Basic standard Passive end-of-line No Yes
02 Basic standard Passive end-of-line,
CleanMe enabled
No Yes
05 Basic evacuation Passive end-of-line Yes (operator
user level) [1]
No (bypassed)
06 Basic evacuation Passive end-of-line,
CleanMe enabled
Yes (operator
user level) [1]
No (bypassed)
00 Custom [2] N/A N/A N/A
[1] A fire alarm is not required to activate the fire sounders.
[2] This option cannot be selected. It is displayed automatically when an advanced configuration
is entered
To change the operation mode configuration preset:

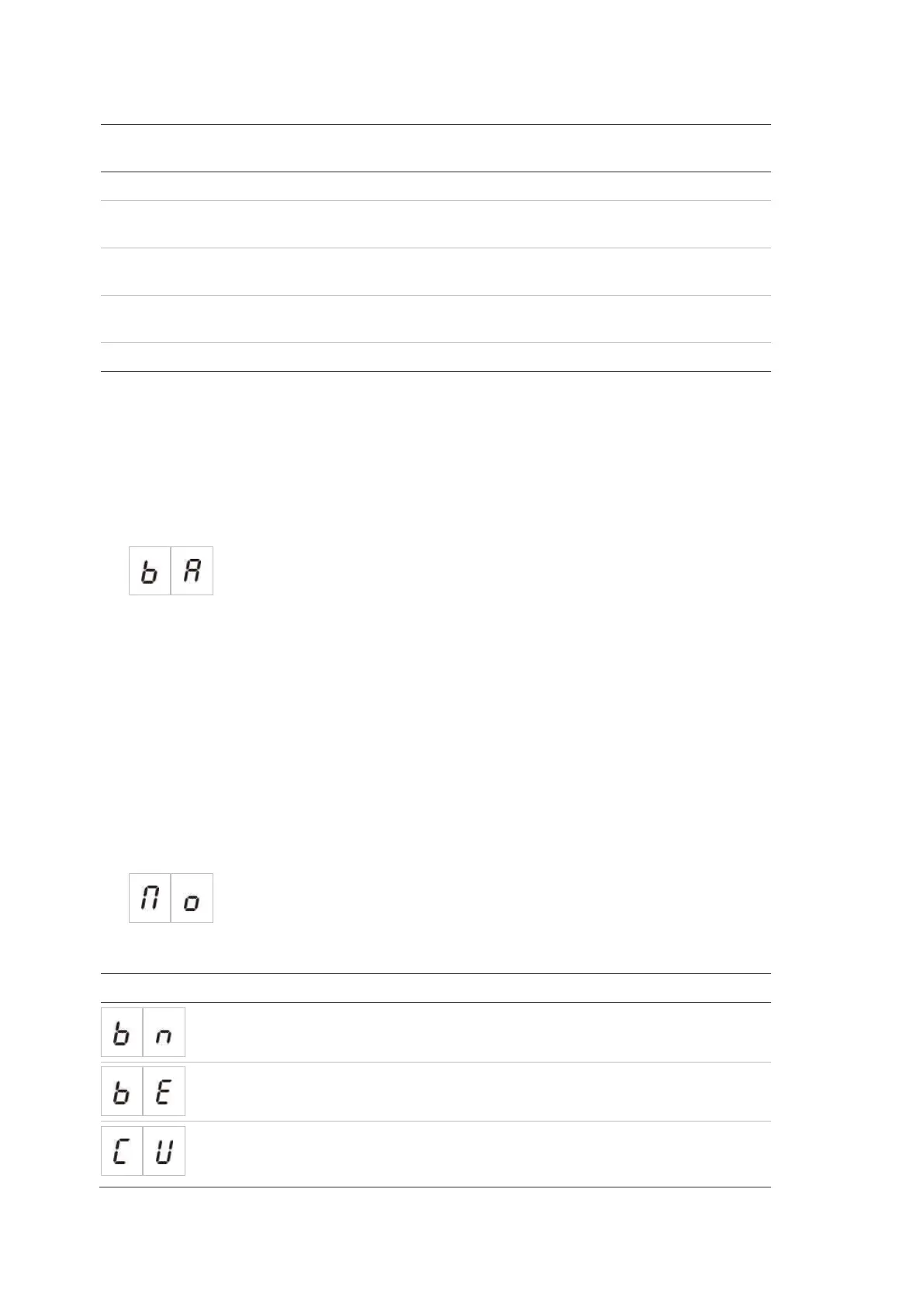

1. Set the display as shown below, and then press Enter.
2. Select a value using the value selection buttons (2 and 4).
3. Press Enter.
4. Save your changes.
Panel mode
Use this read-only menu to view the operating mode of the control panel.
To view the panel mode:
1. Set the display as shown below, and then press Enter.
Display indications for each operating mode are shown below.
Display Panel mode Description
Basic standard Fire sounders cannot be manually activated (fire
sounders are only activated if there is a fire alarm).
Basic evacuation Fire sounders can be manually activated at operator
user level (a fire alarm is not required).
Custom A custom operating mode is configured. The display
alternates between CU (custom) and the operation
mode (basic standard or basic evacuation).
