Chapter 3: Configuration and commissioning
50 1X-X3 Installation Manual
Expansion board function and delay configuration
Once an expansion board is installed and added to the control panel
configuration, the following additional configuration options appear on the basic
and advanced configuration menus.
Note: These configuration options are repeated for each of the installed
expansion boards (A, B, C, and D).

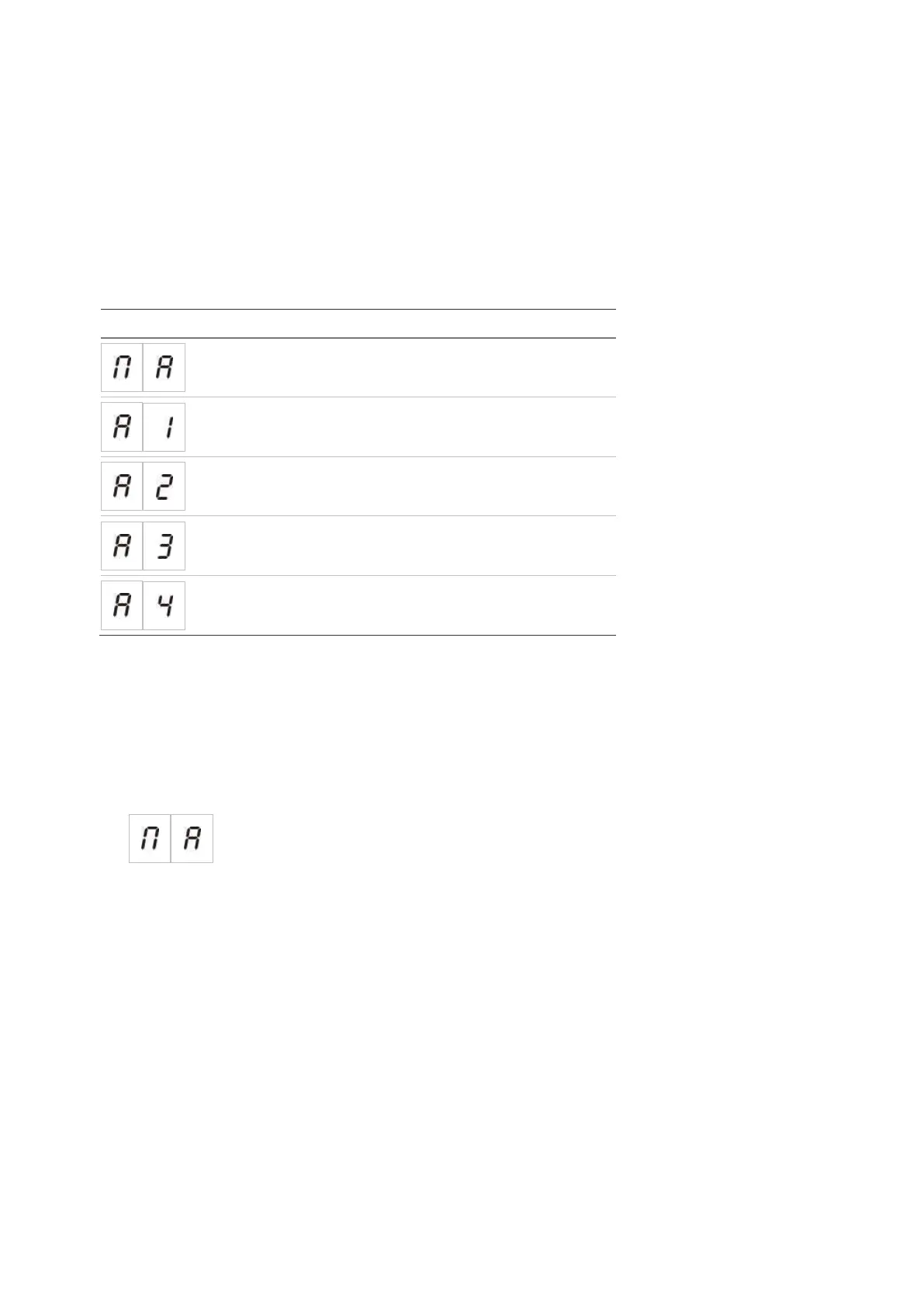

Table 13: Expansion board A configuration options
Display Description Value
Module A function 01 to 96
Module A output 1 delay 00 to 10 minutes
Module A output 2 delay 00 to 10 minutes
Module A output 3 delay 00 to 10 minutes
Module A output 4 delay 00 to 10 minutes
Expansion board function
Use this menu to configure the expansion board function. The default value is 41.
For available presets, see the topic “Expansion board functions” on page 69.
To configure the expansion board function:
1. Set the display as shown below, and then press Enter.
The Expansion I/O Fault/Disabled LED on the control panel interface and the
ON LED on the expansion board flashes fast to indicate that the module
function configuration menu is active.
2. Select a value from 01 to 96 using the value selection buttons (2 and 4).
3. Press Enter.
4. Save your changes.
Expansion board output delay
Use this menu to configure an expansion board output delay of up to 10 minutes,
where the feature is available.
