2 AR-6480 Console: Rear View
Figure 2 uses a numeric callout system to identify the main elements of the
console’s rear panel, which are listed and labeled in Table 2. These callouts are
referenced throughout this User’s Guide.

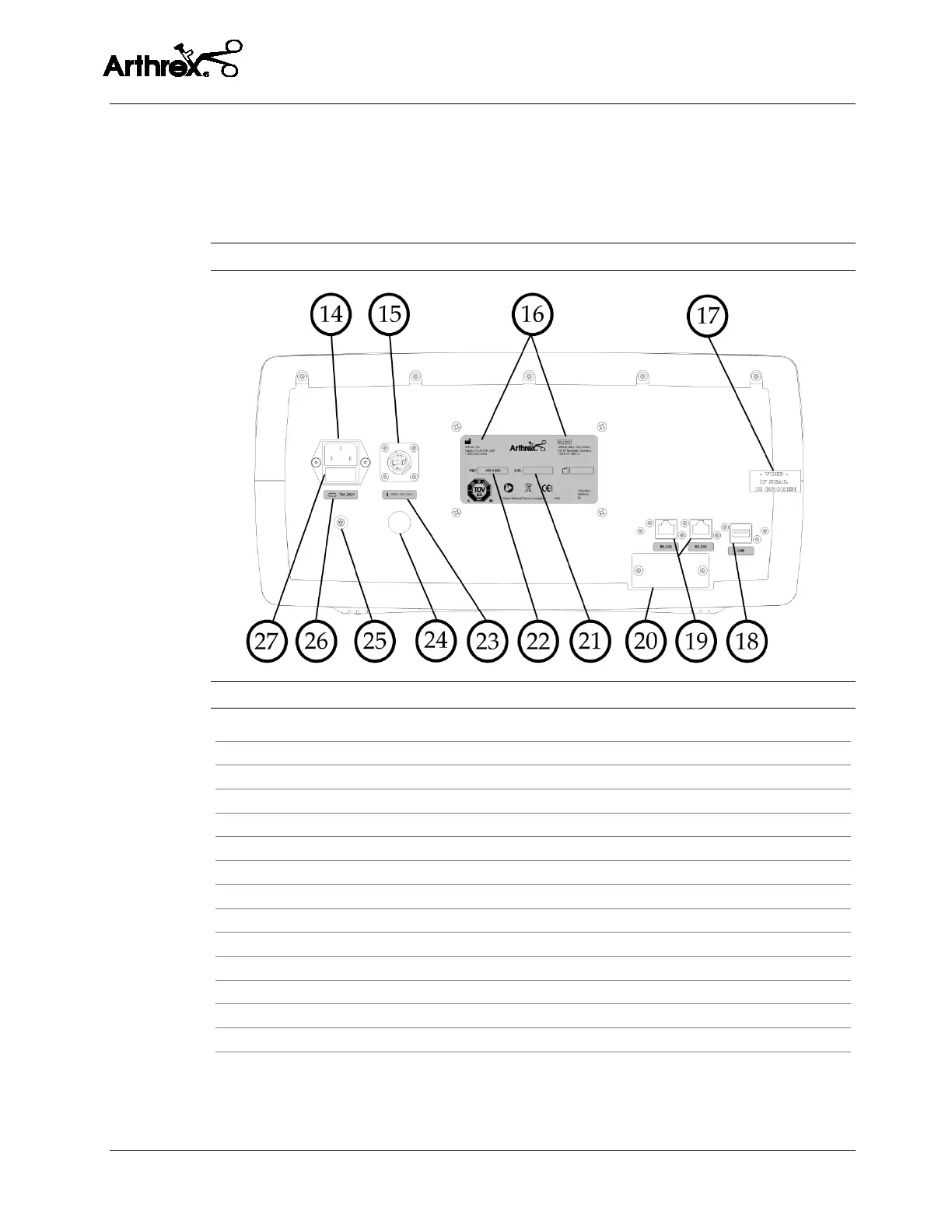

Figure 2 Rear Panel of Console
Table 2 Rear Panel Elements
14.
AC mains power input plug
15.
Shaver Detect power socket
16.
Address
17.
Void seal sticker
18.
USB port (For use ONLY with an Arthrex approved thumb drive)
19.
Serial ports for Arthrex integration (refer to IFU 950-0052-00)
20.
Access panel (for Arthrex authorized use only)
21.
Serial number label
22.
Model number label
23.
Shaver or output fuse label
24.
Shaver or output fuse
25.
Equipotential ground connector and symbol
26.
Main power input - Fuse label
27.
Main power input - Fuse holder
