Product Description
DualWave Arthroscopy Pump User’s Guide
DFU-0212 Rev. 1 Page 13 of 54
2.3 Foot Pedal Unit (AR-6483)
The AR-6480 DualWave Arthroscopy Pump can be remotely controlled with the
optional foot pedal unit (AR-6483). It provides a Lavage function and a Rinse
function. See Figure 3 and Table 4.
Do not disconnect the plug of the foot pedal unit by pulling on the
cable. Remove the foot pedal unit plug by grasping and pulling on
the body of the connector.
Figure 3 uses a lowercase Roman numeral callout system to identify the main
elements on the foot pedal unit, which are listed and labeled in Table 4. These
callouts are referenced throughout this User’s Guide.

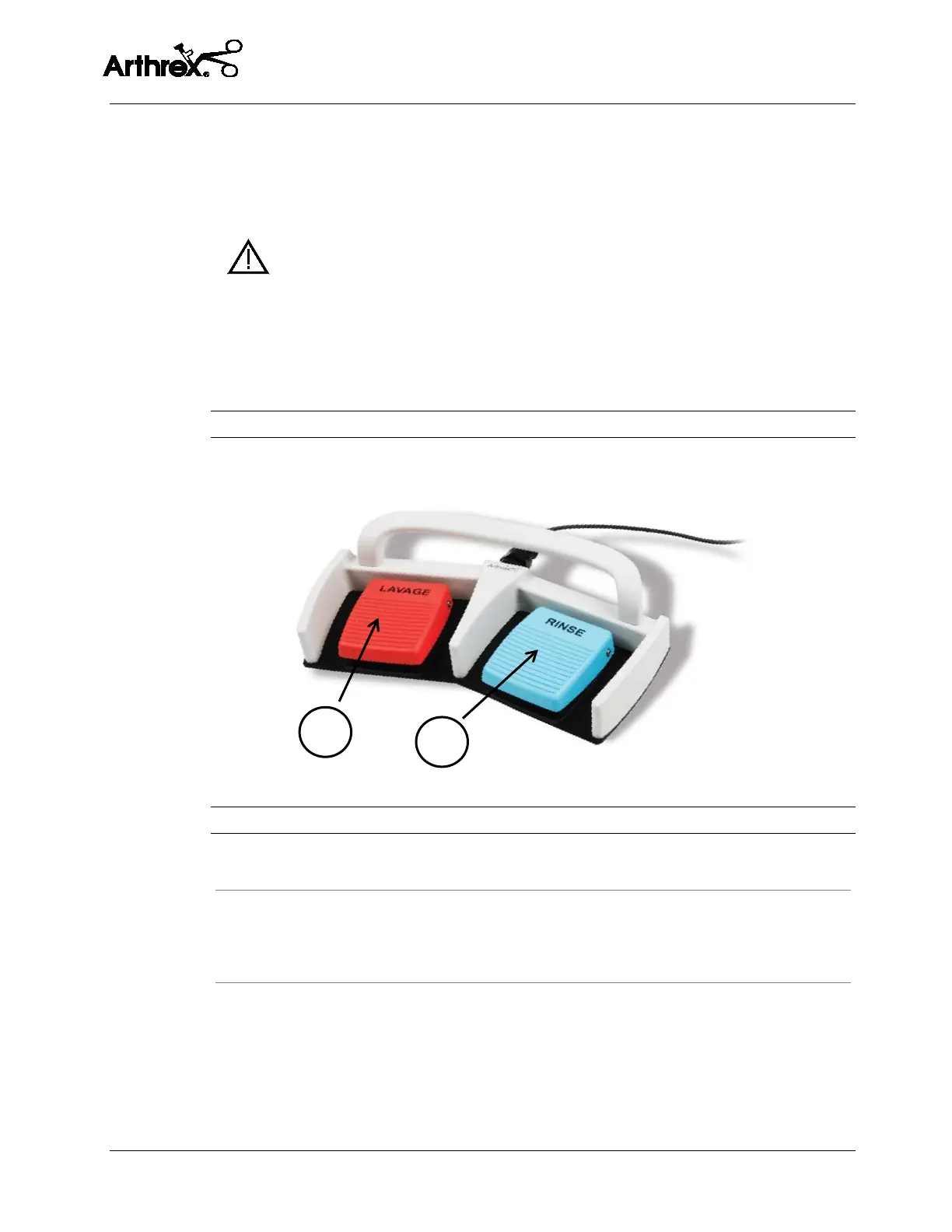

Figure 3 Foot Pedal Unit (AR-6483)
Table 4 Foot Pedal Elements (AR-6483)
Lavage increases the pressure by a percentage and time selected
by the user.
Rinse increases the outflow rate and pressure by a rate and time
selected by the user. The pump can also enter Alternative Suction
Pathway (ASP) if pressed while the shaver is activated and the
ASP mode is enabled via the outflow shaver menu.
