ASCOM d63 - Descriptions

TD 93119EN
28 June 2016 / Ver. PA5
User Manual
Ascom d63 DECT Handset
4
2 Descriptions
ABC DEF
GHI JKL
PQRS TUV WXYZ
MNO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

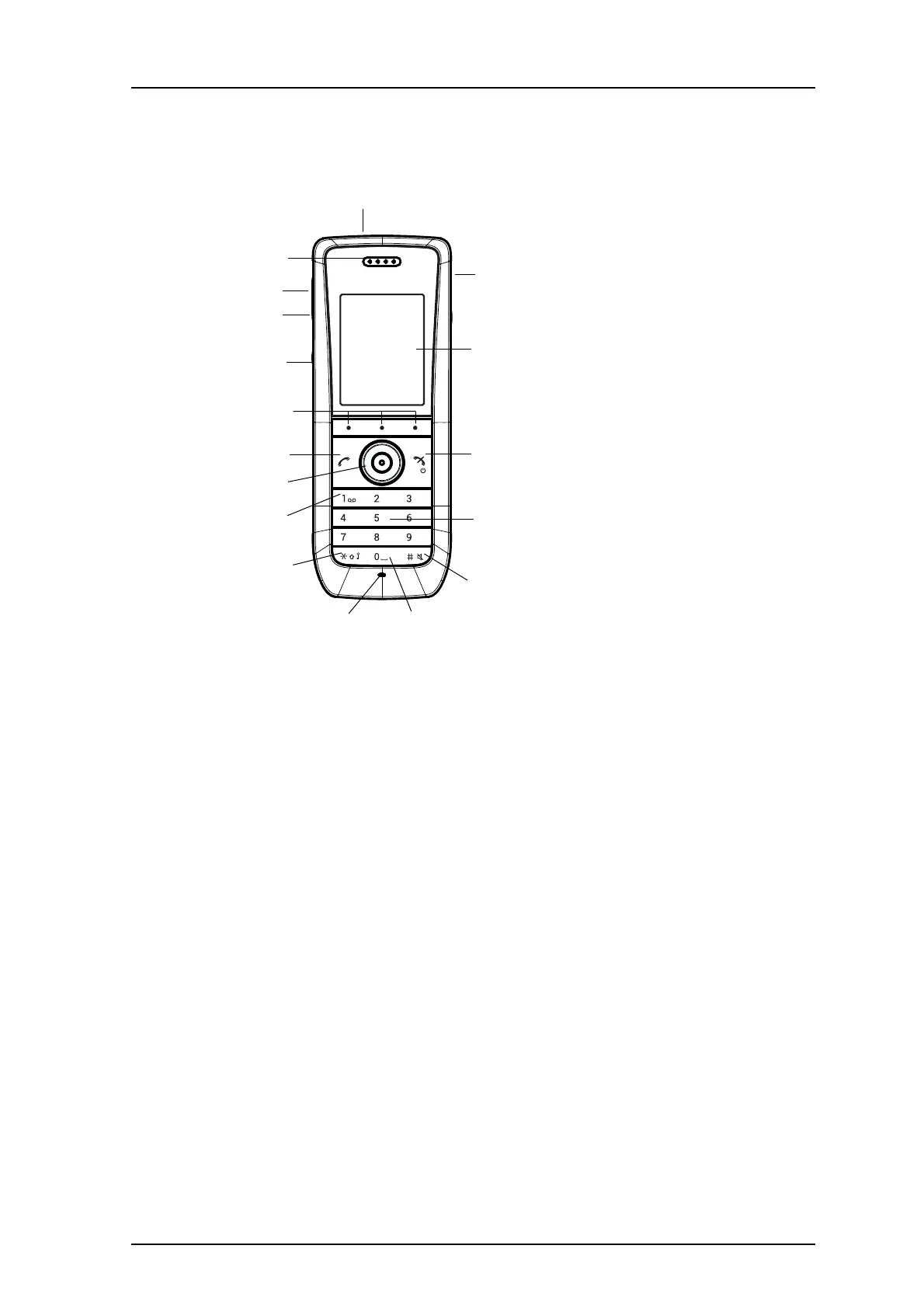

Figure 1. Description of the handset.
1 Multifunction/Alarm button
This button can be used as a shortcut to functions; lo
ng or double press modes.
Depending on what model of handset that is used, the button can be used as a
push button alarm or the button may be configured as a PTT button. For
information about what functions that are supported by existing handset models,
see 1.2 Functions and Accessories on pag
e 2.
2 Earpiece speaker
3 Volume button (up)
To increase the speaker volum
e
4 Volume button (down)
To decrease the speaker volume
5 Mute and PTT button
To turn on/off audible signals in idle mode, sile
ncing the ring signal at incoming
call, and to turn on/off the microphone during a call.
6 Soft keys
The 3 Soft keys can be pre-programmed or used with GUI
7 Off-hook key
To answer a call, to pre-dial a number, and
as a shortcut to the Call list.
8 Five-way navigation key
Navigation key with Left, Right, Up, Down, and
Confirmation (in the middle). These
keys, except the middle key, can also be programmed for shortcuts.
