2.3 Icons and Text in the Display
All functions and settings available to the user are shown as icons and text in the display.
The icons and text in the display indicate functions and settings to which you have access.
The display normally displays date and time, the Owner ID and handset number. The Owner
ID can manually be set by the user.
2015-10-23
12:19
Menu
709139
Walktest
IP-DECT
Status bar
Header bar
Active area
Soft key bar

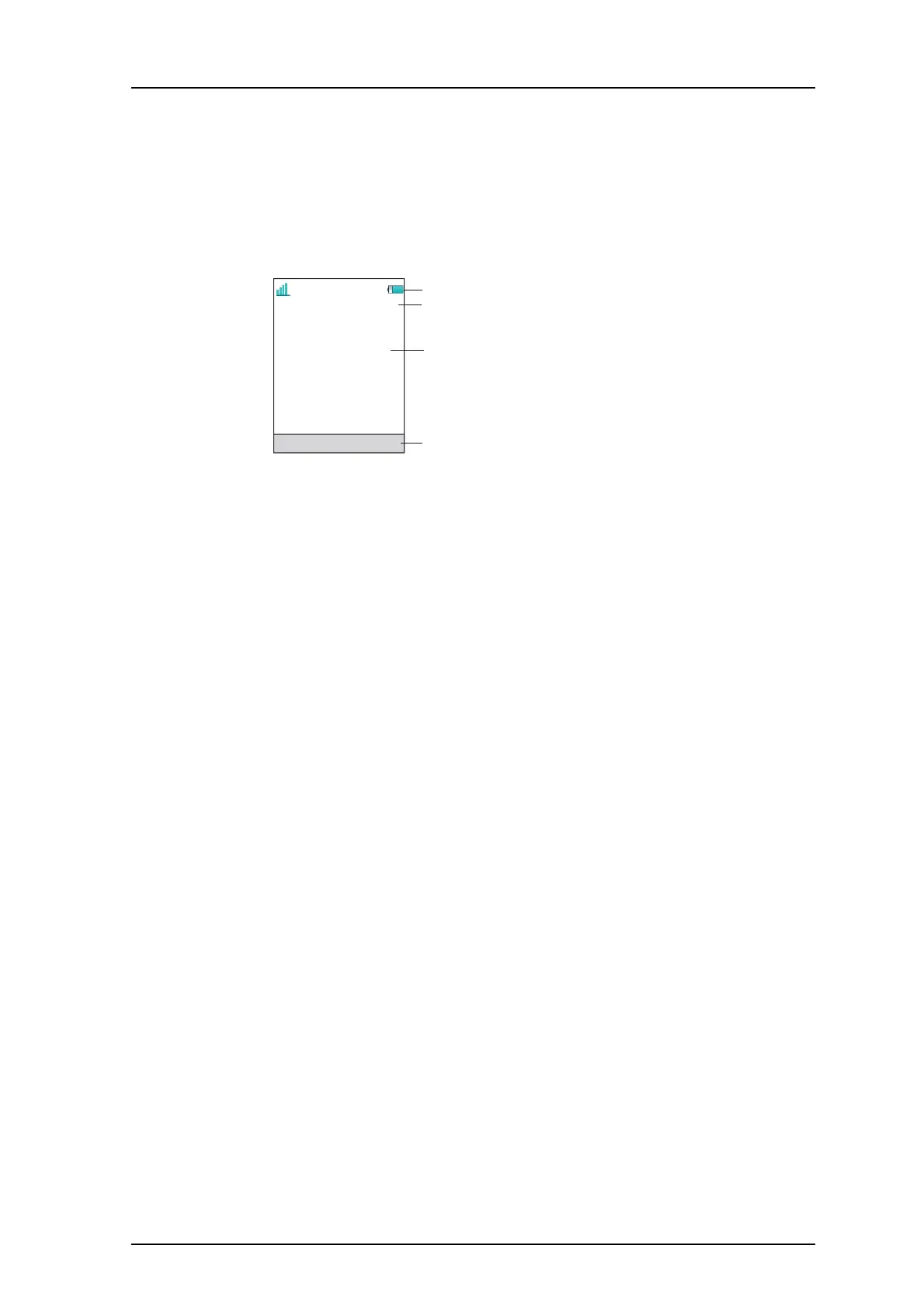

Figure 3. Example of a display configuration in idle mode.
The top row (Status bar) is use
d for icons which give the user information about signal
strength, missed call, new message, phone lock, key lock, sound off, time and battery status.
This row is always visible in all screens.
The next row (Header bar) displays the current date
, headset connection, Bluetooth
connection, and system connection.
The next rows (Active area) are used for informat
ion such as the name of the system to
which the handset is connected to. A user identity provided from the system and/or an
Owner ID can also be displayed if configured in the Settings menu. This is also the area for
dialog window text. For example "missed calls" or to confirm an action.
The bottom row (Soft key bar) is used for Soft
keys which can be used as shortcuts for
functions in the handset. See 2.4.7 Soft Keys on
page 12.
The (Scroll bar) is placed to the right of the "Active a
rea". It becomes visible when a menu
screen has more than six menus, or if the complete text in a message cannot be displayed
on the screen simultaneously.
