ashtech G12 - Interfaces to External Equipment

General Information 9
General Information
Figure 1.3 shows G12 interfacing connections.
Figure 1.3 Notes
1. BATT is a control line normally connected to 3 VDC, or ground if not used.

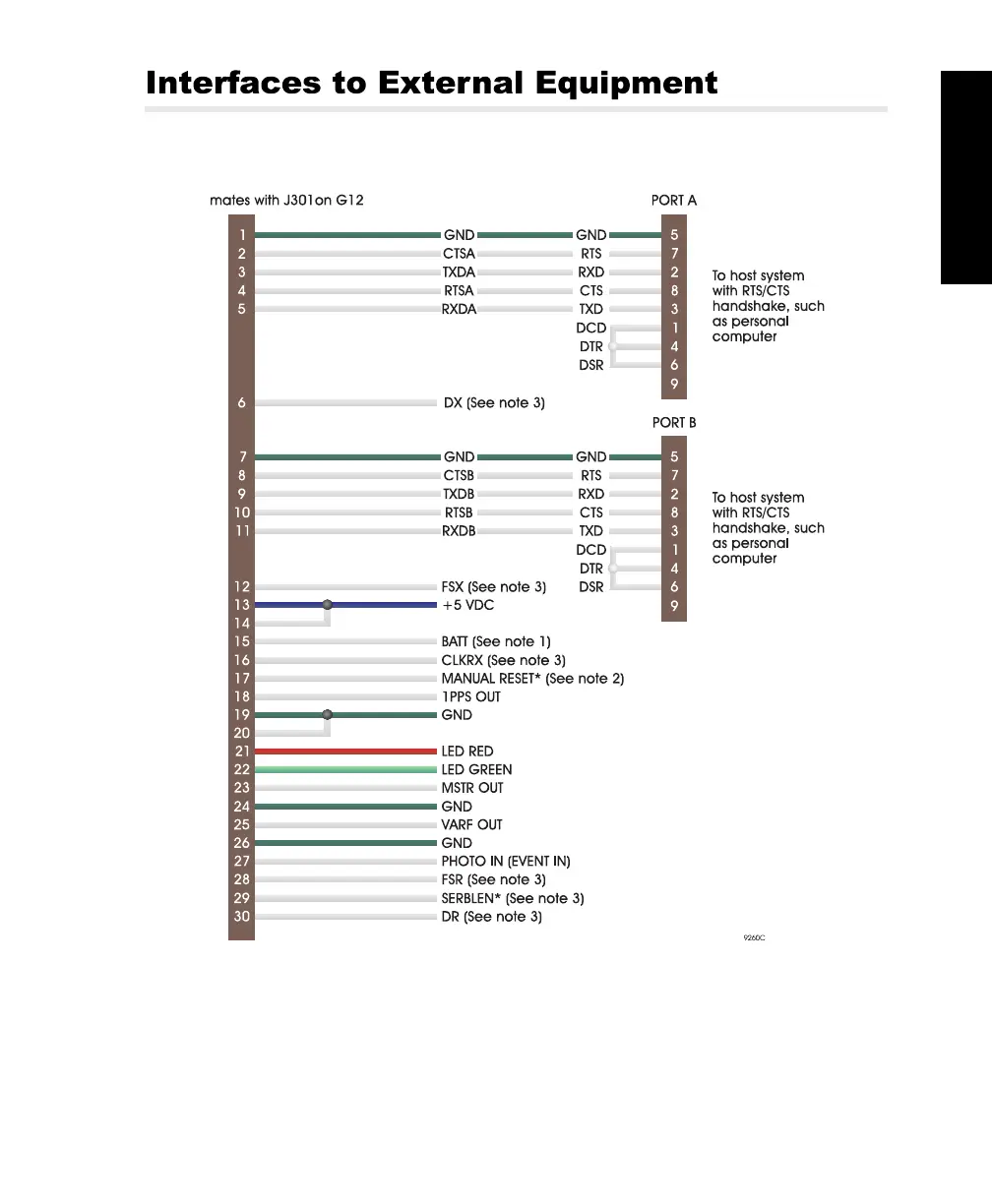

Figure 1.3. External Equipment Interfacing Diagram
