1) The SS pin must be connected only for AT89LP2052 /
4052 / 213 / 214 / 216 / 428 / 828 / 6440 / 51RD2 /
51ED2 / 51ID2 / 51RB2 / 51RC2 / 51IC2.
2) AT89LP213, AT89LP214 and AT89LP216 have the
inverse reset logic. Thus an appropriate resistor must
be pulled-up to VCC.
3) FORTE can not program devices containing the letter
“C” in their name, however, it supports devices with
“S” in their name, of which some are compatible with
the “C” types. For example, AT89C2051 is not
supported, but AT89S2051 is.
4) The software assumes that while programming
AT89LP52, the device’s POL pin is in logical1. If POL
is in logical0, the Inverse RESET option should be
activated in the program. For AT89LP51RD2,
AT89LP51ED2, AT89LP51ID2, AT89LP51RB2,
AT89LP51RC2 and AT89LP51IC2 the software
assumes the POL pin in logical0.
AT89C51CC01UA

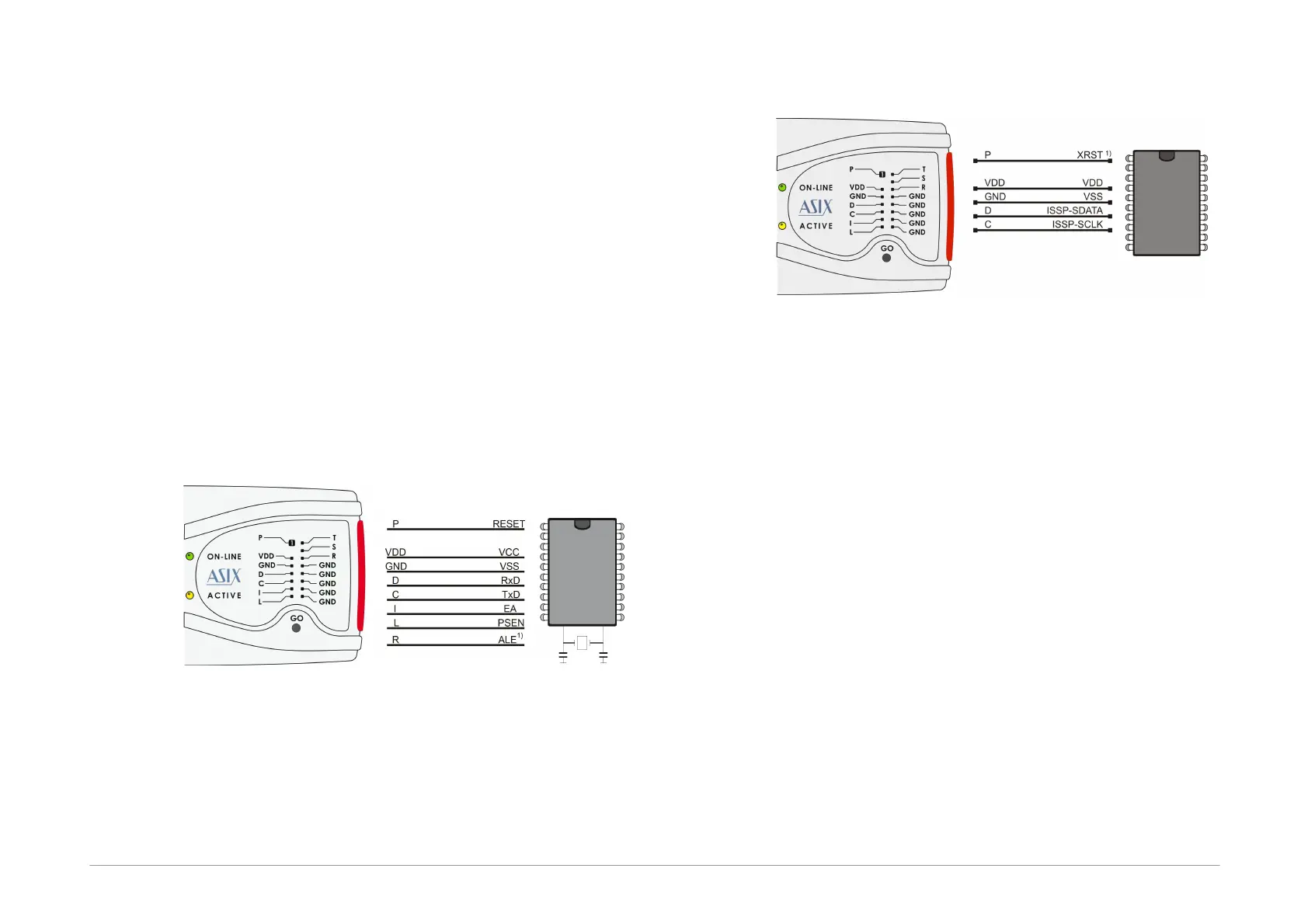

Fig.16: Mikrokontrolér AT89C51CC01UA
1) The ALE pin do not have to be connected, when it is
unconnected on the programmed device or when it is
in log.1.
Cypress PSoC
Fig.17: Cypress PsoC microcontroller
1) The way of entering in the programming mode
should be set in the FORTE programmer settings
window. Devices without an XRST pin can only use
initialization through the power-on reset (by power
supply). Devices with an XRST pin may use both
methods, but the method using the reset signal for
initialization is better as it can be used in
combination with an external power supply.
2) Algorithm programming in the FORTE
programmer settings window should be set in
accordance with the power supply cable used.
