MSP430 / CC430 with TEST Pin,
JTAG Interface

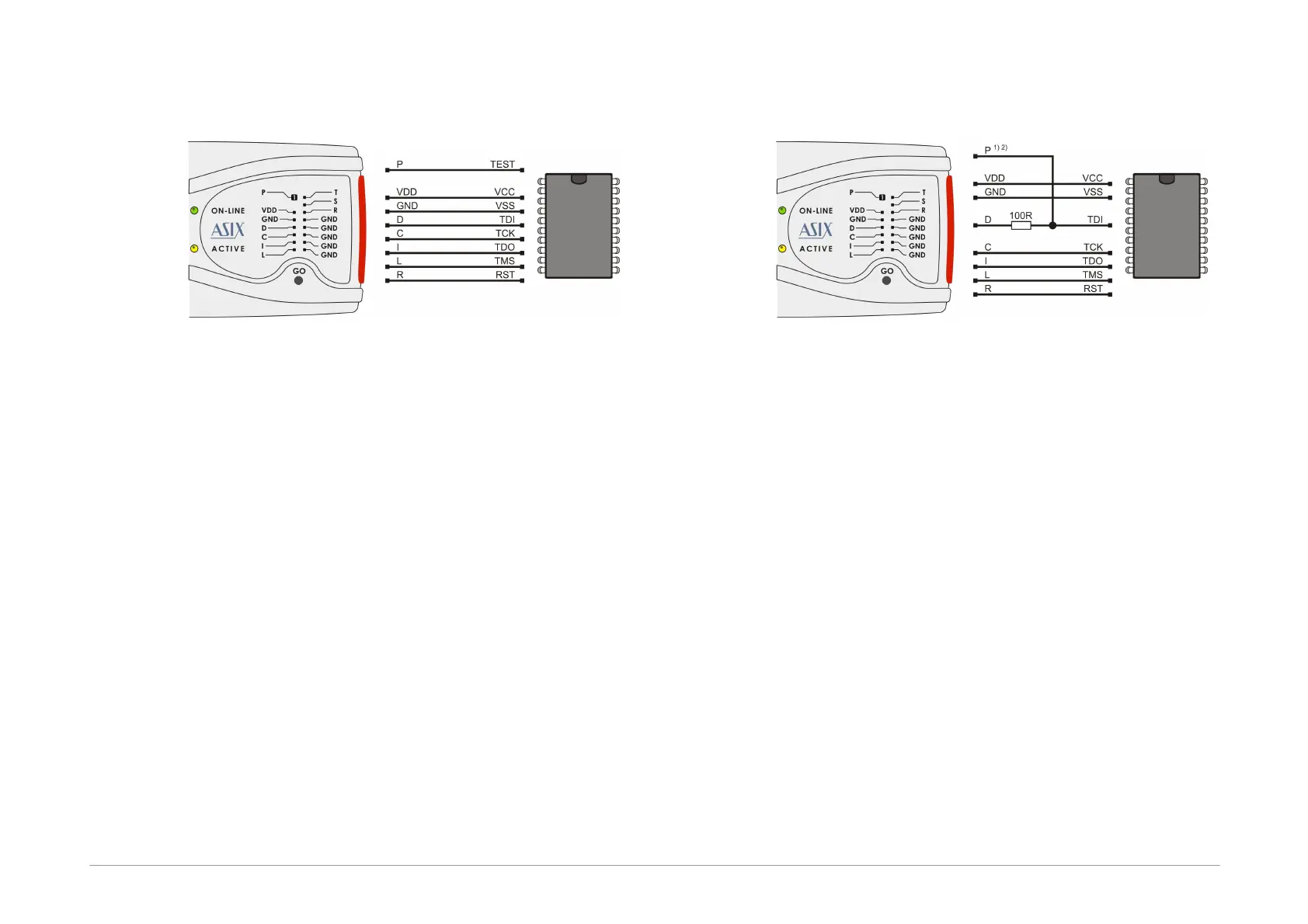

Fig.18: MSP430 / CC430 microcontroller, TEST pin, J TAG
interface
1) If the oscillator calibration values are saved in the
information memory and this memory is not going to
be re-programmed (erased) during programming, the
device should be programmed with the Cal Int. RC
(=calibrated internal RC oscillator) option selected in
the FORTE programmer settings window. In the
other cases Not Cal Int. RC (=not calibrated internal
RC oscillator) should be selected.
MSP430 / CC430 without TEST
Pin, JTAG Interface
Fig.19: MSP430 / CC430 microcontroller, no TEST pin, J TAG
interface
1) Pin P feeds the device with 6.5V during the fuse
programming. If the fuse is not to be programmed,
this pin does not have to be connected.
2) The MSP430F5xxx and CC430 devices lock in a
different way, i.e. pin P stays disconnected. Even the
100 R resistor can be left out in such a case.
3) If the oscillator calibration values are saved in the
information memory and this memory is not going to
be re-programmed (erased) during the programming
process, the device should be programmed with the
Cal Int. RC (=calibrated internal RC oscillator)
option selected in the FORTE programmer
settings window. In other cases Not Cal Int. RC
(=not calibrated internal RC oscillator) should be
selected.
