Page 25
ARM with SWD interface

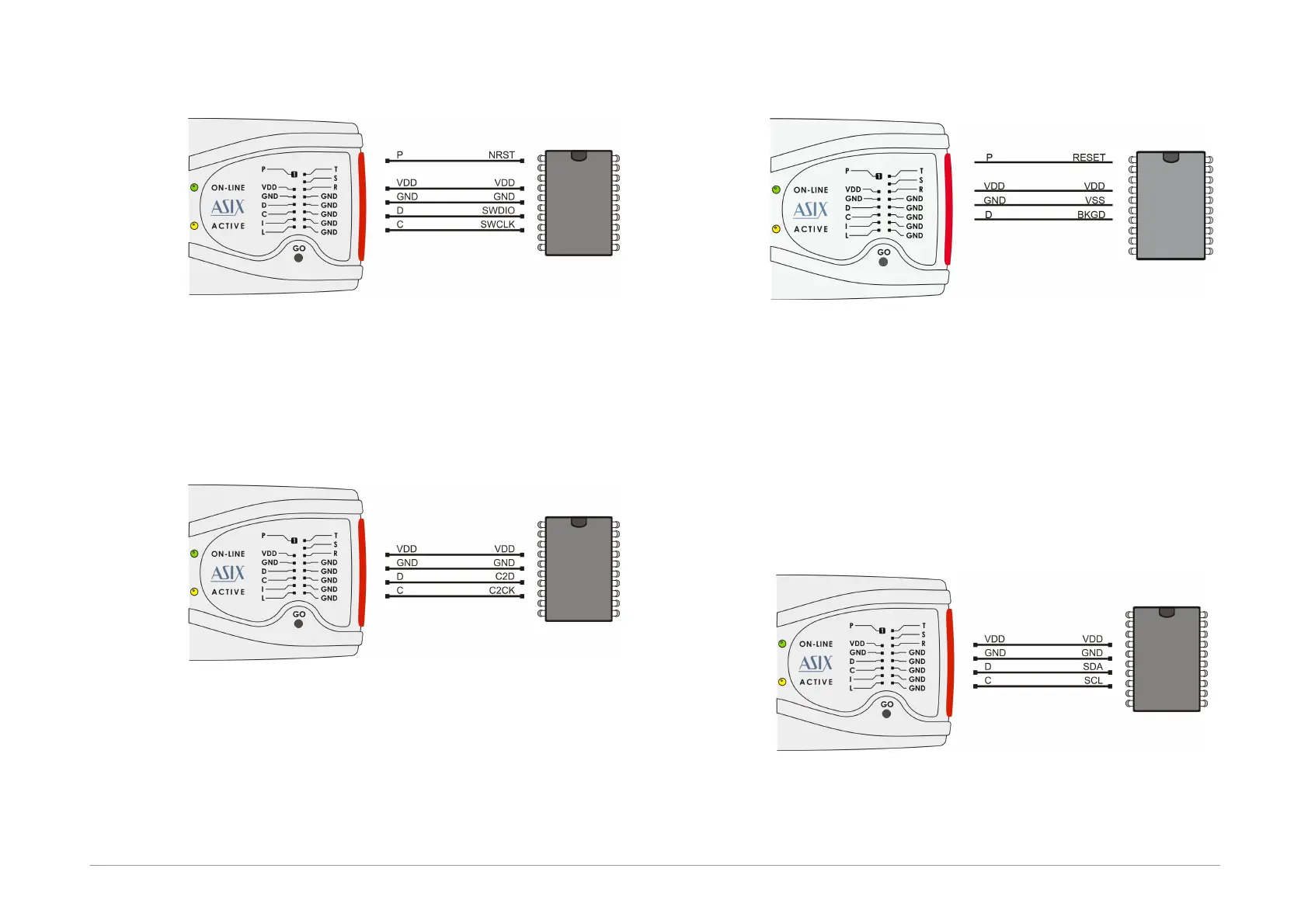

Fig.23: ARM with SWD interface
1) ARM microcontrollers which do not have SWD
interface are programmed via JTAG interface.
C8051 and EFM8 with C2
interface
Fig.24: C8051 and EFM8 with C2 interface
HCS08
Fig.25: HCS08 microcontroller
1) At some devices the programming mode cannot be
entered using their RESET signal, then power-on
reset is used. The programmer cannot do the power-
on reset when UP is controlled using commandline
parameters and external supply voltage is to be
used, in such a case the user have to ensure that the
BKGD pin is in log. 0 during connection of the supply
voltage.
I2C Memory Chips
Fig.26: I2C memory chips
