6.10. Warning, Caution, and Advisory Summary
WARNINGS
Presented when the EBD is operating on the internal battery. The countdown timer begins at 15
seconds and is then replaced by the ON BAT annunciation with the battery’s % charge remaining.
NOTE
If the battery temperature is less than 0° C, the countdown timer will begin at 10 minutes.

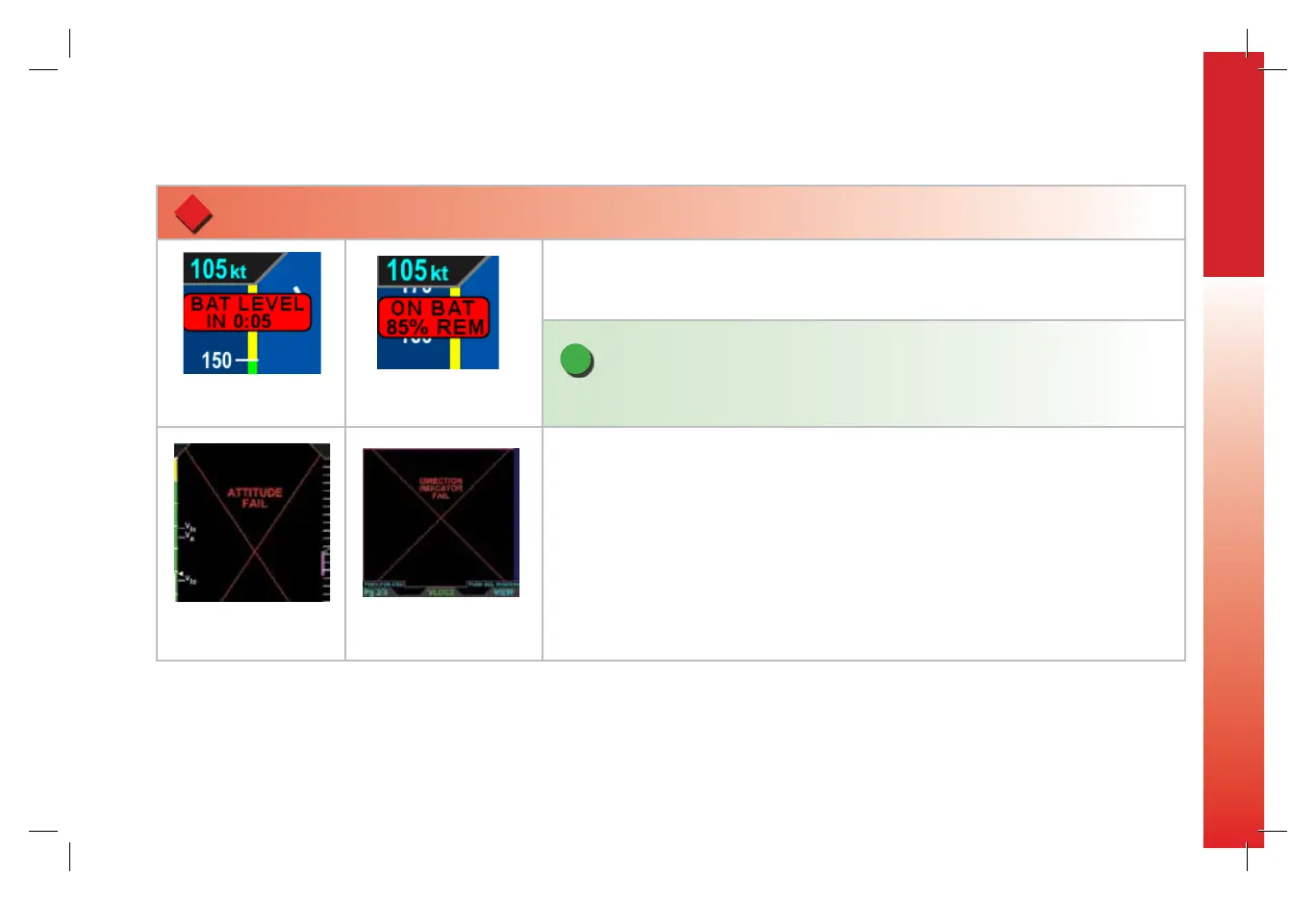

Figure 6-11
Attitude Fail
Figure 6-12
Direction Indicator Fail
Presented when the EBD has determined that the associated function is invalid or failed and should
not be used. The data is removed from the display and replaced by a red X over the aected display
feature.
Figure 6-9
Battery Countdown
Figure 6-10
Battery Charge Remaining
