CHAPTER 3 FLYING THE EVOLUTION BACKUP DISPLAY
Page 3-2
091-00027-001 REV A Evolution Backup Display Pilot’s Guide
Page 3-3
091-00027-001 REV A
3.1. Quick Controls Overview
Chapter 2 explains the EBD controls in detail. The following is a quick summary:
Knobs
(See Chapter 2, Section 2.2.1. for details)
The Top and Bottom control knobs all have a Home State, to which they will return after
10 seconds of inactivity. The Bottom Knob is the IAS Knob, and the Top Knob is the HDG
Knob.
• The current function of each knob is shown by its State, displayed
immediately to the left of the knob. If the knob state is shown in magenta,
turning the knob will change the value of the function shown. If the legend is
shown in cyan or green, turning the knob will have no eect.
• From the Home State, pressing the knob once will enable the current
function to be set (Knob State color changes from cyan to magenta).
Successive presses of the knob will cycle through the functions that knob can
control. When the function you want to change is shown in magenta, turning
the knob will change its value.
• The Bottom Knob sets the Indicated Air Speed (IAS).
• The Top Knob sets Heading (HDG), Selected Altitude (ALT) and Barometric
Pressure Setting (BARO).
• Pressing and holding a knob syncs the selected function.

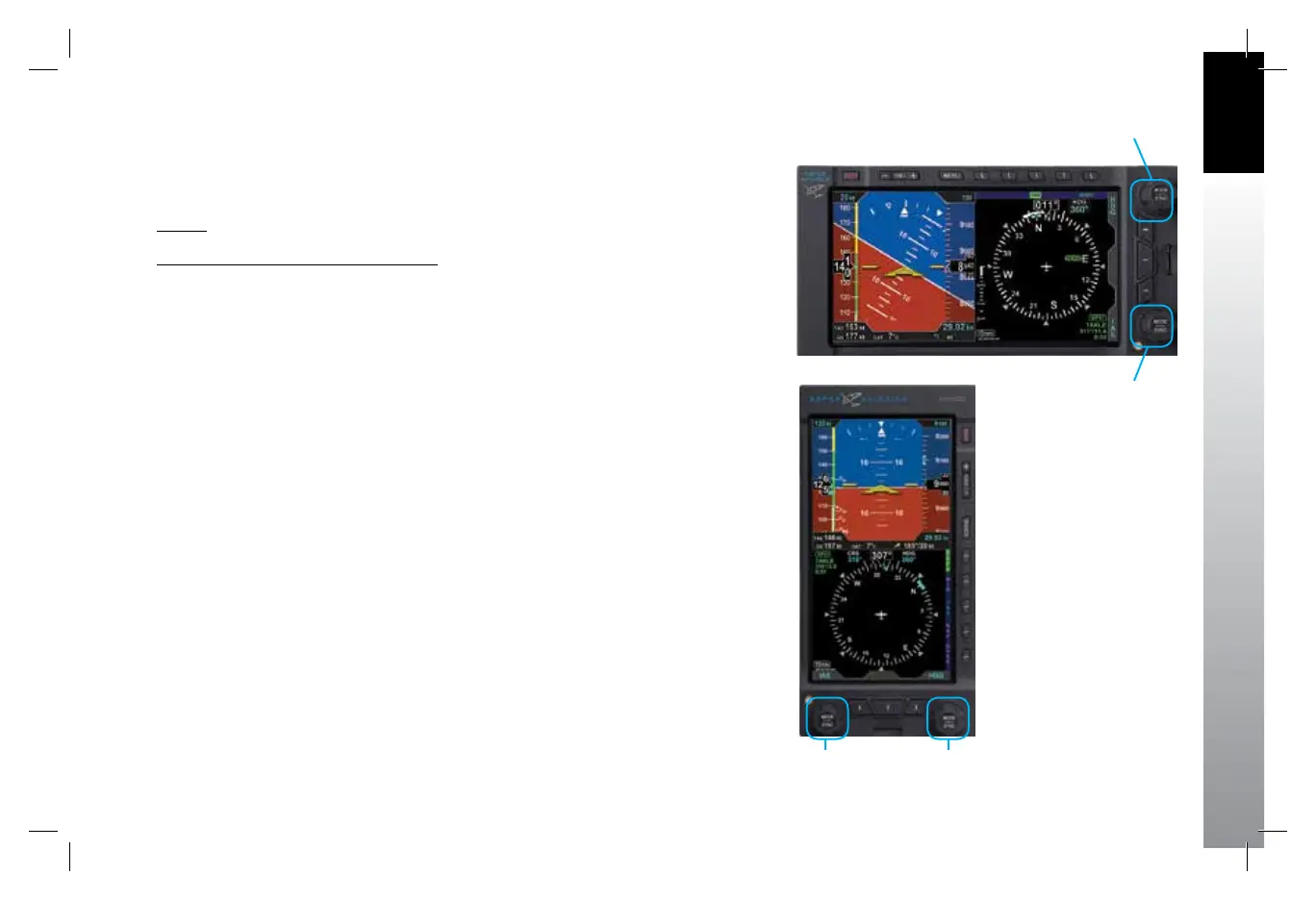

IAS Knob
HDG Knob
IAS Knob HDG Knob
