When a GPS source’s position data are invalid or no longer available, an amber
annunciation, GPS1, GPS2, or RSM GPS, is shown in the lower left corner of the
Navigation Display to indicate which has failed (Figure 4-99).
4.4.6. Ground Track Marker
When congured with a GPS that provides ground track data, a Ground Track Marker is
displayed on the compass scale to indicate the aircraft’s ground track. This marker may be
used to compensate for wind drift during ight (Figures 4-100 and 4-101). The Ground
Track Marker is removed from the display when ground track is not available or invalid.

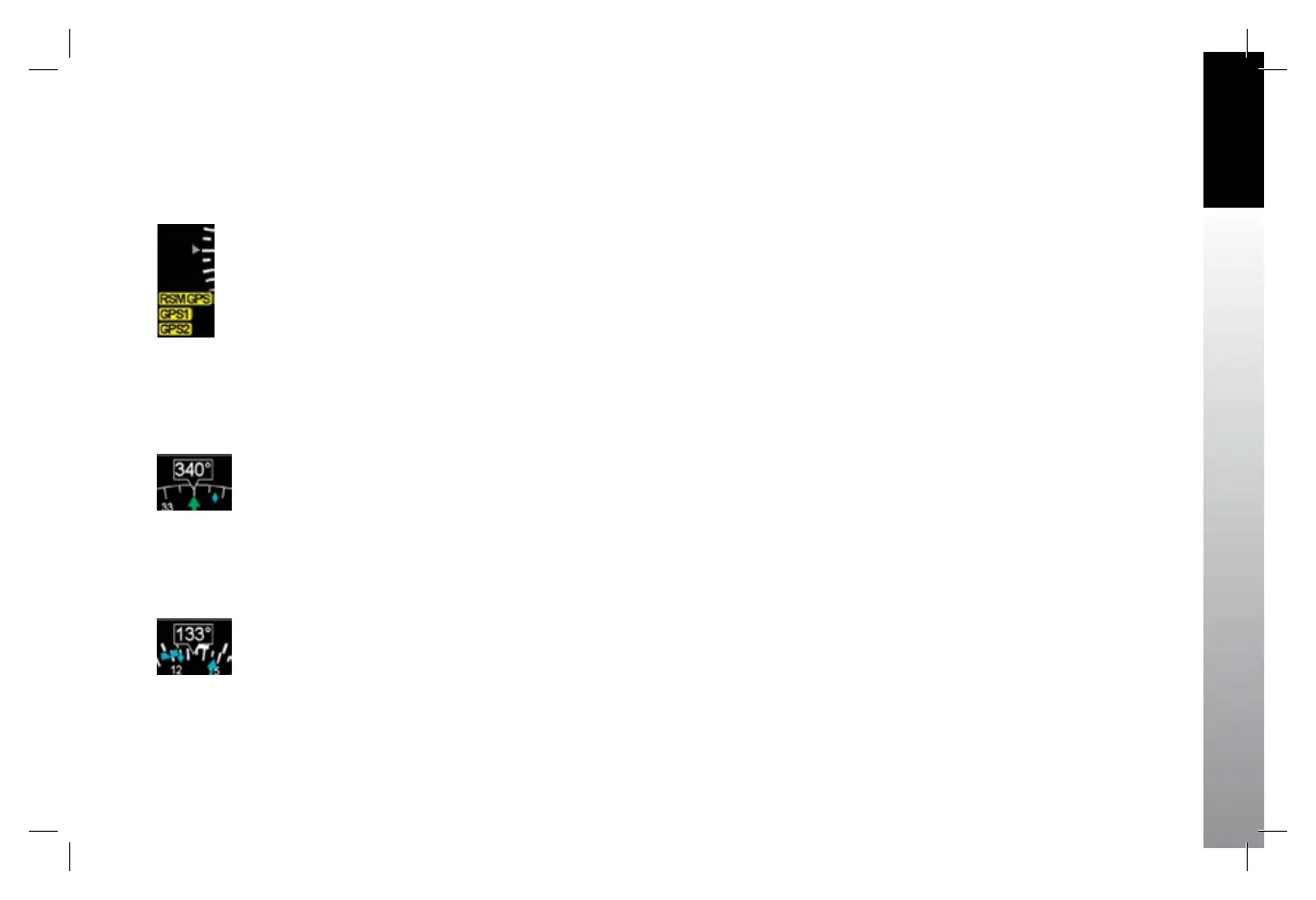

Figure 4-99
Invalid or Failed GPS Annunciations
Figure 4-100
ARC Compass Mode, Ground Track Marker
Figure 4-101
360° Compass Mode, Ground Track Marker
