2.3.2. Attitude Display
The Attitude Display includes an Attitude Director Indicator (ADI), an Airspeed tape, an
Altimeter tape, an Altitude Alerter, and Radio Altitude (Table 2-9 and Figure 2-16), (see
Chapter 4, Reference Guide for more details).
ATTITUDE DISPLAY
16 Attitude Display
17 Aircraft Reference Symbol
19 Roll Pointer
20 Slip/Skid Indicator
21 Altitude Tape
22 Selected Altitude Field
23 Altitude Alerter
24 Numerical Altitude Value, Altitude Drum/Pointer
25 Altitude Trend Vector
26 Altitude Bug
32 Airspeed Tape
33 Selected Airspeed Field
34 Airspeed Bug
35 Numerical Airspeed Value, Airspeed Drum/Pointer
Table 2-9
Attitude Display Components
33 22
32
35
16
19
20
21
17
23
34
26
25
24

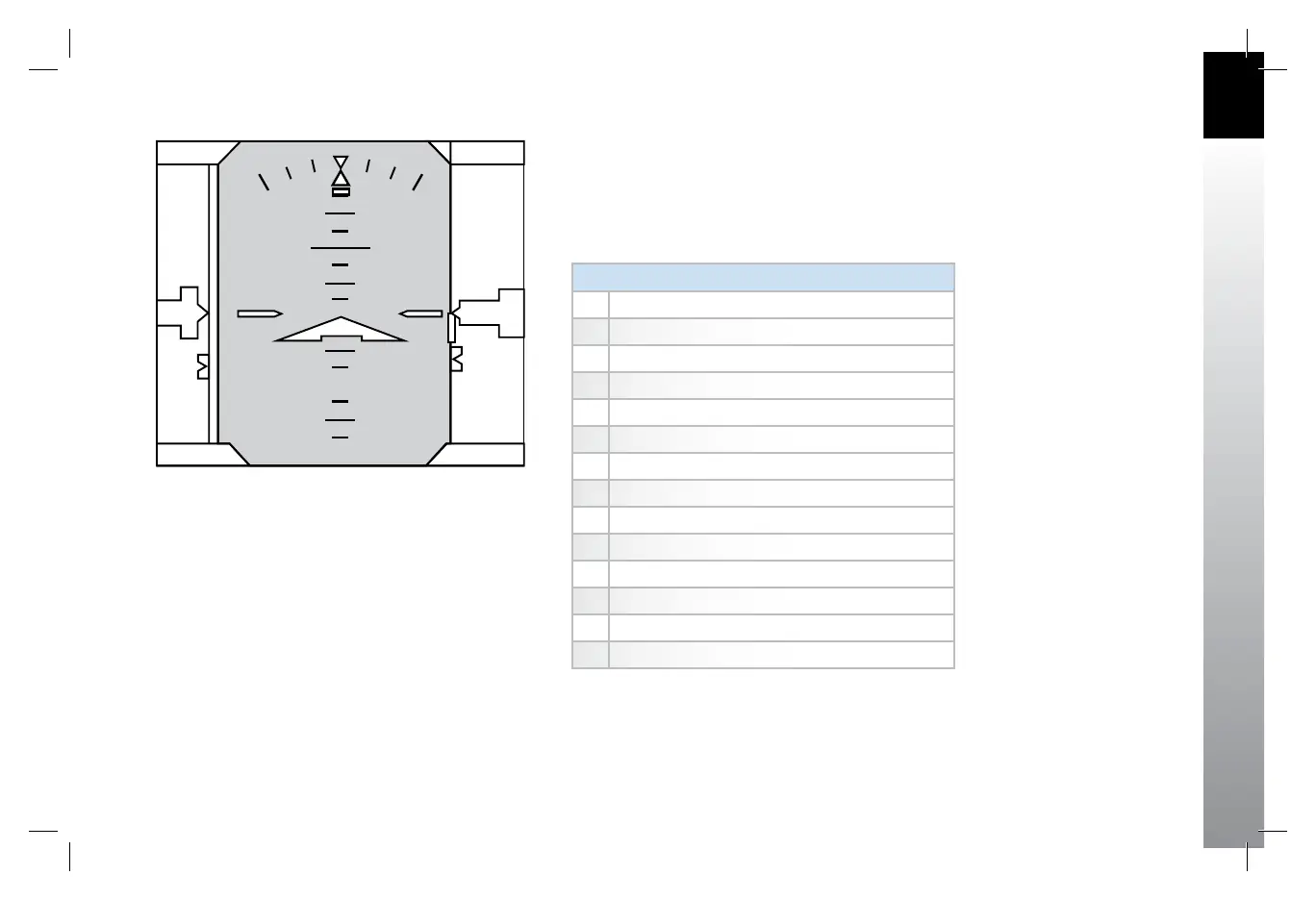

Figure 2-16
Attitude Display Components
