CHAPTER 2 CONTROLS AND DISPLAY
Page PB
091-00027-001 REV A Evolution Backup Display Pilot’s Guide
Page 2-1
091-00027-001 REV A
Chapter 2
Controls and Display
The Evolution Backup Display (Figure 2-1) is a at-panel
LCD primary ight instrument that presents the pilot
with all of the information from the traditional six-pack of
mechanical instruments: Airspeed, Attitude, Altitude, Turn
Coordinator, Directional Gyro (DG), and Vertical Speed
Indicator (VSI). Modern technology and standard EFIS
symbology enable the consolidation of all six instruments
into a single display, tightening the pilot’s instrument scan
and reducing pilot workload.
The display is divided into three parts: Attitude Display, a Data Bar below
the Attitude Display, and Navigation Display.
This chapter gives an overview of all the instruments, information, and
controls of the EBD. Table 2-1 and Figure 2-3 identify the controls and
display orientation (see Chapter 4, Reference Guide for more details).

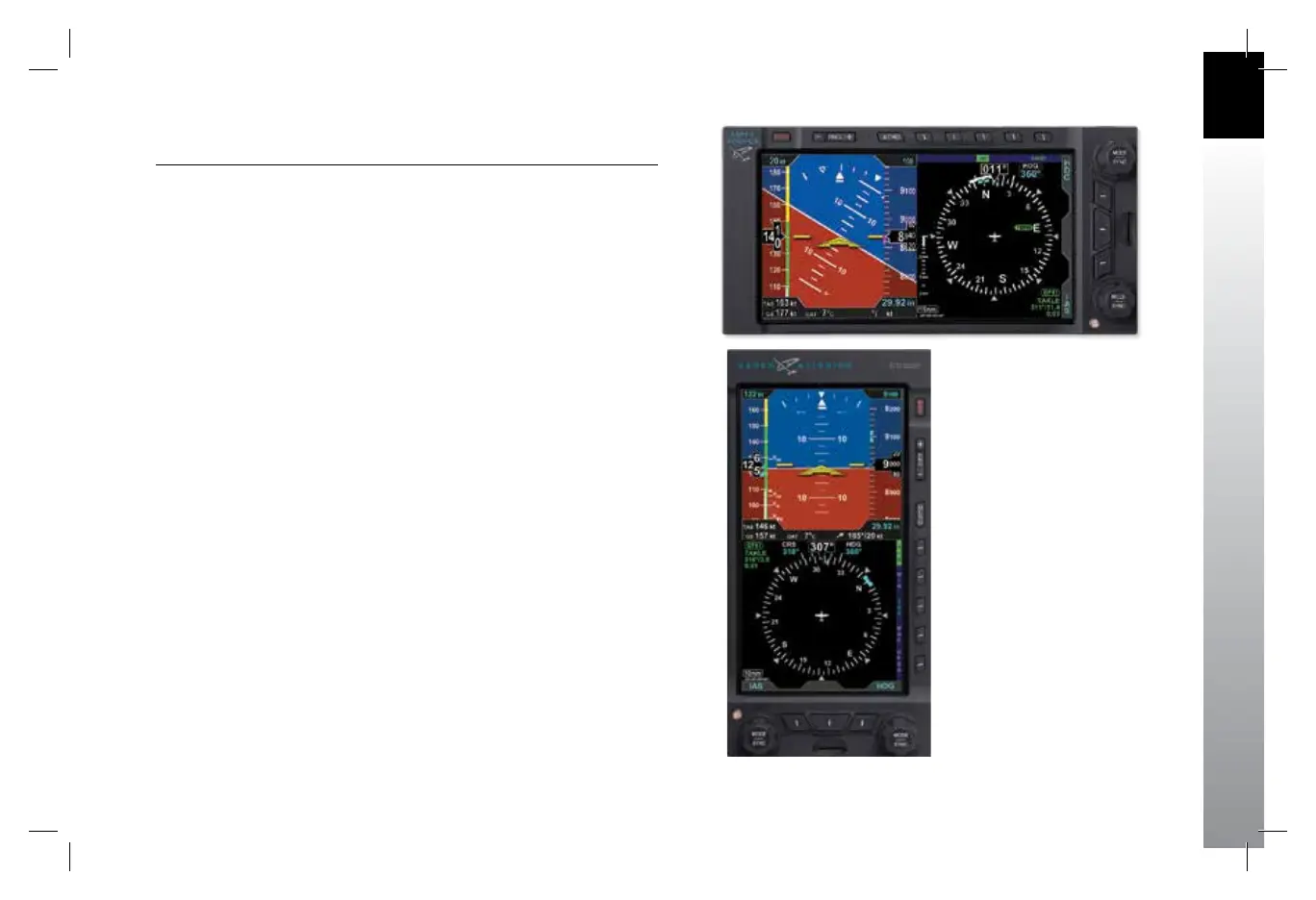

Figure 2-1
Evolution Backup Display, Landscape
FIigure 2-1a
Evolution Back up Display Basic, Portrait
