2.2.1.3. SYNC Function
1. Press the Knob until its state shows the value you want to set in
magenta.
2. Press and hold the Knob for approximately one (1) second to SYNC
the eld’s value according to the rules shown in Table 2-2 and
Figure 2-4.
3. After 10 seconds of inaction, the knob reverts to its home state (IAS
or HDG), and the labels and eld turn to cyan (inactive).
Top Knob
SYNC Action
ALT
BARO Set to 29.92 in Hg or 1013 mB.
HDG Set to the current heading.
Top Knob -Current State default setting: HDG
Cyan indicates eld is inactive.
IAS Set to the current indicated airspeed.
Bottom Knob - Current State default setting: IAS
Cyan indicates eld is inactive.
Table 2-2
Bottom and Top Knob SYNC Description

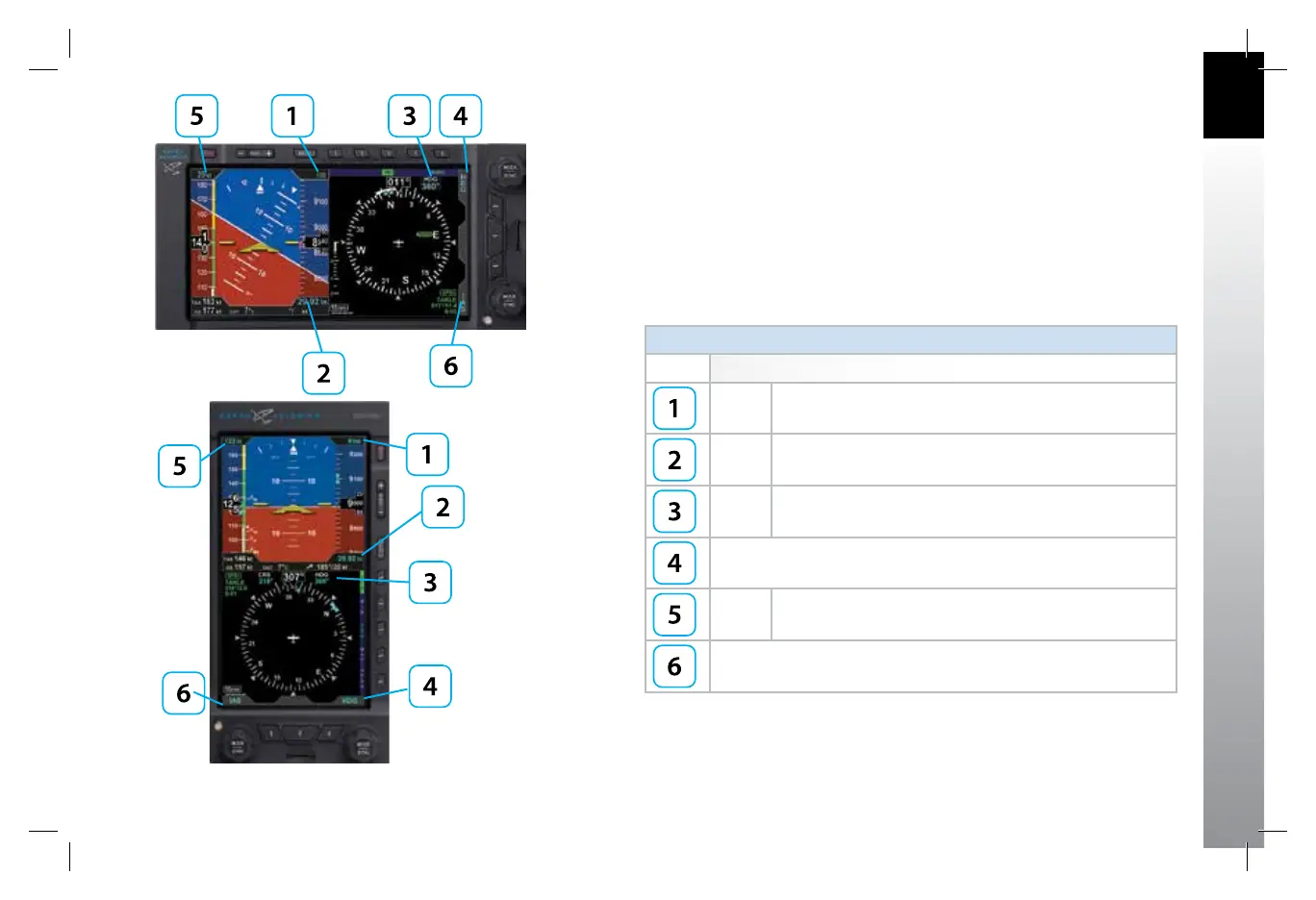

Figure 2-4
Bottom and Top Knobs and
Corresponding Fields
Figure 2-4a
Evolution Back up Display Basic, Portrait
with call outs
