4.2.2.1. Airspeed Display
In some congurations, such as a stand-alone EBD, the airspeed tape can be turned o
at the pilot’s discretion to facilitate screen declutter. This setting will be retained when
the EBD system is turned o then powered on again.
Hide/Display Airspeed Tape
1. Press MENU Button.
2. Rotate Top Knob until rst Menu Key displays TPS (Figure 4-9).
3. Press TPS Menu Key.
TPS label and EDIT VALUE label (above Top Knob) appear in magenta.
4. Rotate Top Knob to the desired value: ENABLE or DISABLE (Figure 4-10).
5. Press MENU Button to exit.

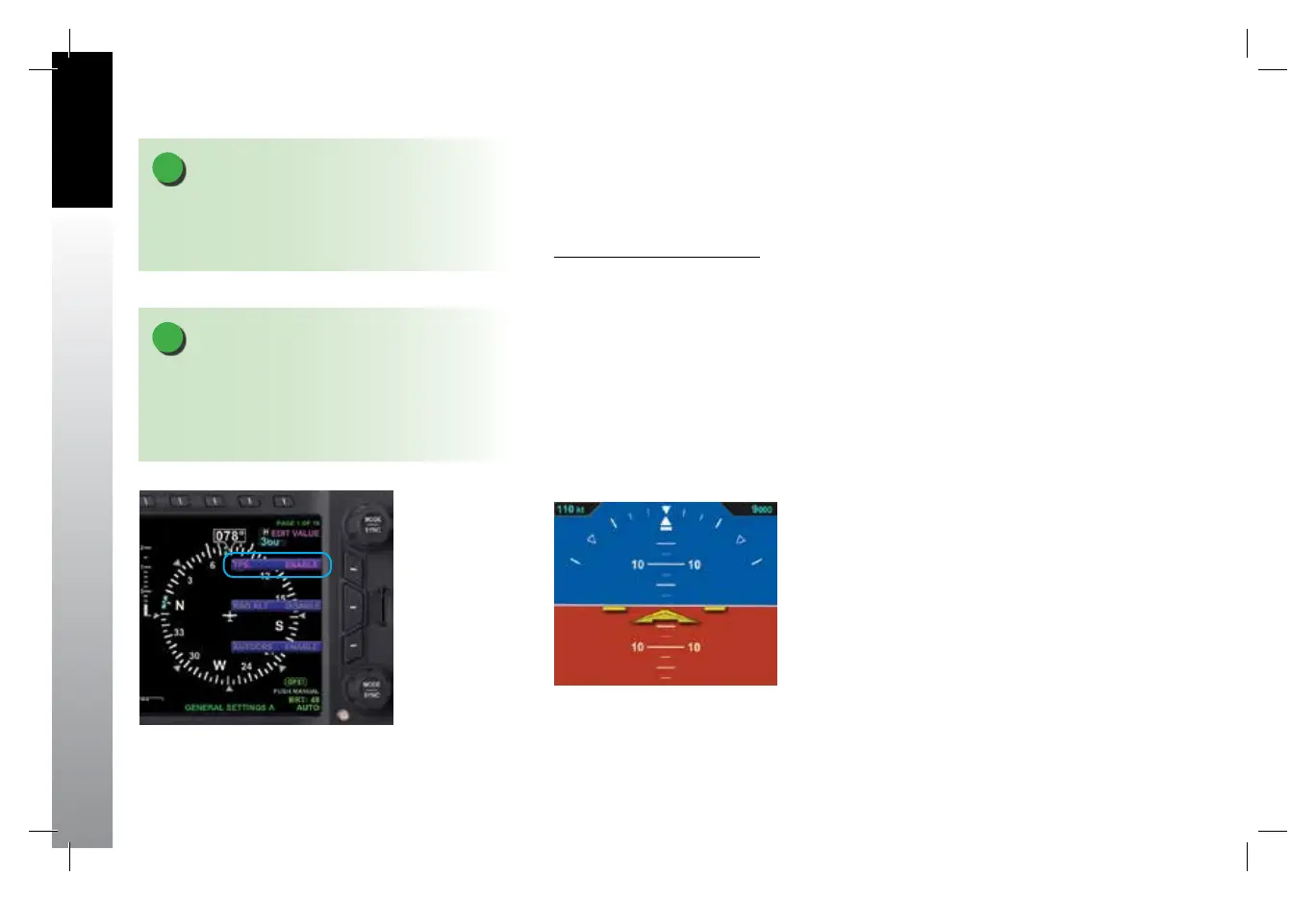

Figure 4-9
Editing Airspeed Tape Display
Figure 4-10
Airspeed Tape Disabled
NOTE
The Altitude Tape can also be turned off for screen
declutter. Setting will be retained when EBD is
turned off.
NOTE
When the Airspeed Tape is disabled, the numerical
display of the selected airspeed remains An installer
can disable and remove the Selected Airspeed Field
from the display.
