2.3.4. Navigation Display
The right half of the Landscape EBD and bottom of the Portrait EBD is the Navigation
Display (Table 2-11 and Figure 2-21), which shows a wide range of navigation
information and ight data, including:
• Directional Gyro (DG) and Heading Bug.
• 360° and ARC Compass rose display modes.
• Numeric displays of current magnetic heading and selected heading (HDG).
• Ground Track Marker.
• Vertical Speed Indicator (VSI) tape.
• Rate of Turn Indicator.
• Situational Awareness Map display.
• GPS annunciations (TERM, APPR, WPT, and MSG).
• Caution annunciations for abnormal GPS status.
NAVIGATION DISPLAY
44 Navigation Display 56 Vertical Speed Numerical Value
45 Ownship Symbol 57 Vertical Speed Indicator Tape
48 Rate of Turn Indicator 66 Bottom Knob State
49 Ground Track Marker 67 Top Knob State
50 Numerical Direction Indicator 68 Hot Key Legend
52 Selected Heading (HDG) Field 69 Navigation Display Range
53 Heading Bug 70 Navigation Display Declutter Level
Table 2-11
Navigation Display Components
66
70
69
50
44
53
49
48
45
52
57
68
67

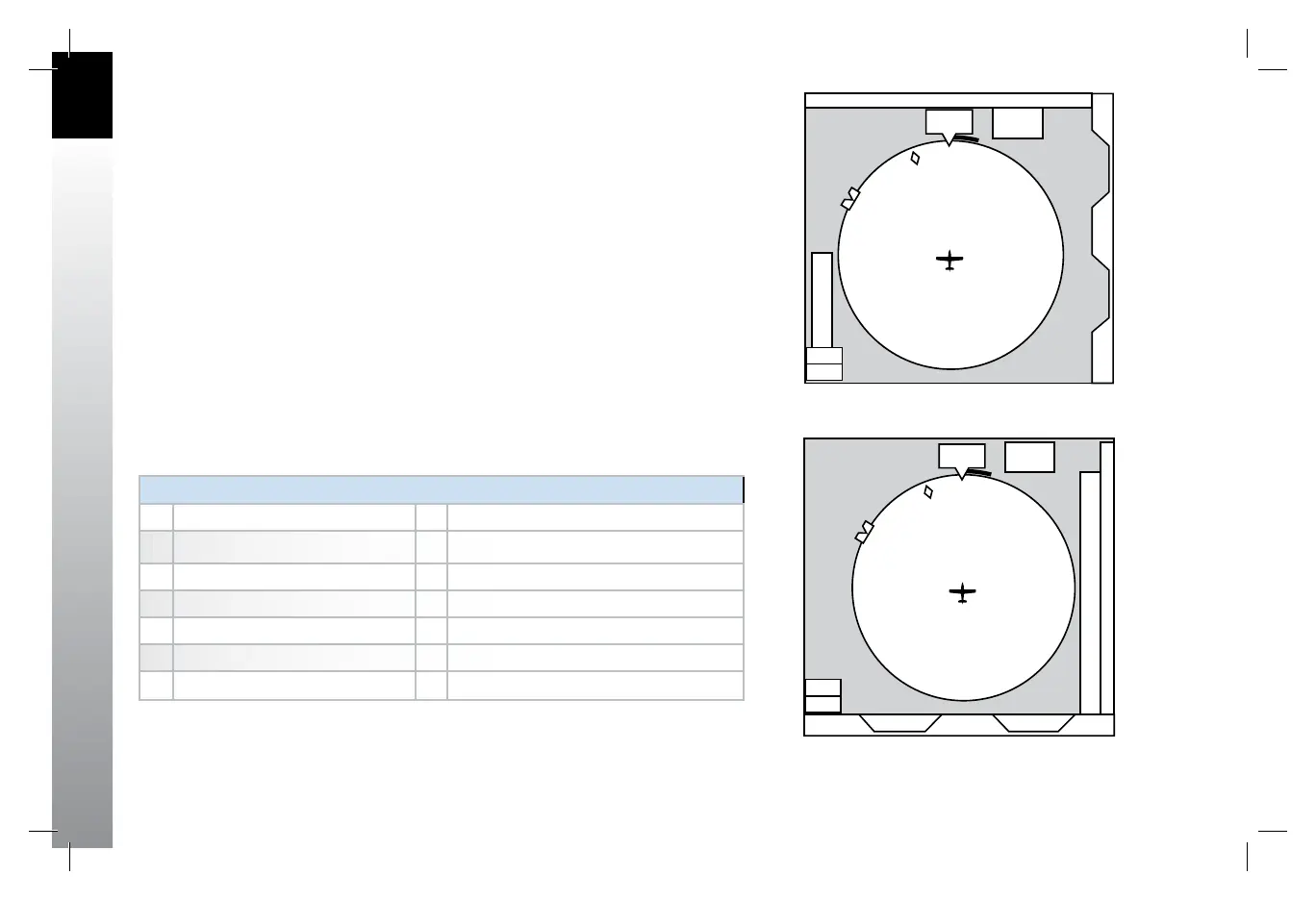

Figure 2-21
Navigation Display Components
66
70
69
50
44
53
49
48
45
52
57
68
Figure 2-21a
Portrait Navigation Display Components
