2.2.4. Menu
The MENU button is used to access the Evolution Backup Display’s Menu to change
options, and also to change the EBD’s display brightness.
2.2.4.1. Using the Menus
Press the MENU button to activate the Menu (Ref. 3). The current menu page name is
shown on the bottom center of the Navigation Display. Directly below the menu page
name is a segmented menu page bar, giving a graphical representation of the current
page relative to the total number of menu pages. The current menu page number is
shown in the upper-right corner of the Navigation Display.
Menu Page 1, General Settings A, is the one most commonly used in ight. It allows
the pilot to display or hide the Vspeeds on the airspeed tape. The other menu pages
are used for barometric pressure and Outside Air Temperature (OAT) units of measure
settings, Auto Range, Vspeeds and map customization, EBD power management,
product version information, and information and option settings, relative to your
specic equipment and installed options.
The Menu operates either in the Navigation or Edit mode, as indicated by the label
directly to the left of the Top Knob. When the MENU button is rst pressed, the Main
Menu is in the Navigation mode, indicated by the magenta label SEL PAGE directly to
the left of the Top Knob (Figure 2-8). When in the Navigation mode, rotating the Top
Knob navigates through the menu pages. Rotate the Top Knob clockwise to advance to
the next menu page, counterclockwise to return to the previous page.

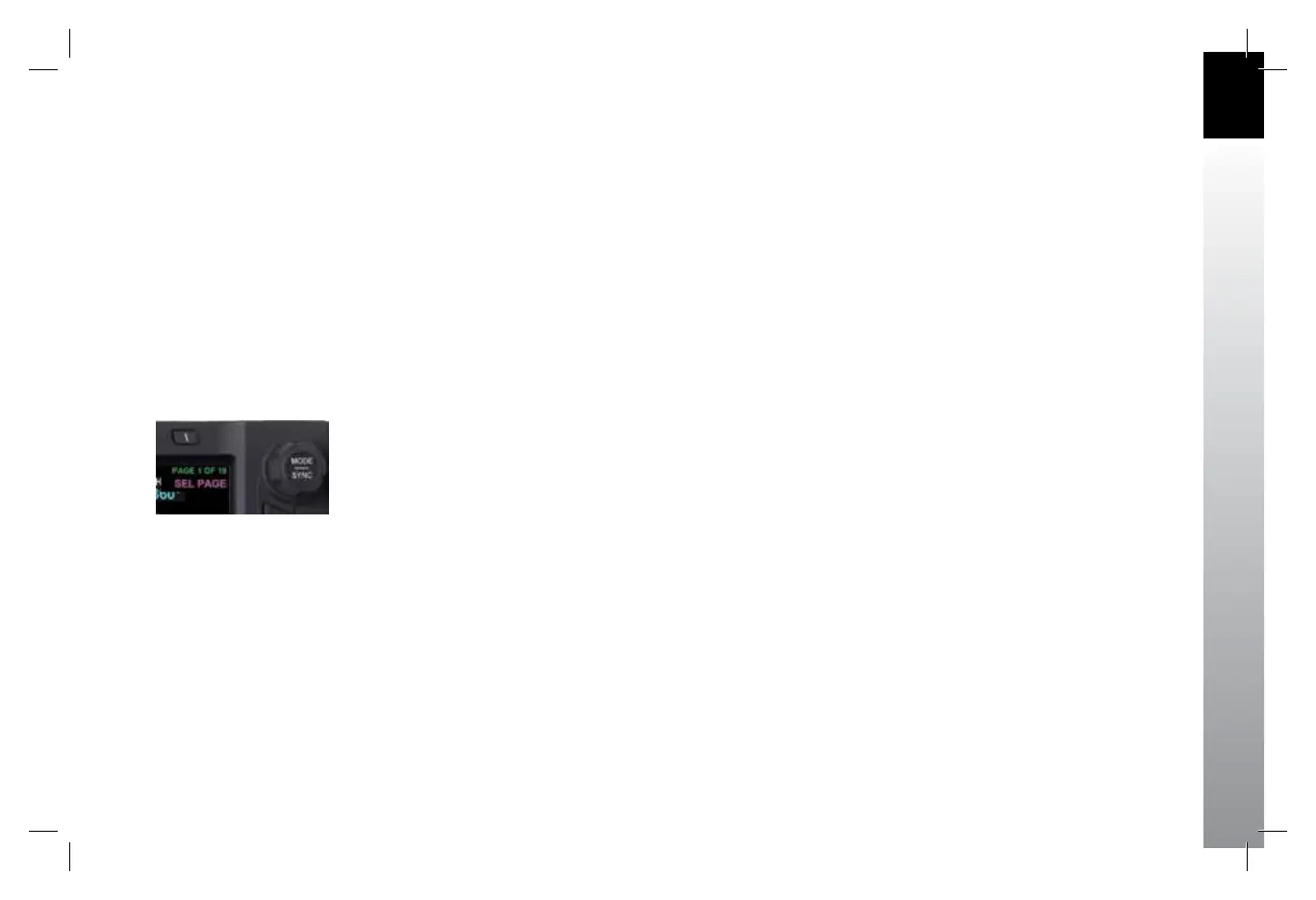

Figure 2-8
Menu Navigation Mode
