Each Menu Page has up to ve selectable options, each adjacent to one of the ve
Hot Keys which double as Menu Keys when the Menu is active (Item 1 of Figure 2-9
and Table 2-5). After navigating to the Menu Page containing the option you want to
change, press the Menu Key adjacent to that option label, which initiates the Menu’s
Edit mode. When the Menu is in the Edit mode, the label, EDIT VALUE, is shown to the
left of the Top Knob in magenta (Figure 2-10), and the label of the item selected for
editing is also shown in magenta. Rotate the Top Knob to change the value of the
selected item. When nished, either select another displayed Menu option to change,
or press the Top Knob to exit the Edit mode and return to Navigation mode to select
another Menu Page.
When you are nished changing Menu options, press the MENU Button to exit.
Menu Options

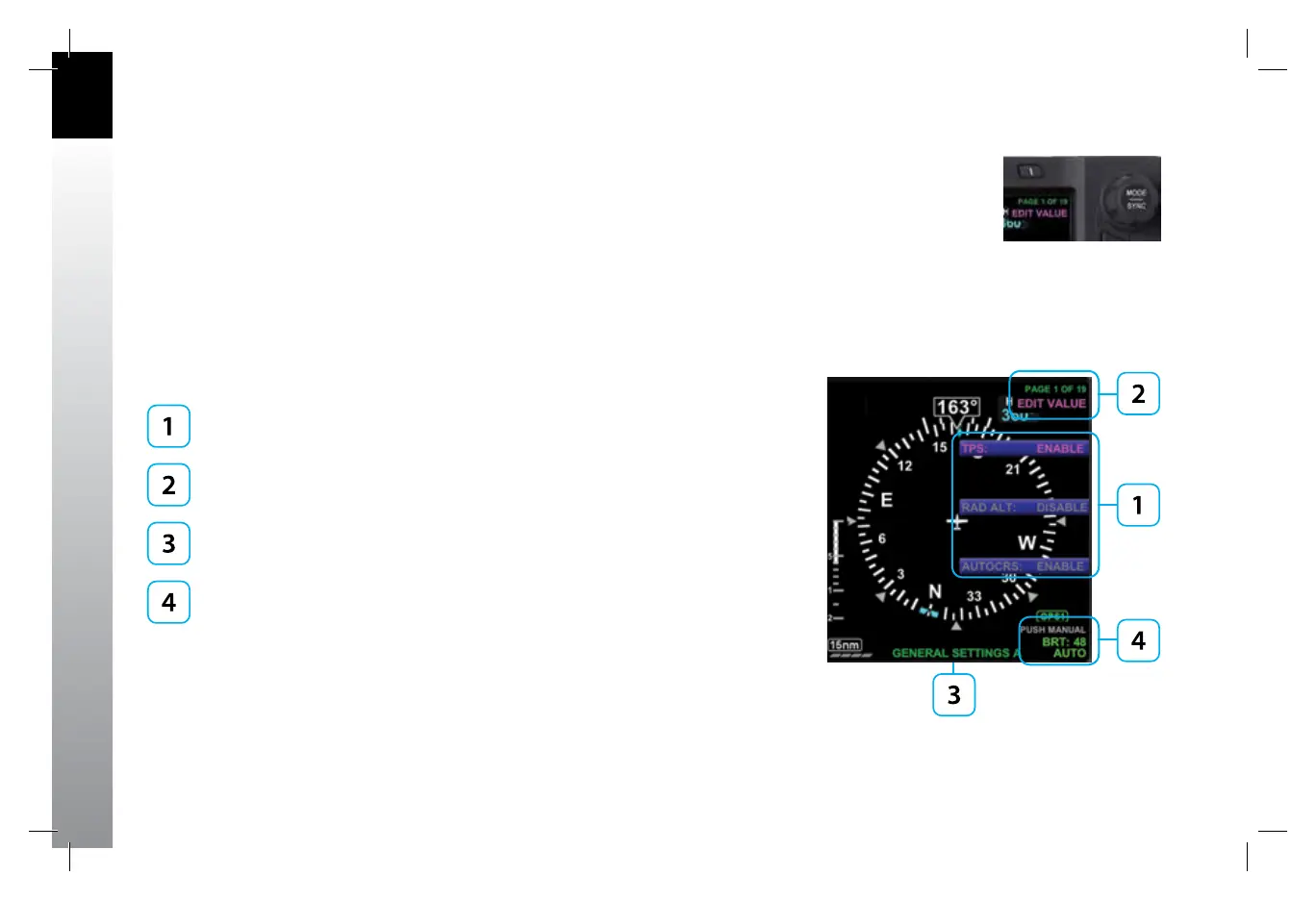

Menu Page number and mode (Navigation mode shown)
Menu Page Name
Brightness Control (see Section 2.2.4.2.)
Table 2-5
Menu
Figure 2-10
Main Menu
Figure 2-9
Menu Edit Mode
