CHAPTER 6 EXPANDED EMERGENCY AND ABNORMAL PROCEDURES
Page 6-20
091-00027-001 REV A Evolution Backup Display Pilot’s Guide
Page 6-21
091-00027-001 REV A
Evolution Backup Display Pilot’s Guide
CAUTION
Figure 6-18
Altitude Caution
Presented to indicate the aircraft is reaching (steady) or deviating (ashing) from the preset altitude.
May be accompanied by a one-second steady tone from an optional tone generator
1
.
Presented when a congured GPS source’s data is invalid or unavailable. GPS# or RSM REVERSION
annunciations indicate the current GPS Basemap source
Presented when the PFD’s Selected CDI Navigation Source is a GPS and that GPS is sending an
Integrity alert. See the GPS AFMS for more information
Figure 6-25
Altitude Caution
Presented to indicate the aircraft is reaching (steady) or deviating (ashing) from the preset altitude.

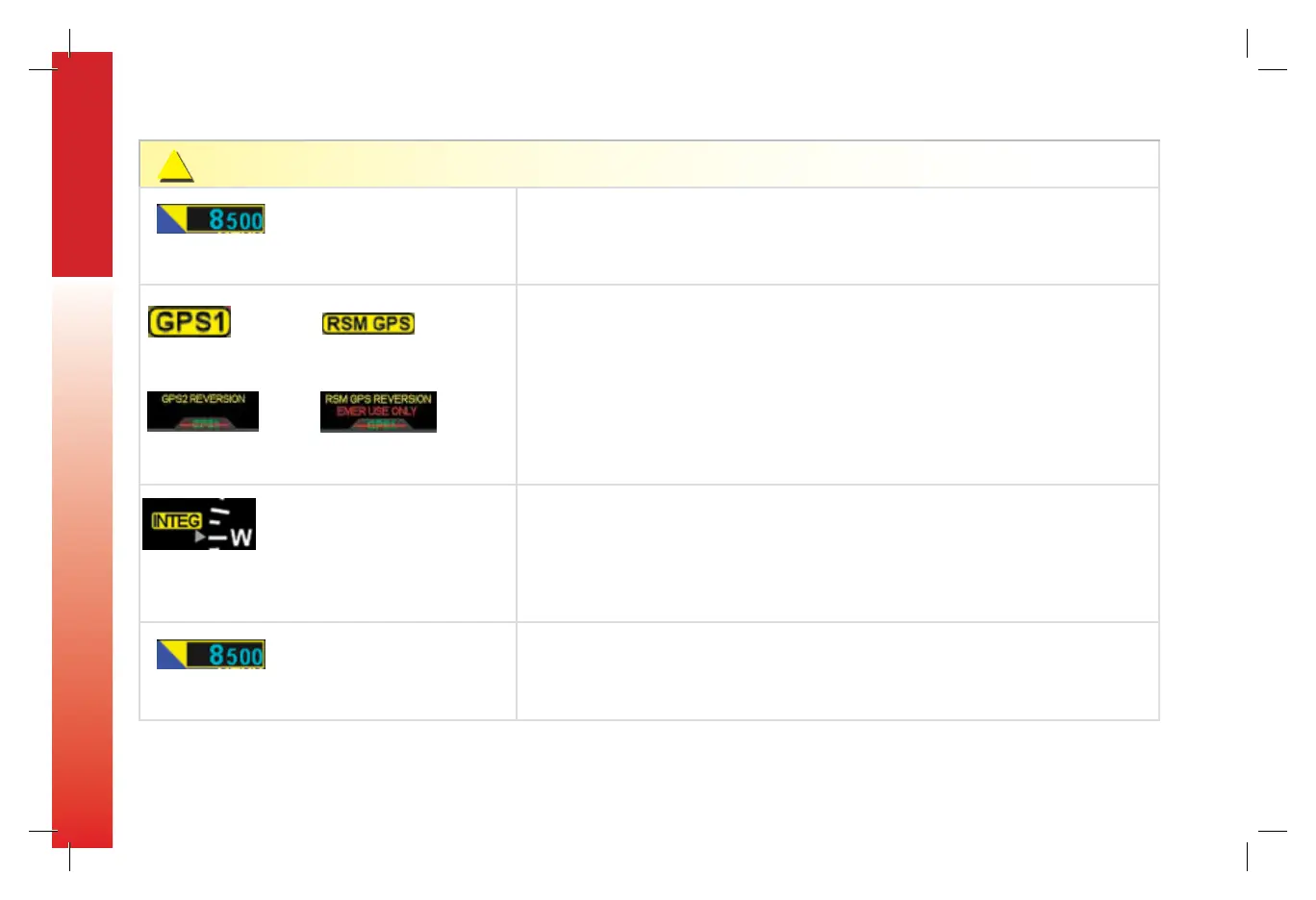

Table 6-3 Caution Annunciations
Figure 6-21
RSM GPS
Figure 6-22
GPS Reversion
Figure 6-23
GPS Reversion Emergency
Figure 6-24
GPS Integrity Flag
Figure 6-20
GPS Invalid
