Installation
EN
Profile with thermal isolation
Attention!
Omission of reworking can result in a malfunction of the product: The components listed below must
be reworked with use of profiles with thermal isolation.
Aluminium as a stopping edge can destroy the components: Aluminium abrasion can destroy the lock
or striking plate.
Reworking profile slugs
When the door is closed, the latch and control latch must slide over a level surface (“Self-locking”, page 54).
with some door frames, such as those with thermal isolation, a profile slug (Pic. 12- 1) which has a disruptive
effect on the sliding surface may be present. This profile slug must be removed in the area of the latch and
the control latch. ASSA ABLOY Sicherheitstechnik GmbH recommends using a sliding piece (Pic. 12– 2), to
create a level sliding surface..
1 Cover the existing slots or other areas of unevenness.
2 Remove the slugs. The profile slug in the latch area must be removed down to the fastening surface.
3 Check whether the latch and auxiliary latch bolt can slide unimpeded over a level surface to the
locking position when the door is closed.
The profile slugs are smooth and the locking function is assured.
Process profile slugs Use a sliding piece
1
2
A

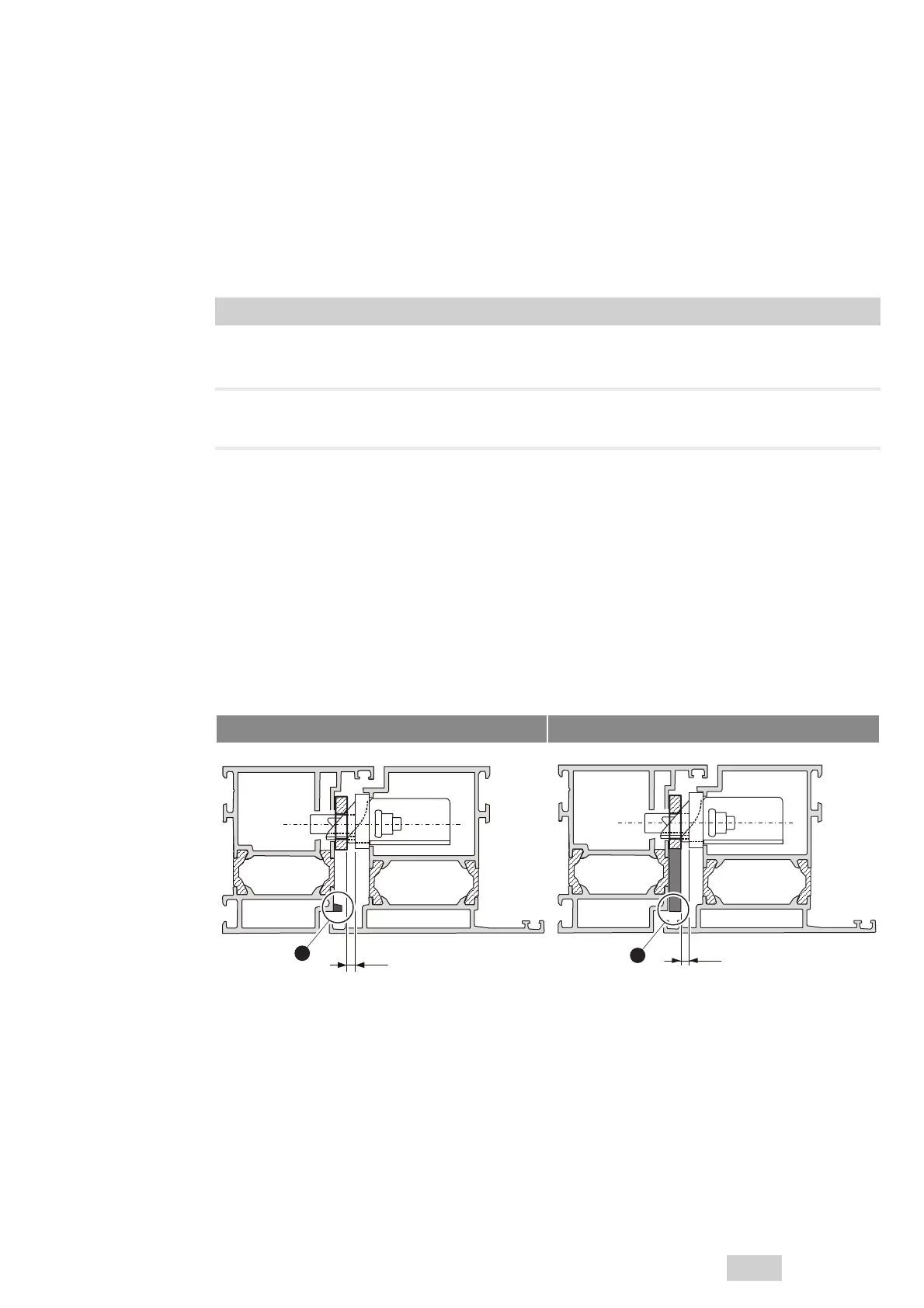

Pic. 12 :
Rework profile slugs and
use sliding piece
Rebate gap
Rebate gap
