Flexible lead cover
The flexible lead cover for cable guidance from the door leaf to the frame profile (or wall) mentioned in
the chapter “Installing and connecting the cable”, page61 is not included in the scope of supply of the
motorised multi-point lock 519. The lead cover can be ordered separately:
effeff – flexible lead cover 10318 – length 18 cm Order number: 1 0 3 1 8 – – – – – – – – 0 0
effeff – flexible lead cover 10318 – length 30 cm Order number: 1 0 3 1 8 – 3 0 – – – – – 0 0
effeff – flexible lead cover 10318 – length 40 cm Order number: 1 0 3 1 8 – 4 0 – – – – – 0 0
effeff – flexible lead cover 10318 – length 60 cm Order number: 1 0 3 1 8 – 6 0 – – – – – 0 0
effeff – flexible lead cover 10318 – length 80 cm Order number: 1 0 3 1 8 – 8 0 – – – – – 0 0
effeff – flexible lead cover 10312-10 Order number: 1 0 3 1 2 – 1 0 – – – – – 0 0
Concealed installation in the door frame
effeff – flexible lead cover 10312-20 Order number: 1 0 3 1 2 – 2 0 – – – – – 0 0
Concealed installation in the door frame, with integrated cable tracking
effeff – flexible lead cover 10314-10 Order number: 1 0 3 1 4 – 1 0 – – – – – 0 0
Concealed installation in the door frame, clamp plug connection and flexible anti-tear cable
Panic bars

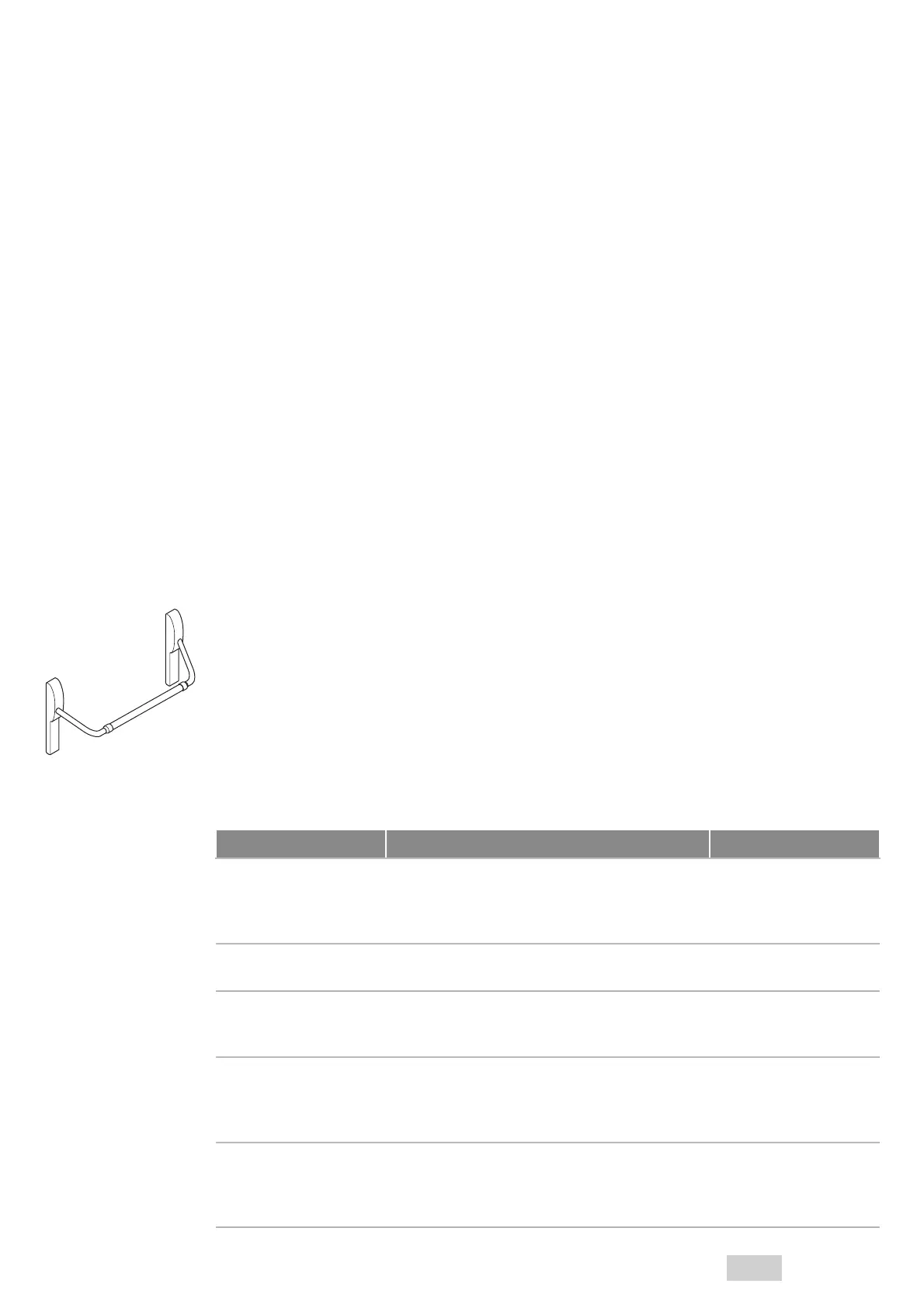

Accessories for model 519E... in accordance with DIN EN 1125
effeff – panic bar 8000, silver, without PZ hole 8 0 0 0 – 0 0 – 2 1 0 0 – –
effeff – panic bar 8000, silver, for Euro profile cylinder, distance 92 mm 8 0 0 0 – 1 0 – 2 1 0 0 – –
effeff – panic bar 8000, silver, for Euro profile cylinder, distance 72 mm 8 0 0 0 – 2 0 – 2 1 0 0 – –
effeff – panic bar 8000, black, without PZ hole 8 0 0 0 – 0 0 – 1 1 0 0 – –
effeff – panic bar 8000, black, for Euro profile cylinder, distance 92 mm 8 0 0 0 – 1 0 – 1 1 0 0 – –
effeff – panic bar 8000, black, for Euro profile cylinder, distance 72 mm 8 0 0 0 – 2 0 – 1 1 0 0 – –
Electrical accessories
Identifier Description Order number
Power Supply 1003-24-4 Power supply 24 V / 4 A continuous current
stabilised output voltage
for installation in junction boxes or
on top-hat rail
1 0 0 3 –24 – 4 – – – – 1 0
Cable the maximum cable length depends on the mains
adapter (“Technical data”, page76)
Z 1 9 – K A B – – – – – – 0 0
UII control module Universal Interconnectivity Interface: For provision
of additional functions such as monitoring con-
tacts, time settings and additional door contacts
9 0 1 – I C 4 – – – – – – 0 0
Fire protection module In addition to the UII control module, the fire pro-
tection module is required for fire protection doors
so that the lock can be switched to locked status in
the event of a fire. The panic function remains intact.
5 1 9 Z B F S – – – – – – 0 0
Smoke detector Visual smoke detector for connection to the
smoke detect or input on the UII control module,
for
use on fire and smoke protection doors.
6 0 0 6 0 – – – – – – 0 0
Order flexible lead
cover
