Associated Research OMNIA II 8207 User Manual

186

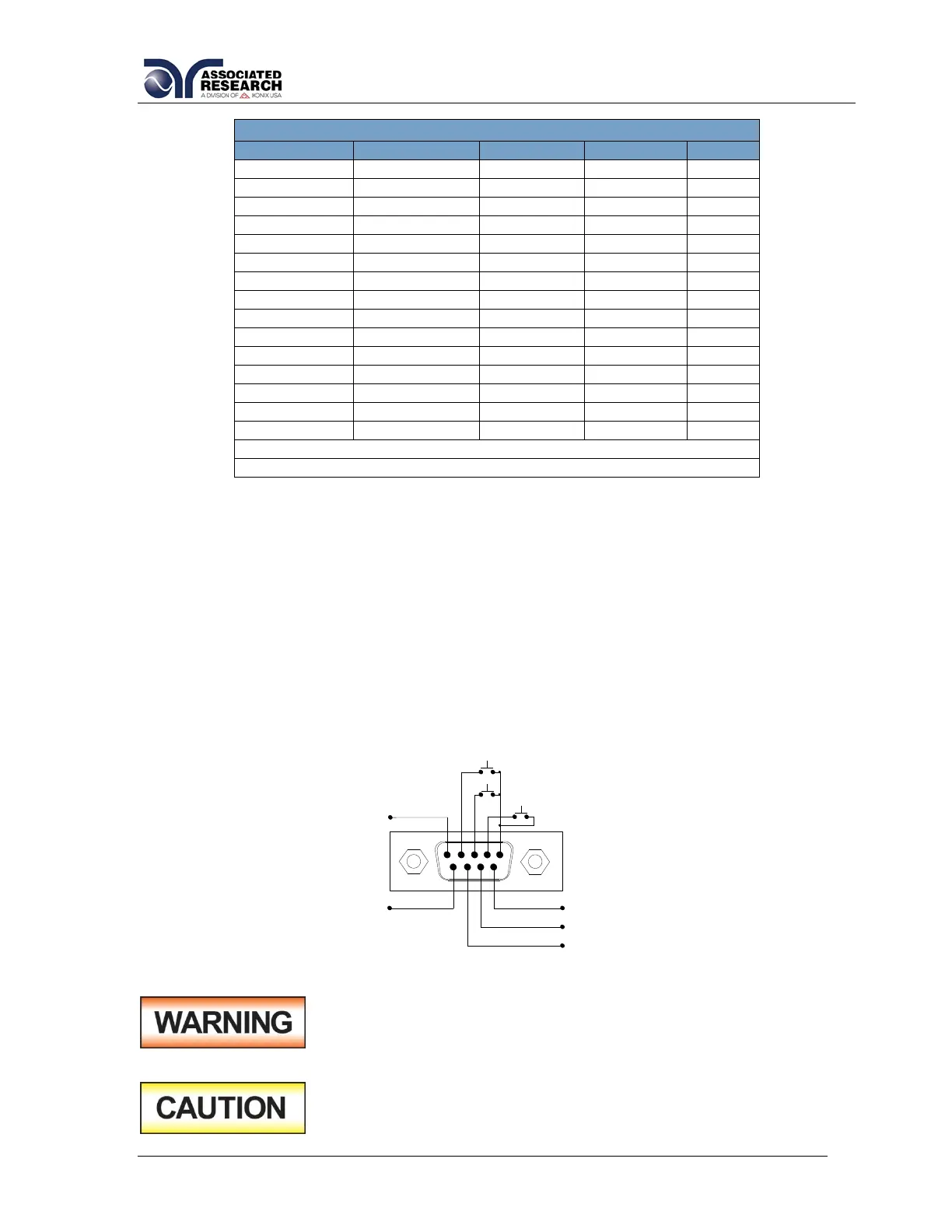

REMOTE FILE SELECT TRUTH TABLE
BIT 4
BIT 3
BIT 2
BIT 1
FILE #
0
0
0
1
01
0
0
1
0
02
0
0
1
1
03
0
1
0
0
04
0
1
0
1
05
0
1
1
0
06
0
1
1
1
07
1
0
0
0
08
1
0
0
1
09
1
0
1
0
10
1
0
1
1
11
1
1
0
0
12
1
1
0
1
13
1
1
1
0
14
1
1
1
1
15
1= Momentary Contact closure between BIT and COMMON
0= No Contact closure between BIT and COMMON
Activating file program functions through the remote connector
selects the file and starts the test that is pre-programmed into
that file.
Do not connect voltage or current to the signal inputs. Applying
voltage to the signal input could result in damage to the control
circuitry.
BIT 2
COMMON
BIT 1
BIT 4
6 9
SIGNAL INPUT
BIT 3
1
5
INTERLOCK
TEST
RESET
