Astoria Core 600 - Page 65

TECHNICIANS' manual 65 of 104

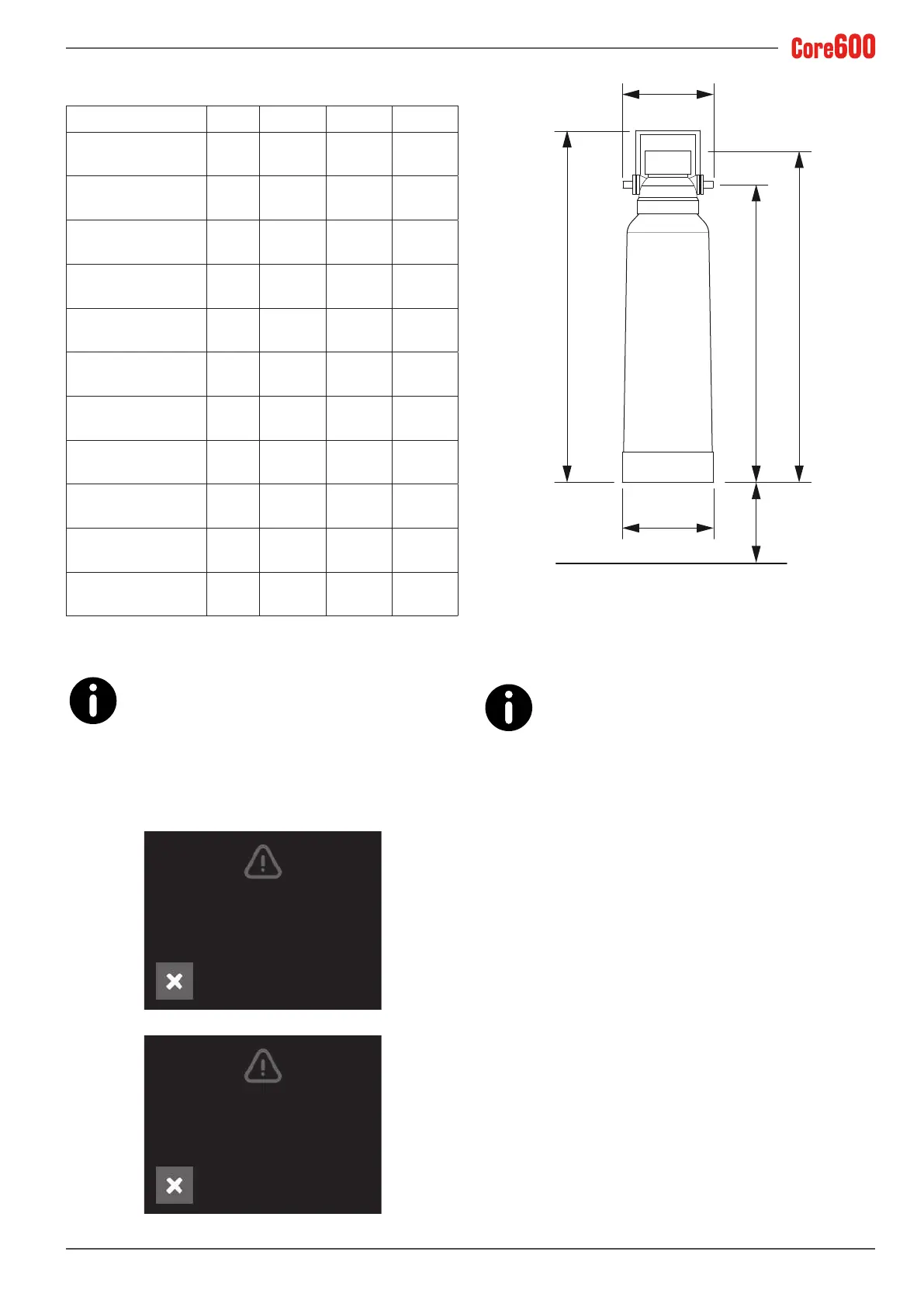

8.4.3 Technical data
Model V M L XL
Connection
coupling type
3/8" 3/8" 3/8" 3/8"
Min.-max. water sup-
ply pressure (bar)
2-8 2-8 2-8 2-8
Water temperature
min. - max. (°C)
4-30 4-30 4-30 4-30
Room temperature
min-max (°C)
4-40 4-40 4-40 4-40
Total height (A)
without bracket (mm)
420 475 500 500
Total height (B)
with bracket (mm)
445 500 530 530
Connection (C) height
(mm)
370 425 450 450
Distance from the
oor (D) (mm)
65 65 65 65
Filter head width (E)
(mm)
125 125 125 125
Filter cartridge diame-
ter (F) (mm)
115 130 145 145
Weight (kg)
(empty/with water)
2.1/3.2 2.4/4.2 3.4/5.9 3.8/6.0
Replace the water lter cartridge at the frequency
indicated by the manufacturer.
Toresetthe"Changelterwarning"orthe"Filtercompletely
worn warning" on the display, follow the instructions in Chap.
9.
Change lter warning
Tel. 00000000000
Filter completely worn warning
Tel. 00000000000
E
F
B
C
D
A
To use and maintain the water lter, follow the in-
dications by the manufacturer.
